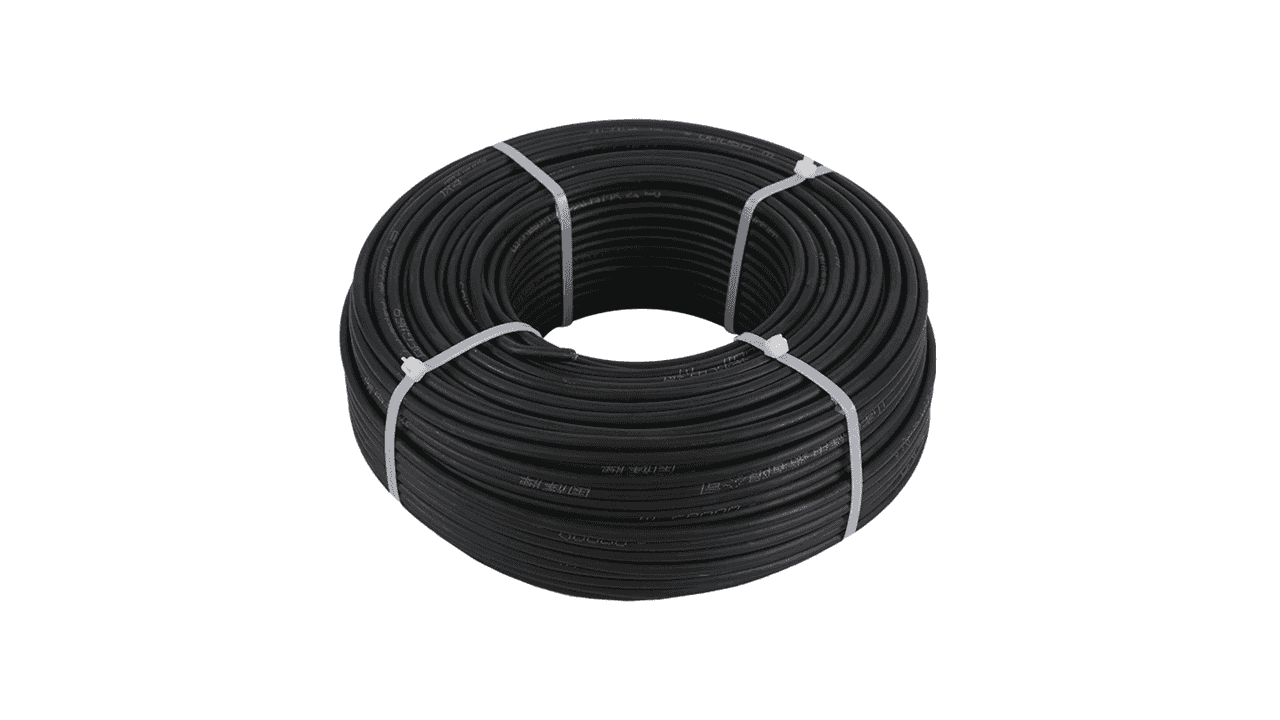

6 mm single-core, black, 100m
100m solar cable with length label
Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up toï ¿ ½1.5kVï ¿ ½between conductors as well as between conductor and earth, and not exceedingï ¿ ½1800V.ï ¿ ½EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous Tï ¿ ½V approved PV1-F cable.
