Complete Kit: Pylontech US5000 4.8kWh + Sunsynk 5kW Hybrid Inverter £2,230 +vat

$3,523.20 incl. VAT

Complete Kit: Pylontech US5000 4.8kWh + Sunsynk 5kW Hybrid Inverter £2,230 +vat

$3,523.20 incl. VAT
Contact Us
Product description

Complete Kit: Pylontech US5000 4.8kWh + Sunsynk 5kW Hybrid Inverter

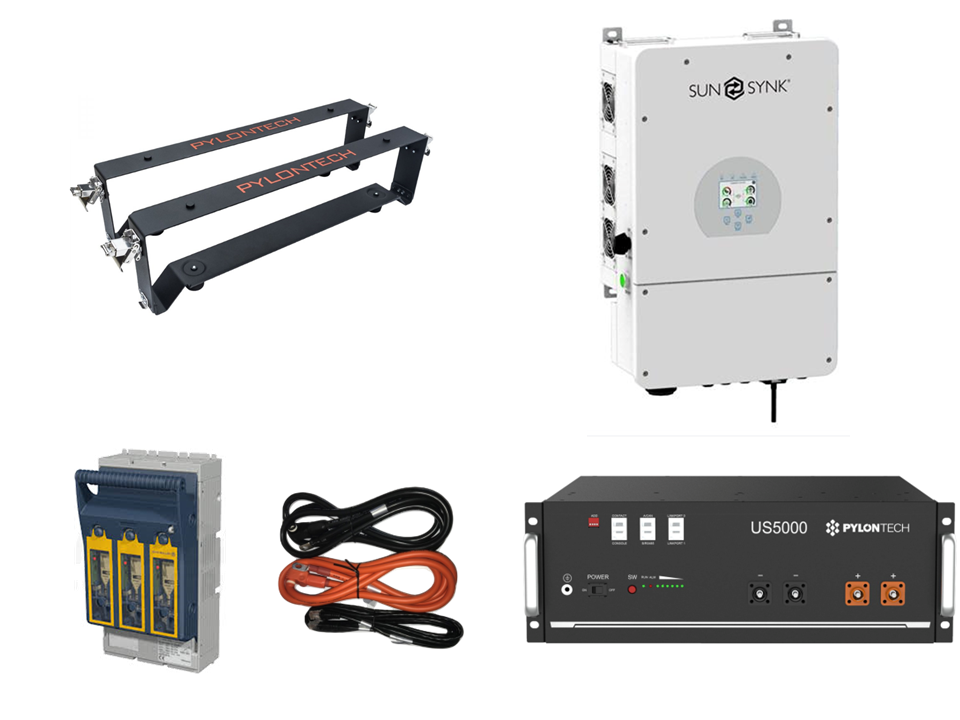

Complete kit includes:

1 x PYLON-US5000
1 x BRACK-US5000
1 x SUN-5.0-ECCO
1 x CAB-PK-PYLON
1 x KETO-00-100A


Pylontech US5000

The next generation of affordable, reliable storage has arrived.



A new battery in the US series from Pylontech. The US5000 is a 48V battery with incredible features to provide a competitive edge in the market.



Product Features

  • Modular design for ease of expansion
  • Higher usable capacity resulting in less battery modules installed
  • Usable capacity 4 560Wh
  • Parallel Capability of up to 16 units
  • Allows for large installation of up to 72.96kWh with no LV Hub
  • Intelligent BMS protecting battery cells
  • 95% DoD with more usable capacity
  • RS485 and CAN compatible
  • Comes with a 5-year warranty extendable
  • Long cycle life and superior performance
  • Compatible with tier 1 inverter brands

To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support

Supplier Part No: US5000

Weight: 38 kg

Battery Type: Lithium Ion

Nominal Energy: 4800 Wh

Depth of discharge: 95.00 %

Voltage: 48 V

Continuous Discharge Rate (Normal Use): 2400 W

Maximum Discharge Rate (5 Minutes): 4800 W

Surge Discharge Rate (15 Seconds): 5808 W

Maximum Charge Rate (5 Minutes): 4800 W



The Sunsynk 5kW ECCO hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator. All of the power of the previous Sunsynk model in a smaller package!

Product Features:


Dual MPPT design
Compatible with most Lithium-ion batteries and Lead Acid batteries
Mobile App for monitoring
IP65 rated
Automatic switching from Grid-Tied to Off-Grid mode
Zero export function
Up to 16 units with the same firmware can be paralleled
Essential and Non-Essential Loads outputs
Comes with the Wi-Fi logger and CT
Compatible with SolarMan App for Monitoring



Rated Power: 5,000 W
Min PPT Voltage: 125 V
Max PPT Voltage: 425 V
DC Startup Voltage: 150 V
DC Shutdown Voltage: 150 V
Max Input Voltage: 500 V
Max DC Power: 6,500 W
Max AC Power (5 Minutes): 5,500 W
Surge AC Power (1 Second): 11,000 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 96.5 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
