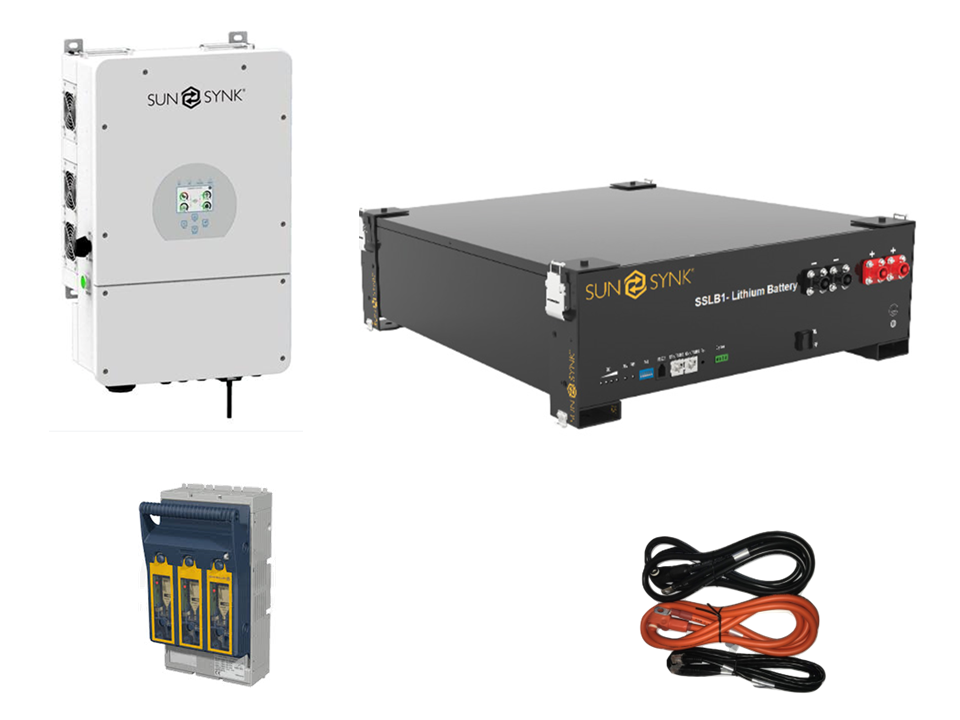

Complete Kit: Sunsynk CATL 5.12kWh + Sunsynk 3.6kW Hybrid Inverter
Complete kit includes:
1 x SUN-BAT-CATL-5.12
1 x SUN-3.6-ECCO

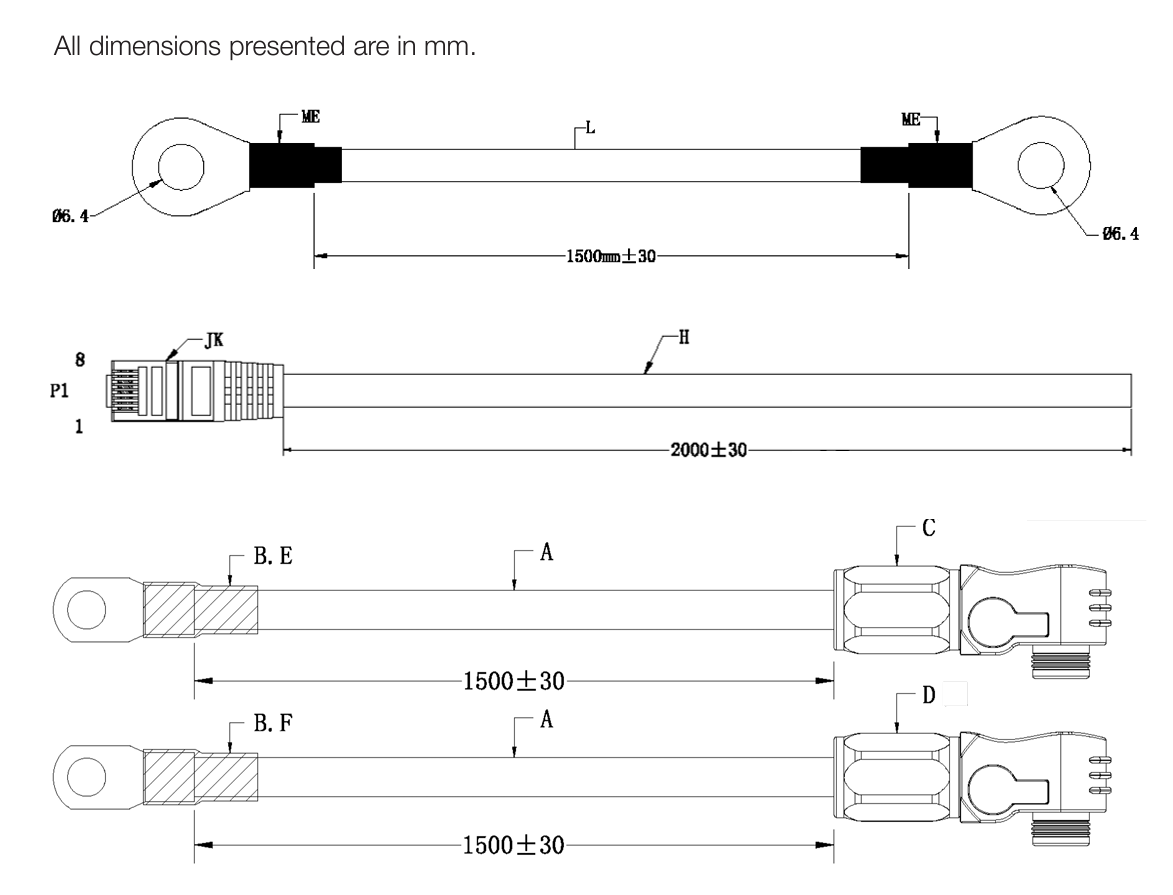

1 x SUN-CABLE-PACK
1 x KETO-00-100A
Sunsynk 3.6Kw Inverter Data Sheet
Sunsynk 3.6Kw Inverter Installation Manual
Sunsynk 3.6Kw Inverter Warranty
Sunsynk 3.6Kw Inverter G99 Certificate
Sunsynk 5.12kWh Battery Data Sheet
Sunsynk 5.12kWh Battery Manual
Sunsynk 5.12kWh Battery Warranty
Automatic discount £5k+ vat spend: 3%
Automatic discount £7.5k+ vat spend: 4%
Automatic discount £10k+ vat spend: 5%
Product Features
Long life span with an expected life of 10-years
5-year product warranty and 10-year performance warranty
Parallel capability of 16 units
Up to 5 batteries per inverter
100% Depth of Discharge
5.12kW maximum discharge power (C1 rated)
Batteries provide excellent thermal stability and storage and also has a self-monitoring function to detect abnormalities.
IP rating 40
Weight: 47.5 kg
Battery Type: Lithium Ion
Nominal Energy: 5120 Wh
Depth of discharge: 100.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 2400 W
Maximum Discharge Rate (5 Minutes): 4800 W
Surge Discharge Rate (15 Seconds): 9600 W
Maximum Charge Rate (5 Minutes): 4800 W

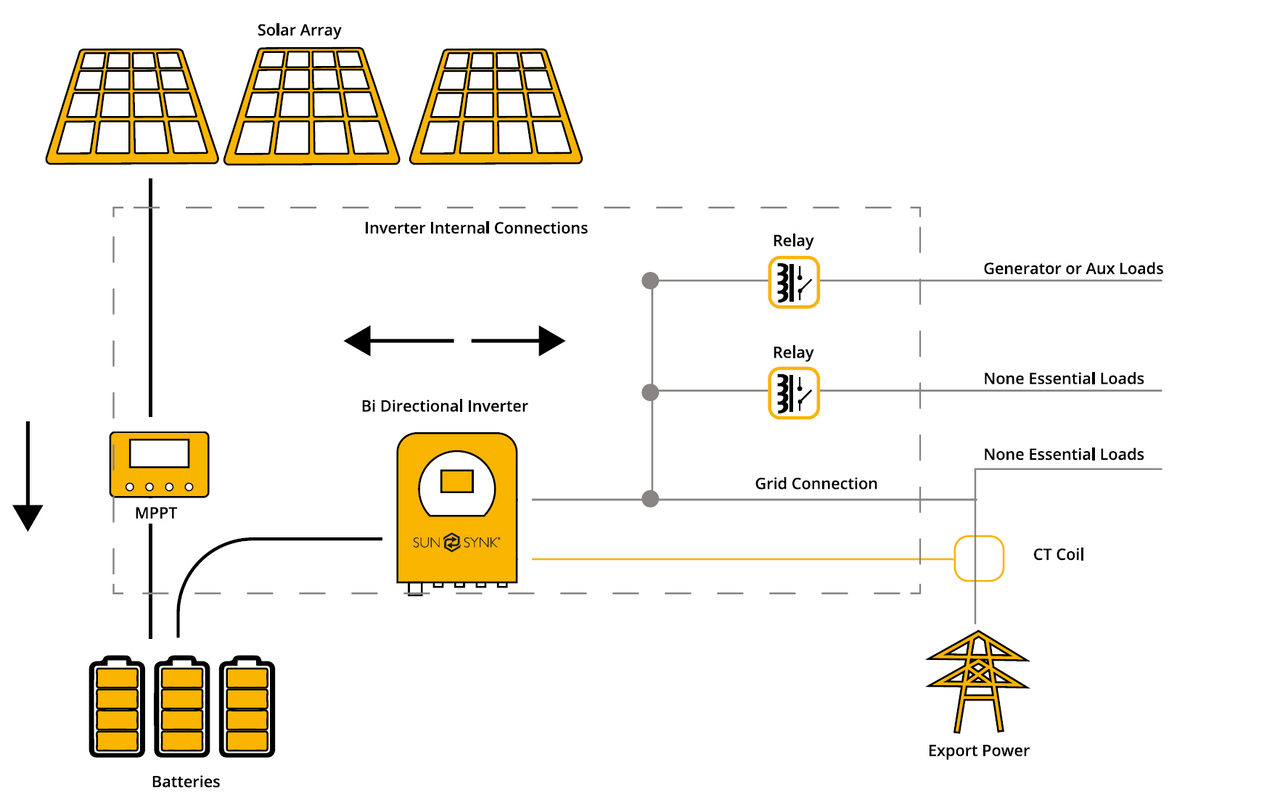

The SunSynk 3.6kW AC ECCO 7kWp Inverter is the next generation of super hybrid inverter with a 7000W MPPT and a rated AC output of 3.68 resulting in a system that can generate sufficient energy in Winter months to offset usage and charge a connected battery. The inverter boasts additional features such as;
Dual MPPT design
Compatible with Lithium-ion batteries and Lead Acid batteries
Up to 50kWh battery pack
5yr warranty as standard
IP65 rated
Anti-islanding protection
Fully programmable power export
Automatic switching from Grid-Tied to Off-Grid mode
Up to 16 units with the same firmware can be paralleled
Rated Power: 3,600 W
Min PPT Voltage: 125 V
Max PPT Voltage: 500 V
DC Startup Voltage: 150 V
DC Shutdown Voltage: 125 V
Max Input Voltage: 500 V
Max DC Power: 7,000 W
Max AC Power (5 Minutes): 3,960 W
Surge AC Power (1 Second): 5,400 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 99.9 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
Please note that we are still waiting for Sunsynk to adjust the existing documentation so that it is specific to this ECCO range. This process is underway and we will add all relevant documents to the documents tab below as they are received from the manufacturer. If you require a specific document which is not currently available please contact us for assistance.
