Complete On or Off Grid Sunsynk 3.6kw kit: 9 panel 4kw solar & 10.24kwh battery storage with choice of panels £4,336 +VAT

£5,203.20 incl. VAT

Complete On or Off Grid Sunsynk 3.6kw kit: 9 panel 4kw solar & 10.24kwh battery storage with choice of panels £4,336 +VAT

1 Review
£5,203.20 incl. VAT
Contact Us
Product description
9 x panel 4kw solar & 10.24kwh battery storage with choice of panels

Typical summer day expected daily generation: 20kw
Typical winter day expected daily generation: 4.kw

Battery storage charge/discharge rate: up to 3.6kwh

Pdf free icon Sunsynk 3.6Kw Data Sheet

Pdf free icon Sunsynk 3.6Kw Installation Manual

Pdf free icon Sunsynk 3.6Kw Warranty

Pdf free icon Sunsynk 3.6Kw G99 Certificate

Sunsynk hybrids have the API to connect to Octopus Agile & Flux to buy electricity at cheap rates and even sell back to the national grid at high rates through SEG payments.

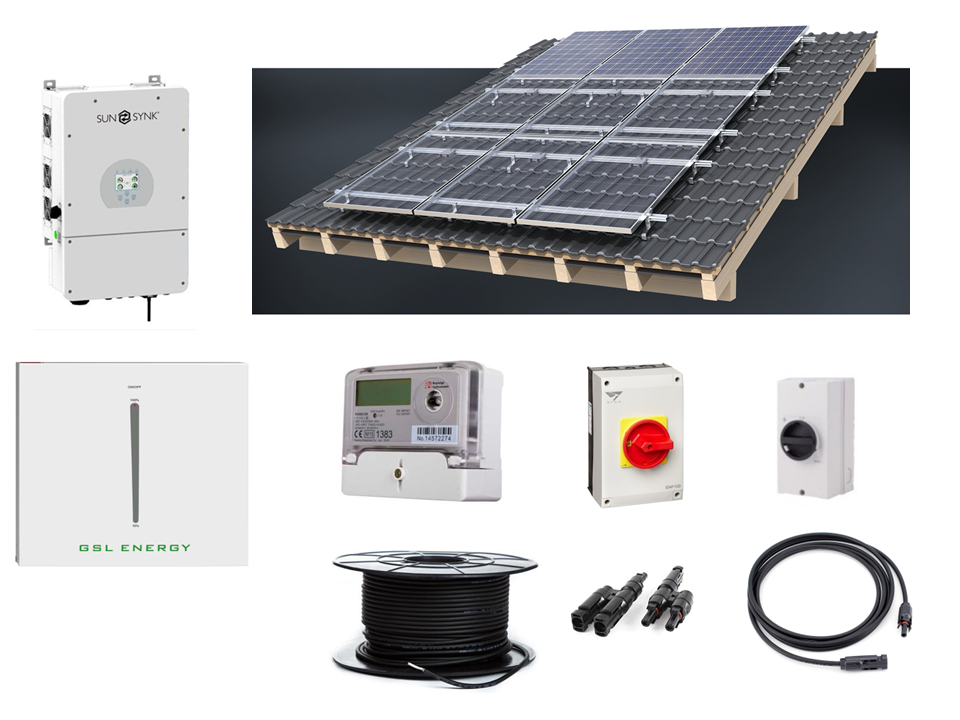

Our complete solar pv & battery storage kit includes:
9 x Solar panels, any solar panels can be selected from our website of up to £65+vat cost price typically 400-495w. Option to upgrade to any panels on our website by just paying the difference.

1 x GSL 10.24kwh storage (For additional batteries please add to your cart GSL 10.24kw battery)


1 x SunSynk On & Off grid 3.6kW AC ECCO 7kWp hybrid Inverter

9 x Mounting equipment for standard pitched roof in portrait orientation. For Alternative mounting requirements please request a quote.

1 x Electrics pack including solar cable, MC4's, pre-terminated cable, AC & DC Isolators, bi-directional meter


The SunSynk 3.6kW AC ECCO 7kWp hybrid Inverter is the next generation of super hybrid inverter with a 7000W MPPT and a rated AC output of 3.68 resulting in a system that can generate sufficient energy in Winter months to offset usage and charge a connected battery. The inverter boasts additional features such as;

Dual MPPT design
Compatible with Lithium-ion batteries and Lead Acid batteries
Up to 50kWh battery pack
5yr warranty as standard
IP65 rated
Anti-islanding protection
Fully programmable power export
Automatic switching from Grid-Tied to Off-Grid mode
Up to 16 units with the same firmware can be paralleled

Rated Power: 3,600 W
Min PPT Voltage: 125 V
Max PPT Voltage: 500 V
DC Startup Voltage: 150 V
DC Shutdown Voltage: 125 V
Max Input Voltage: 500 V
Max DC Power: 7,000 W
Max AC Power (5 Minutes): 3,960 W
Surge AC Power (1 Second): 5,400 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 99.9 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes


GSL 10.24kwh LiFePO4 battery




Key information
  • 10yr battery warranty & 5yr inverter warranty
  • 90% D.O.D
  • 6,000 life cycle
  • Maximum PV input power: 6500W
  • Maximum charge current: 100A

Product Performance
1. This is a multi-function inverter/charger/solar system.
2. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
3. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
4. Compatible to mains voltage or generator power, auto restart while AC is recovering.
5. Users can flexibly match battery capacity, standard battery packages or external batteries.
6. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
7. Integrated design, Easy transportion and installation.
8. Overload/Over temperature/short circuit protection.
9. Our product are CE/ ROSH/ VDE/ MSDS/ UN38.3/ IEC approved, meeting various certification requirements for different countries.


Product Features:
-Safety; LiFePO4 LFP Battery, stable and safe.
Module, pack, system, triple protection.

-Simple
Modular design, single person con carry and install it.
Space saving; 0.15 sqm foot print.

-Interconnection
Global cloud plaform Mobile APP.
Anytime and anywhere.
Open APL, support power internet applications.

Take complete control of your inverter by using the Sunsynk App.


Start by visiting the Apple App Store, or Google play store and searching "Sunsynk Logger". Alternatively, open your prefered web browser and search www.sunsynk.net.


Real time push notifications. For example Instant notification if you have a power cut or you are running on generator, or batteries


Change all settings remotely. Our data logger allows you to change and edit all settings remotely from anywhere in the world, provided that you have an Internet connection.


Complete control over your Hybrid Inverter. Using our data logger gives you complete control over your hybrid inverter. You will gain access to features that cannot be accessed via the inverter control panel, such as the update / upgrade feature to update the inverter operating system yourself.


Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.


Live stats and monitoring. You have access to multiple stats including live monitoring and reporting. Using this app allows you to see peaks in your energy usage, you can then customize your system to work around this to help you save money on your electricity bills.


Reporting. Generate custom reports and graphs to help you monitor and understand how your system is working and where you are saving money.



Real-time monitoring. The majority of our app works in real-time including any changes that you make will instantly update on your inverter.


Sunsynk is integrated with Octopus Agile, Flux & Go. Our data logger platform has been integrated with Octopus Agile. Having access to these rates, you can setup and monitor your charge and discharge figures, this enables you to charge your battery at the cheapest rates. When the price increases your battery discharges and saves you money.
