Dyness Powerbox G2 10.24kWh LV LFP Battery | IP65 | Heating element

Dyness Powerbox G2 10.24kWh LV LFP Battery

#2: DY-POWERBOXG2 Storage Systems - Li-ion Battery Pack

Please view our battery storage information for sizing and selecting the right battery storage system for you.

Dyness PowerBox G2 Datasheet

Dyness PowerBox G2 User Manual

Dyness Compatibility List

Dyness PowerBox G2 Warranty

To view complete Dyness full range please visit our Dyness main page

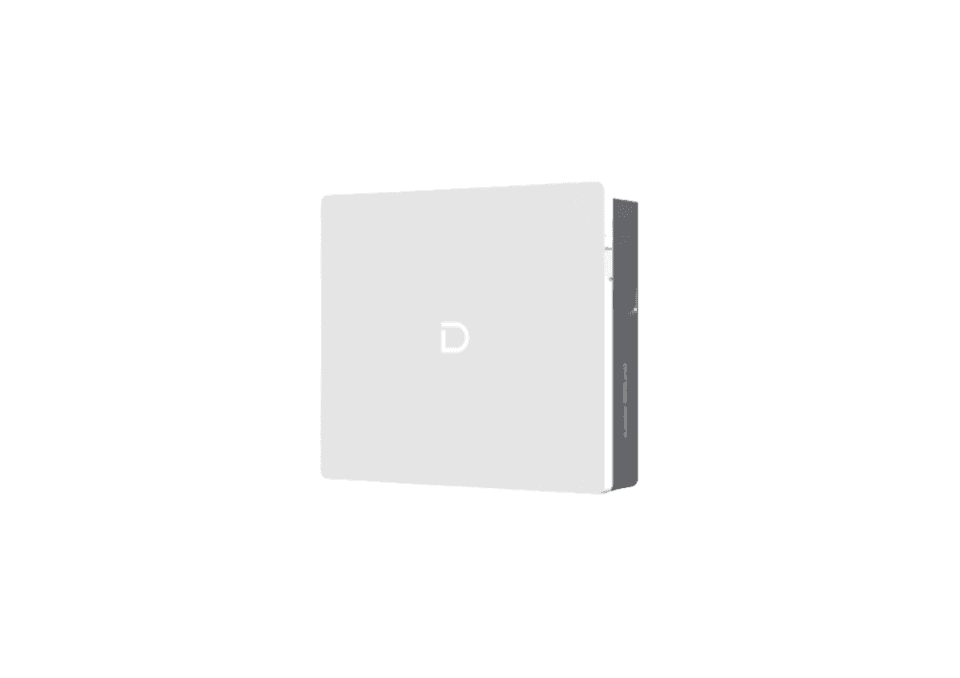

Dyness PowerBox G2

The Powerbox G2 is a low-voltage battery for residential energy storage. Supporting up to 50 parallel units between 10.24-512kWh energy coverage. Measuring a mere 16.5cm, the battery's slim design means a tight installation space should not be problematic.

Features

• Flexible Expansion - Up to 50 parallel units
• Capacity from 10.24 to 512kWh
• Automatic Self-Heating - Charges at -20℃, operates -20°C to 55°C
• Ultra Safe - Smart Fire Suppression, 5-sec Response, Auto Pressure Relief
• IP65 Protection
• Strong environmental adaptability
• Long-term reliability - LFP cells, ultimate cycles
• Warranty: 10 years

Specs

• Weight: 98kg
• Nominal Energy: 10,240 Wh
• Depth of Discharge: 95%
• Voltage: 51 V
• Continous Discharge (Normal Use):  5,120 W
• Maximum Discharge Rate (5 minutes): 10,240 W
• Surge Discharge Rate (15 seconds):  10,240 W
• Maximum Charge Rate: 3,120 W
