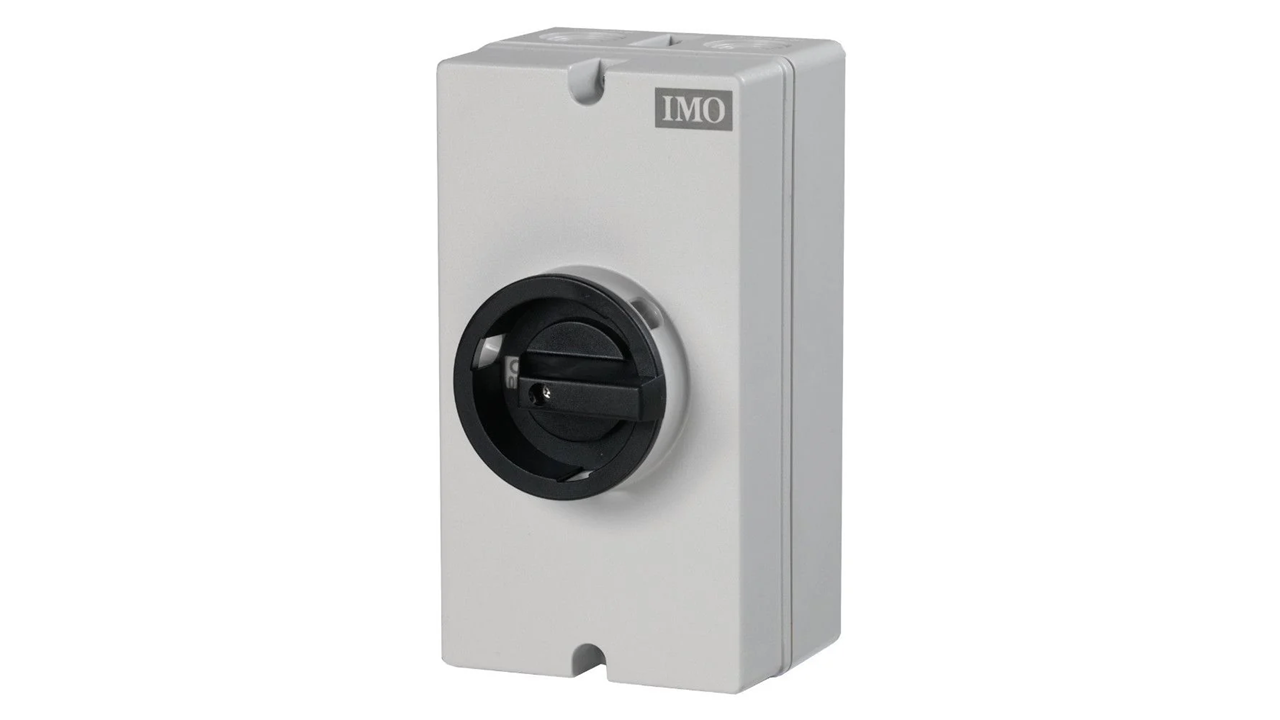

IMO Enclosed DC Switch IP66 4 pole 2 string 16A 800V

Enclosed DC Switch IP66 4 pole 2 string 16A 800V

#2: IMO-SI16-PEL64R-4 Switches - DC Isolators

Data Sheet

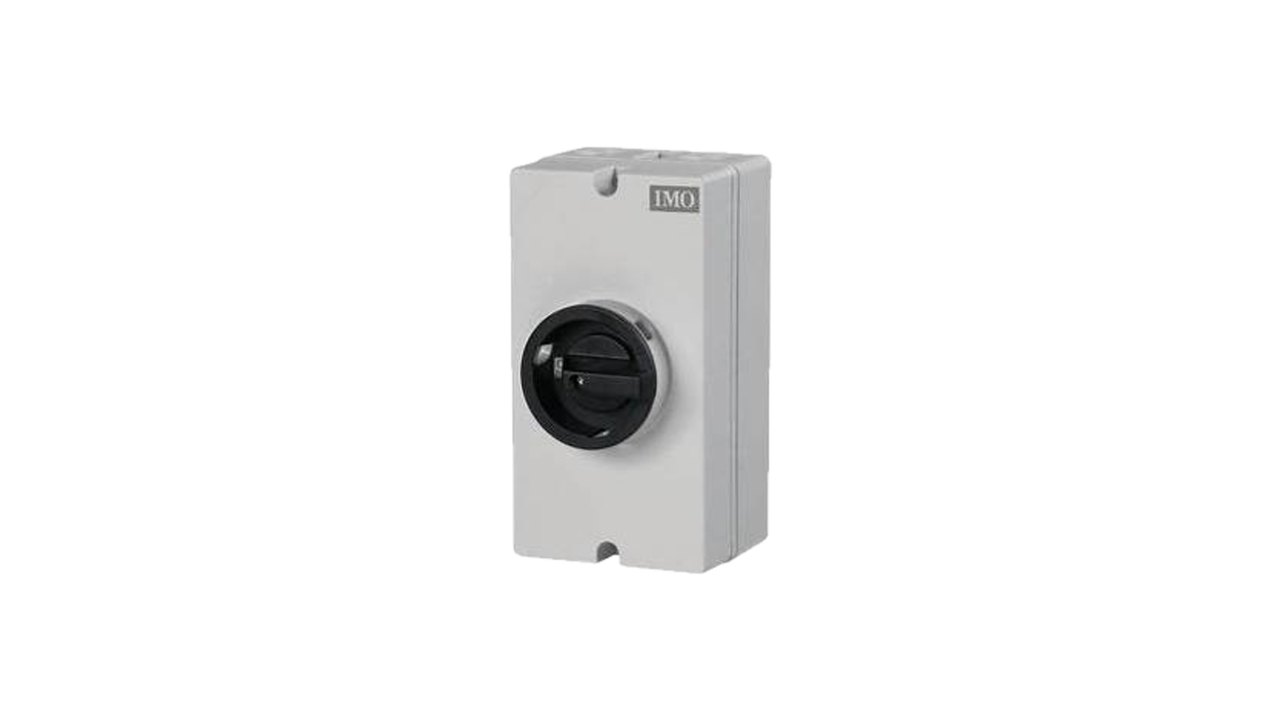

IMO Solar DC Isolator – 4 Pole, 2 String, IP66 Enclosure

Part No: [Insert Part No] | Category: Solar Isolators

🔒 Reliable Safety for PV Installations

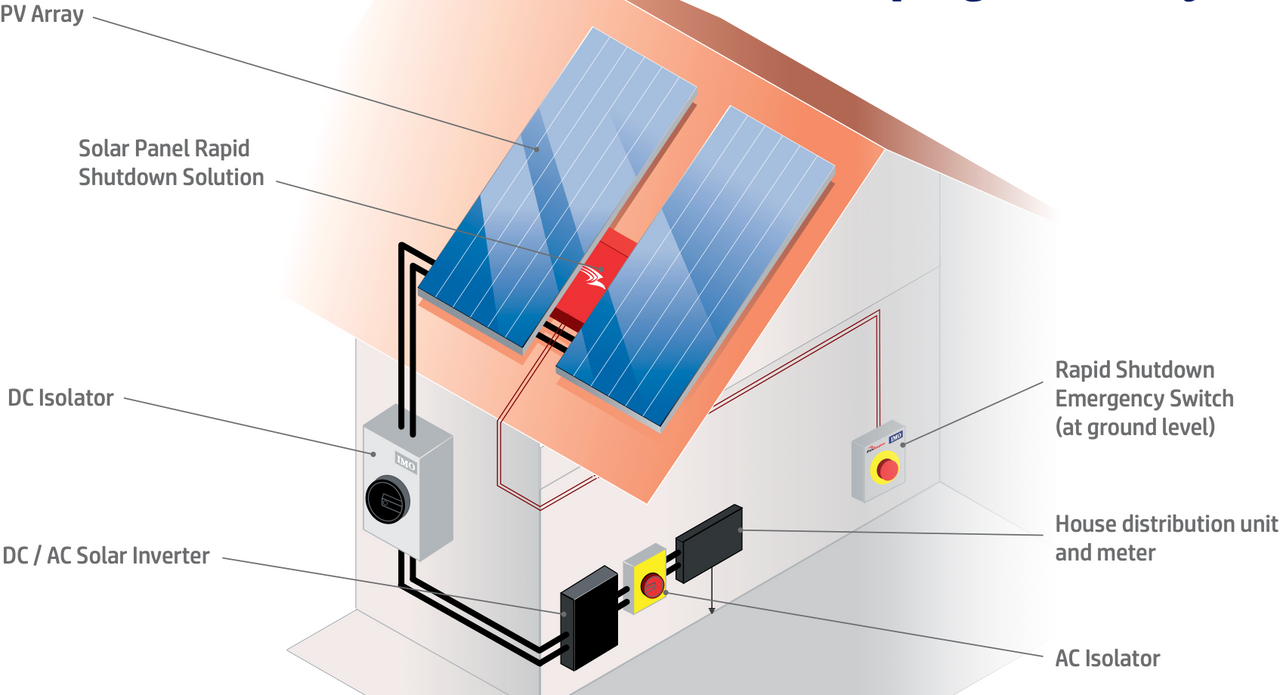

The IMO Solar DC Isolator is engineered to provide safe and reliable isolation of photovoltaic (PV) systems. Specifically designed to disconnect DC/AC inverters from solar panel arrays, this isolator ensures compliance with IEC 60364-7-712 standards, making it a trusted solution for professional solar installations.

Built with IMO’s patented Safelock function, IP66-rated protection, and rapid switching times under 5ms, this isolator guarantees performance, safety, and durability in demanding environments.

⚡ Key Features

• ✔️ 4 Pole, 2 String configuration – designed for PV applications

• ✔️ Fast switching time – less than 5ms for safe and efficient isolation

• ✔️ IP66 enclosure – dust-tight and resistant to water jets

• ✔️ Patented Safelock function – prevents accidental re-engagement under load

• ✔️ Durable design – grey body with black switch for professional installations

• ✔️ Compact dimensions: 180 × 98 × 107 mm

📦 Technical Specifications

• Weight: 0.5 kg

• Poles: 4

• Max Cable Size: 10 mm²

• Max Voltage: 1,500 V

• Rated Current: 16 A @ 600 V | 16 A @ 800 V

• Protection Class: IP66 (weatherproof)

• Application: DC Isolator for PV installations

✅ Why Choose IMO Solar Isolators?

• • Complies with IEC 60364-7-712 standards

  • Designed specifically for photovoltaic safety isolation

  • Trusted worldwide in solar PV installations

  • High-quality engineering from IMO, a recognised industry leader
