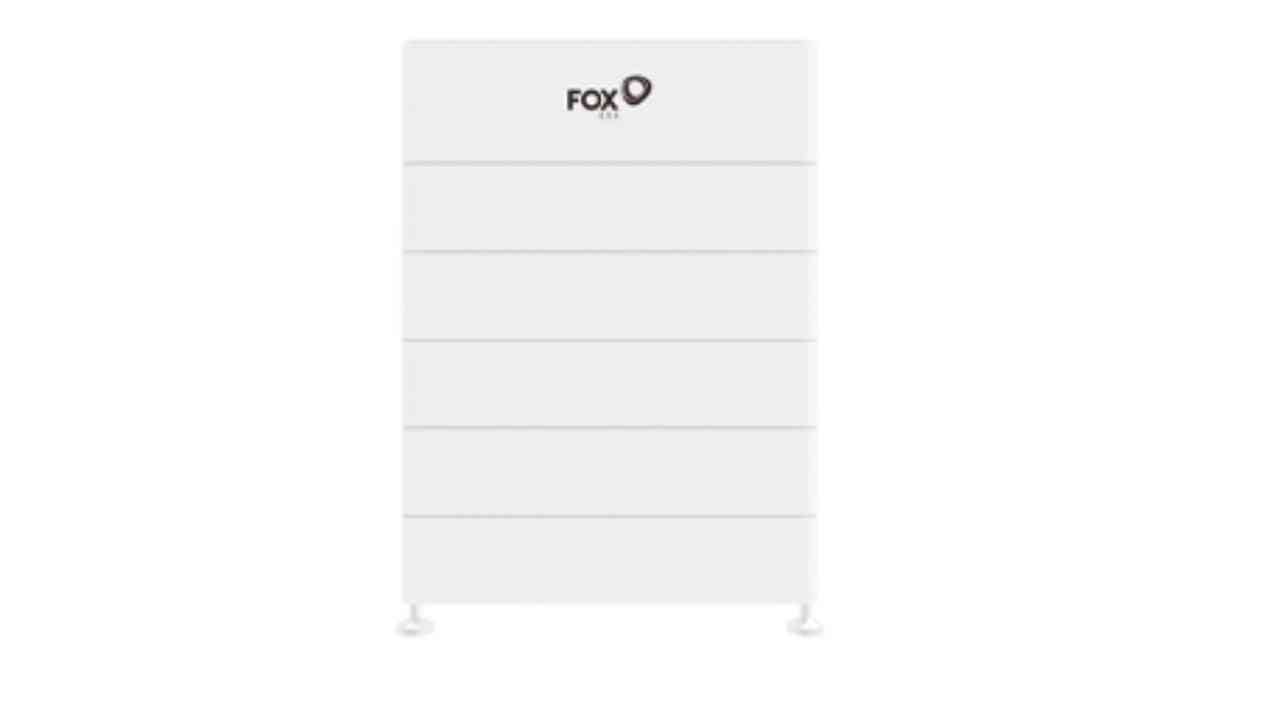

Fox Energy Cube HV ECM2900, 17.28kWh 1x Master 5x Slave
#1: FE-HV-EC-6-2.9-17.4
Please note these are V2 batteries and only compatible with other V2 Cube batteries
Fox Cube Data Sheet
Fox Cube User Manual
Fox Cube Warranty
Suitable for charging from the grid such as Economy 7 & Octopus Go. For detailed explanation of how to maximize Economy 7 essential information to work out which battery storage options is best for you please visit - Understanding Economy 7
Compatible with Fox HV chargers only available on our Fox HV main page
*Collections are not permitted due to health & safety regulations*

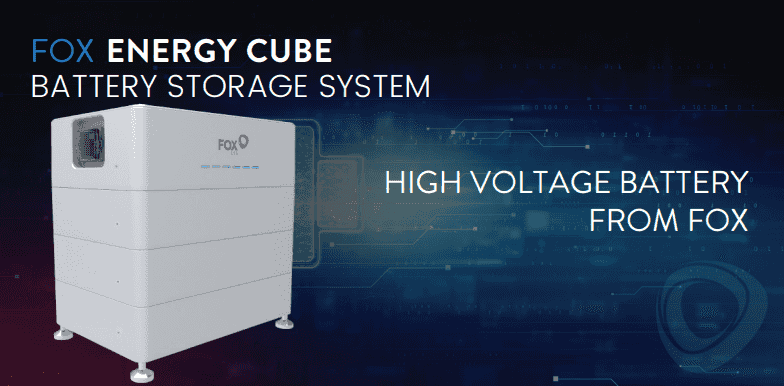

Energy cube is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
-

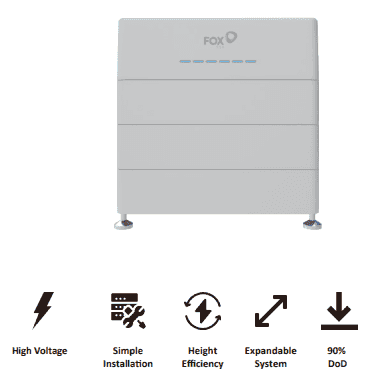

2.88kWh Capacity
- Scalable to 20.16kWh
- 90% Depth of Discharge
- Wide Temperature Tolerence
- Easy Installation
- CAN/RS485 Communication
- High Voltage
The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.
Weight: 196.7 kg
Battery Type: Lithium Ion
Nominal Energy: 17280 Wh
Depth of discharge: 90.00 %
Voltage: 345 V
Continuous Discharge Rate (Normal Use): 17280 W
Maximum Discharge Rate (5 Minutes): 17280 W
Surge Discharge Rate (15 Seconds): 22464 W
Maximum Charge Rate (5 Minutes): 17280 W
