Fox EQ HV EQ4800-L9, 41.93kWh 1x Master 8x Slave
2: FE-HV-EQ-9-4.8-43.2 Storage Systems - Li-ion Battery Pack
Fox EQ4800-Datasheet
Fox EQ4800 Manual
Fox Product Compatibility
Fox EQ4800 Warranty

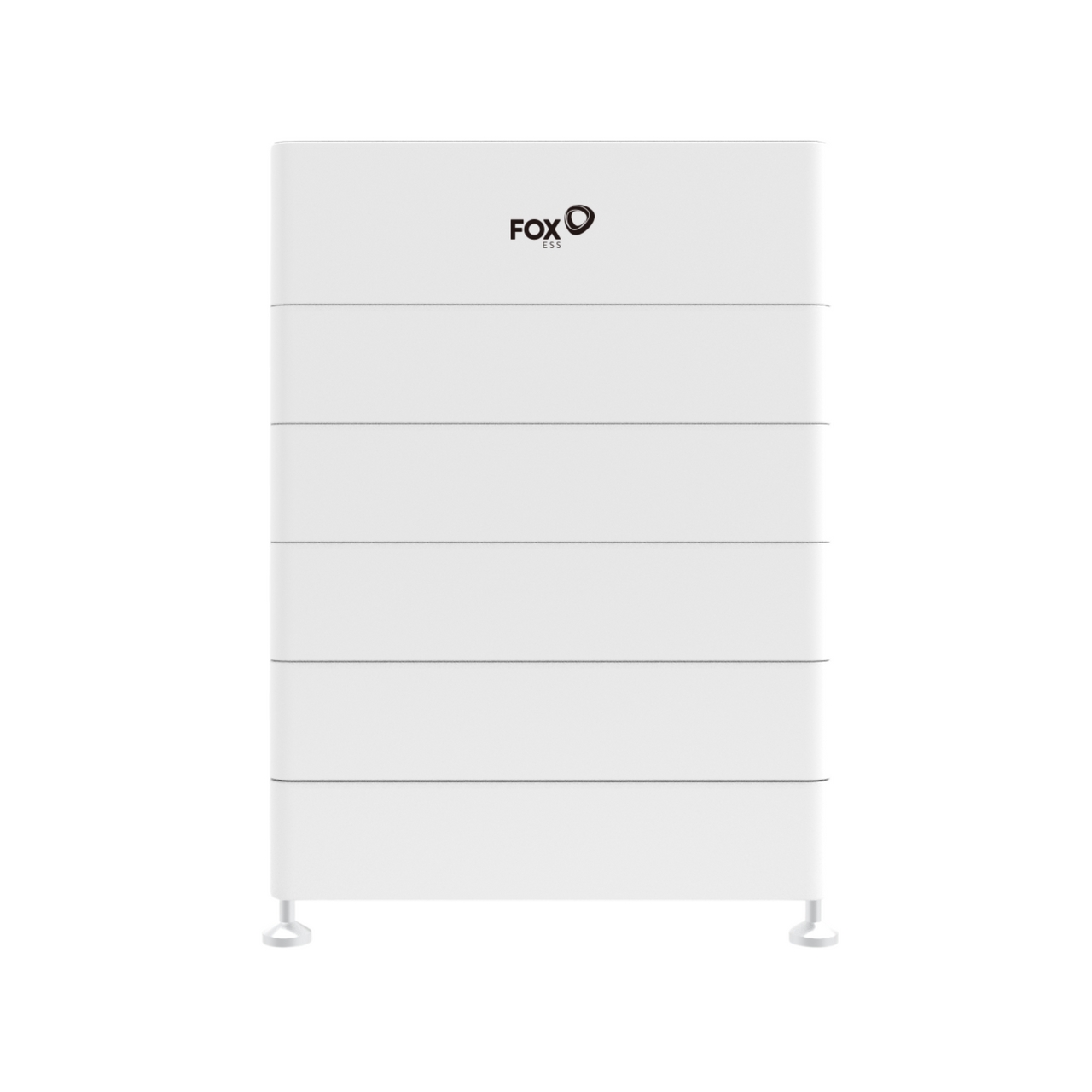

Fox EQ 4.66kWh High Voltage Battery – Scalable Modular Energy Storage
The Fox EQ High Voltage Battery is a high-performance, modular energy storage system designed for maximum flexibility. Ideal for residential or commercial solar setups, it allows you to expand your storage as your energy needs grow, with a maximum capacity of 41.94kWh when stacked.
Important: To activate the 12-year product warranty, your installation must be registered online with Fox. Otherwise, the standard warranty is 5 years.
This Kit Includes
-
1 x Fox EQ4800 4.66kWh HV Battery (Master) – FE-HV-EQM-4800
-
8 x Fox EQ4800 4.66kWh HV Battery (Slave) – FE-HV-EQS-4800
-
Compatible with ECS-4800 batteries
Minimum of 2 modules (1 Master + 1 Slave) required.
Maximum of 9 modules in a stack (1 Master + 8 Slaves).
Key Features
-
Plug & Play Installation: Quick and simple setup for minimal downtime.
-
Modular & Scalable: Expandable to a maximum of 41.94kWh.
-
High Usable Capacity: 4.66kWh per module with 90% Depth of Discharge.
-
Wide Temperature Tolerance: Operates efficiently across a broad range of conditions.
-
Smart Communication: CAN/RS485 enabled for seamless integration with your system.
-
High Voltage Design: Optimised for maximum efficiency and system performance.
Specifications
| Specification |
Value |
| Weight |
374 kg |
| Battery Type |
Lithium Ion |
| Nominal Energy |
41,930 Wh |
| Depth of Discharge |
90% |
| Voltage |
403 V |
| Continuous Discharge Rate |
2,240 W |
| Maximum Discharge Rate (5 min) |
4,480 W |
| Surge Discharge Rate (15 sec) |
5,785 W |
| Maximum Charge Rate (5 min) |
4,480 W |
| Dimensions (W x H x D) |
570 x 1,352 x 380 mm |
Why Choose Fox EQ?
The Fox EQ Battery System is perfect for homeowners and businesses seeking flexible, high-capacity, and reliable energy storage. Its modular design allows you to scale up as your energy requirements grow, while its high voltage architecture ensures maximum efficiency and long-term performance.
Please note: In order to increase the product warranty from 5 to 12 years you must register your install with Fox online to activate the 12 year warranty, otherwise it's 5 years as standard. Please click here for registration page. You can review the warranty document for more information.
