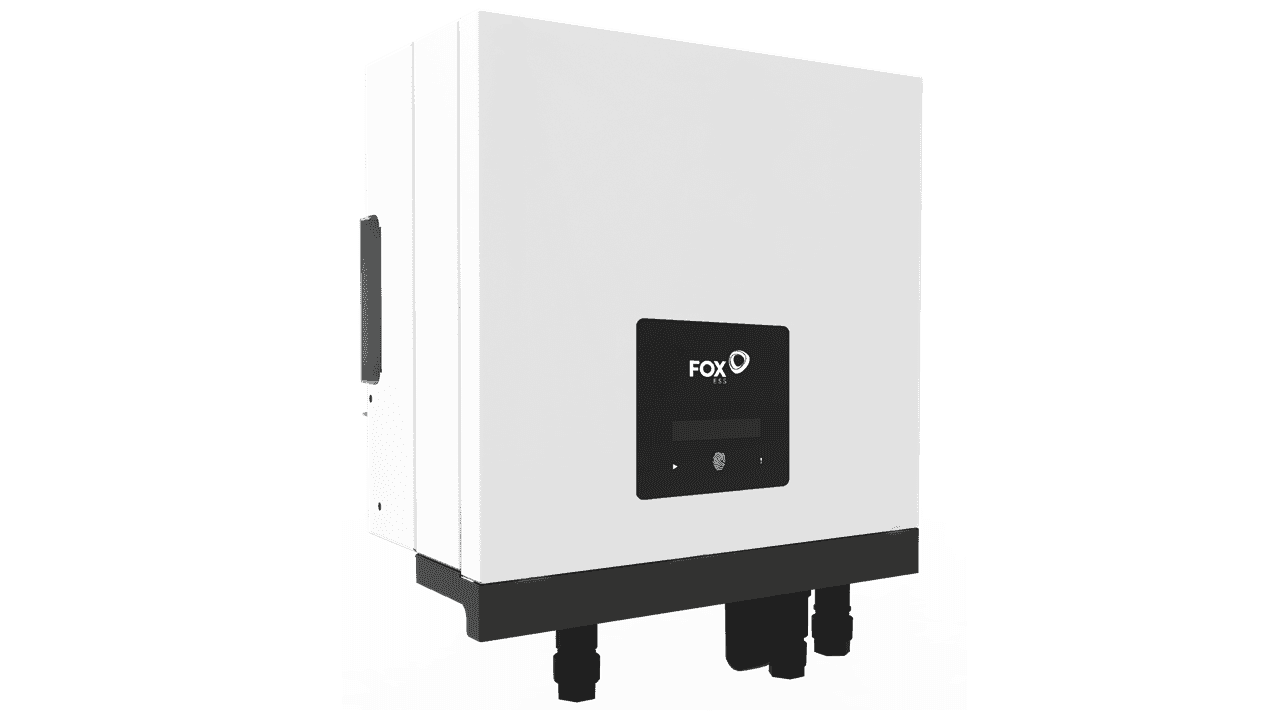

Fox H1 High Voltage 3.7kW Hybrid Inverter £911 + vat

Fox H1 High Voltage 3.7kW Hybrid Inverter
#1: FE-H1-3.7 Storage Systems - Charger-Inverter

 Fox 3.7kW Data Sheet

 Fox 3.7kW User Manual

 Fox 3.7kW Warranty

 Fox 3.7kW G100 Certification

*Collections are not permitted due to health & safety regulations*

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

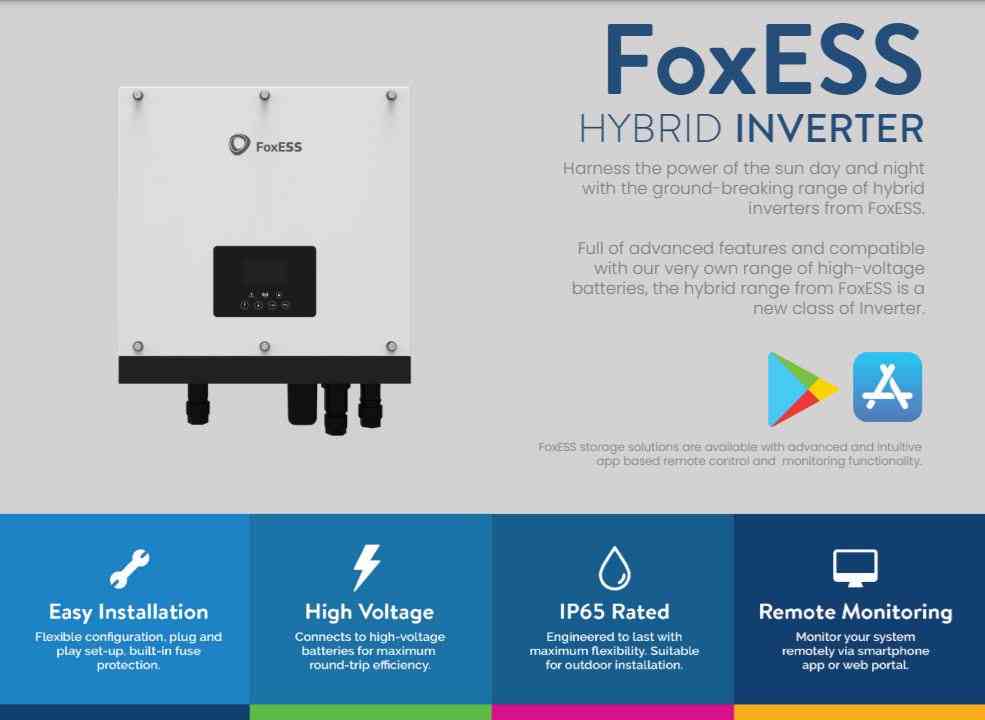

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.

• Uses high voltage batteries HV2600 or Cube
• • IP65 rated - suitable for outdoor installations
  • Remote monitoring via web portal or smartphone

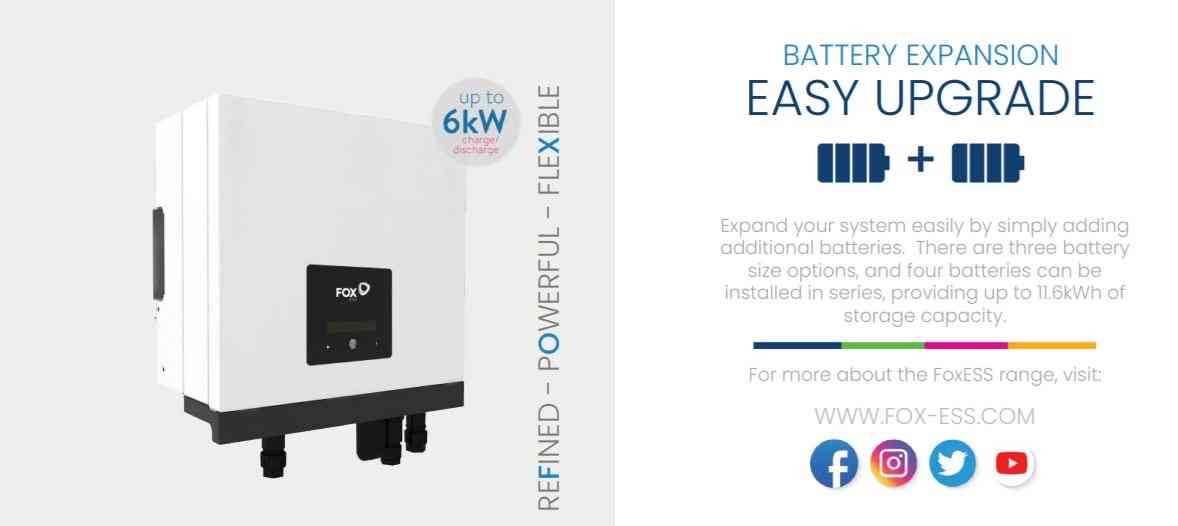

  • Easy to expand battery capacity
  • Dual MPPT - ensure optimal solar production
  • High round-trip efficiency of 97%

CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).

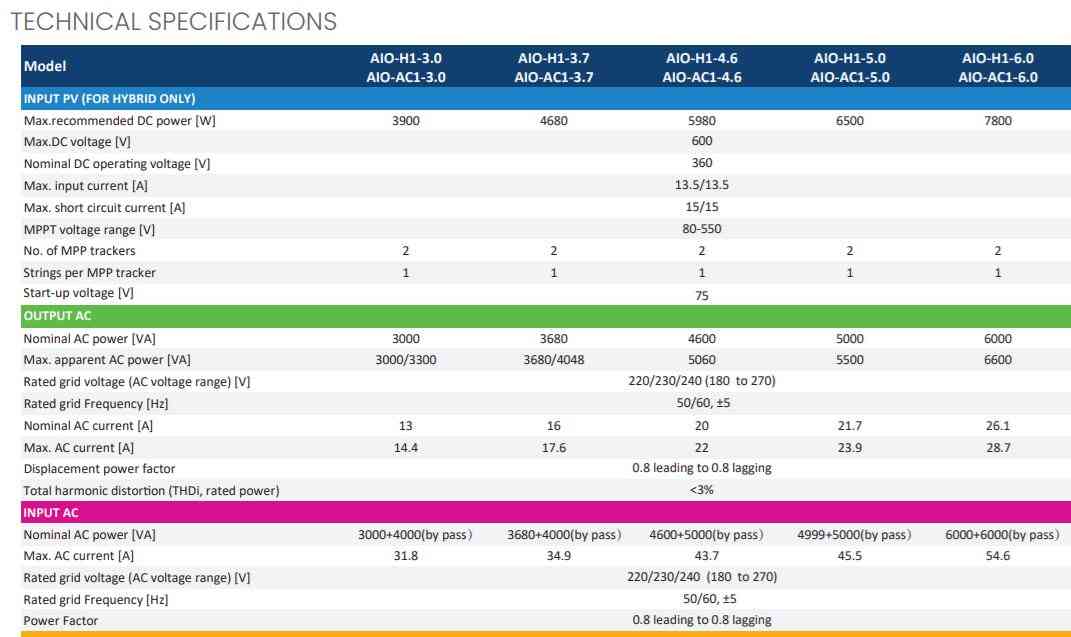

Rated Power: 3,680 W
Min PPT Voltage: 80 V
Max PPT Voltage: 550 V
DC Startup Voltage: 75 V
DC Shutdown Voltage: 75 V
Max Input Voltage:600 V
Max DC Power: 4,680 W
Max AC Power (5 Minutes): 5,000 W
Surge AC Power (1 Second): 6,000 W
Max DC Current: 27 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency:97 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
Warranty: 5 years
