Fox H1 High Voltage 6.0kW Hybrid Inverter £946 + vat

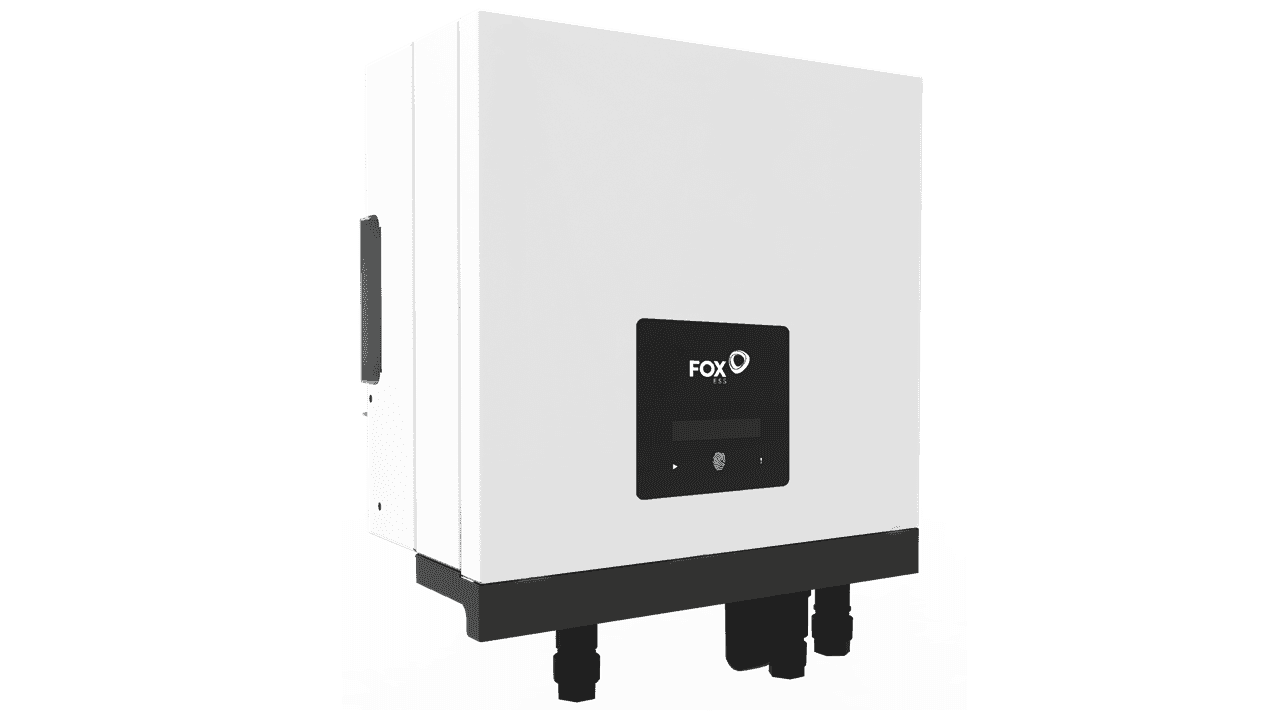

Fox H1 High Voltage 6.0kW Hybrid Inverter
#1: FE-H1-6.0 Storage Systems - Charger-Inverter

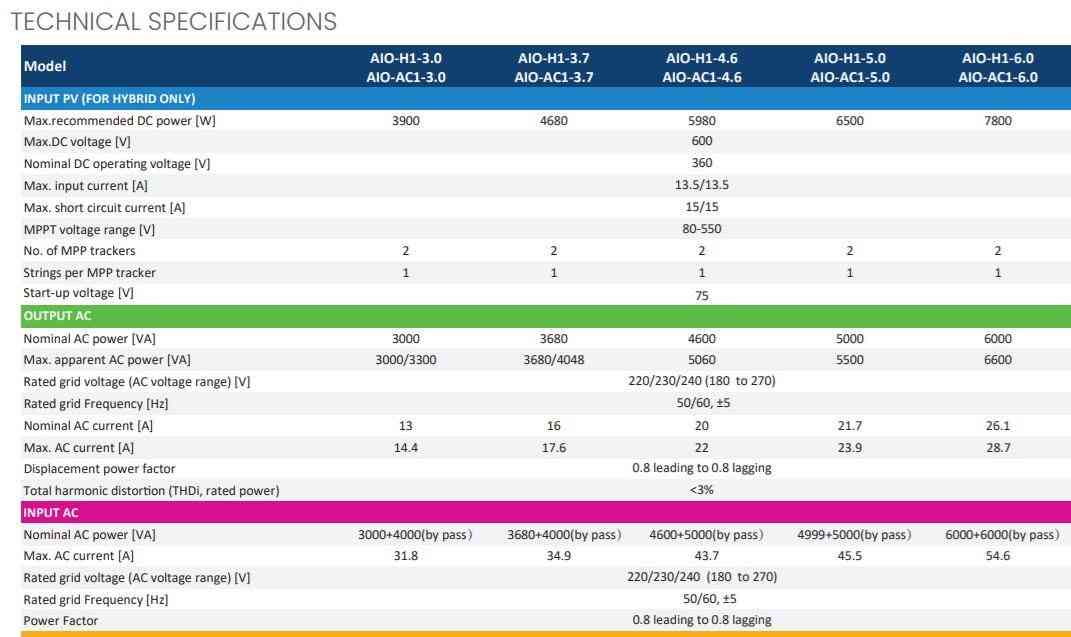

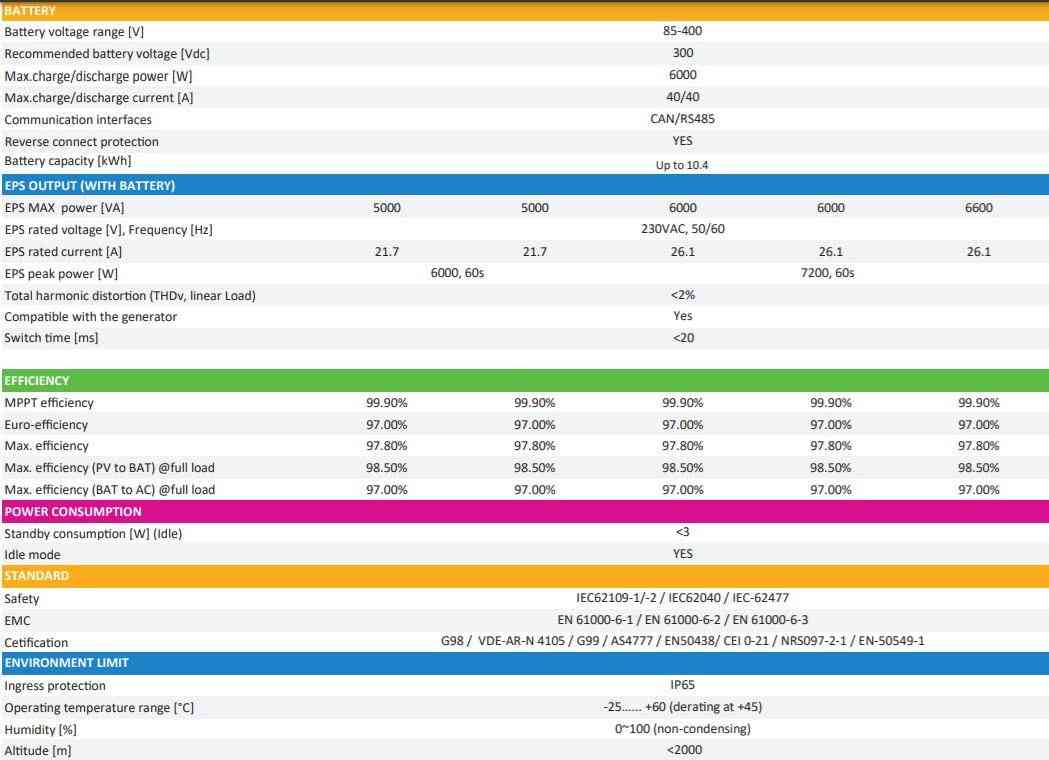

  Fox 6.0kW Inverter Data Sheet

  Fox 6.0kW Inverter User Manual

  Fox 6.0kW Inverter Warranty

  Fox 6.0kW G100 Certification

*Collections are not permitted due to health & safety regulations*

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.

• Uses high voltage batteries HV2600 or Cube
• • IP65 rated - suitable for outdoor installations
  • Remote monitoring via web portal or smartphone
  • Easy to expand battery capacity
  • Dual MPPT - ensure optimal solar production
  • High round-trip efficiency of 97%

  CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).

  Weight: 35.45 kg

  Rated Power: 6,000 W

  Min PPT Voltage: 80 V

  Max PPT Voltage: 550 V

  DC Startup Voltage: 75 V

  DC Shutdown Voltage: 75 V

  Max Input Voltage: 600 V

  Max DC Power: 6,500 W

  Max AC Power (5 Minutes): 5,000 W

  Surge AC Power (1 Second): 6,000 W

  Max DC Current: 27 A

  Max DC Inputs: 2

  Has DC Fuses: 0

  Connector: MC4

  Included Connectors: 4

  Euro Efficiency: 97 %

  Transformer: None

  MPPT Quantity : 2

  Has Integrated DC Switch: Yes

  Warranty: 5 years
