GivEnergy 9.5kWh Li-Ion Battery Gen 3

GivEnergy 9.5kWh Li-Ion Battery Gen 3

#2: GIV-BAT-9.5-G3  #3: 6459

GivEnergy 9.5kWh Datasheet

GivEnergy 9.5kWh Installation Manual

GivEnergy 9.5kWh Warranty

GivEnergy Battery Cable Compatibility Chart

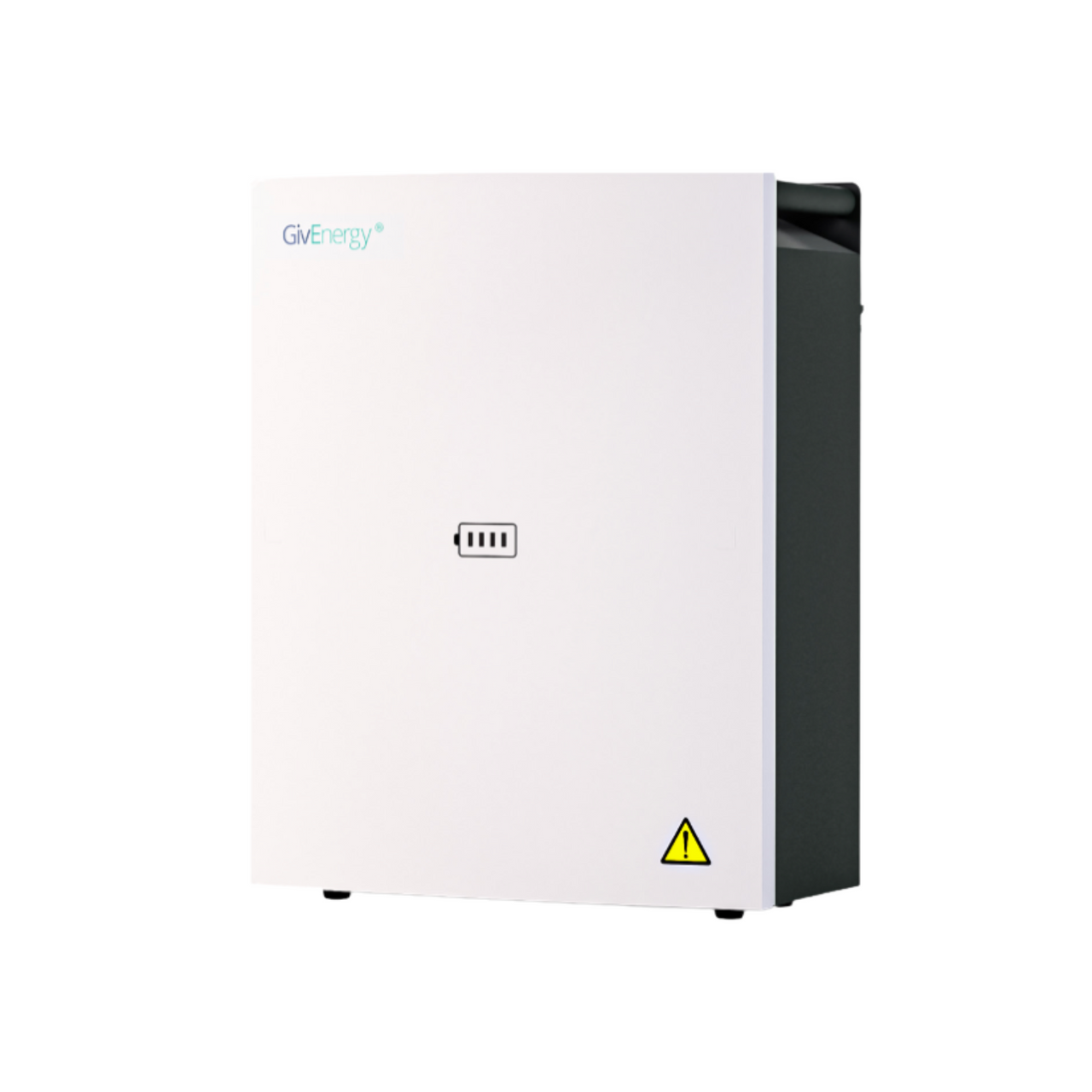

GivEnergy Gen 9.5kWh LiFePO4 Battery – Compact, High-Capacity Energy Storage

The GivEnergy Gen 9.5kWh Battery offers a perfect balance of power, safety, and flexibility for medium to large properties. Using the latest LiFePO4 prismatic cell technology, this battery delivers high capacity in a compact form, making it easy to install in a wider range of locations.

Key Features:

• High Safety: Non-flammable LiFePO4 chemistry, cobalt-free, and 99% recyclable

• Compact & Lightweight: Ideal for retrofit or new installations in limited spaces

• Plug & Play Installation: Quick and easy setup

• Remote Firmware Upgrades: Stay up-to-date without physical access

• Durable & Weather Resistant: IP65 rated for reliable indoor or outdoor use

• Flexible Energy Use: 100% Depth of Discharge maximizes usable capacity

Technical Specifications:

• Nominal Energy: 9.5 kWh

• Weight: 85 kg

• Voltage: 51 V

• Continuous Discharge Rate (Normal Use): 6,144 W

• Maximum Discharge Rate (5 mins): 6,144 W

• Surge Discharge Rate (15 secs): 7,080 W

• Maximum Charge Rate (5 mins): 6,144 W

• Depth of Discharge: 100%

• Warranty: 12 years

• IP Rating: IP65

The GivEnergy Gen 9.5kWh Battery is ideal for homeowners seeking high-capacity, safe, and reliable energy storage, whether for daily self-consumption, solar backup, or scalable multi-battery systems.

Please note: Givenergy online portal login is required to fully commission this system. If you do not already have a login, please contact GivEnergy before installing. Further all installers need to ave attended GivEnergy Installer Training to install this item. A non-trained installer will void the warranty. A Givenergy system must be connected to the internet to benefit from full warranty services.
