Growatt MOD 9000 TL3-X Three Phase Inverter (with DC) - 10 yr warranty £690 + vat

£828.00 incl. VAT

Growatt MOD 9000 TL3-X Three Phase Inverter (with DC) - 10 yr warranty £690 + vat

£828.00 incl. VAT
Product description

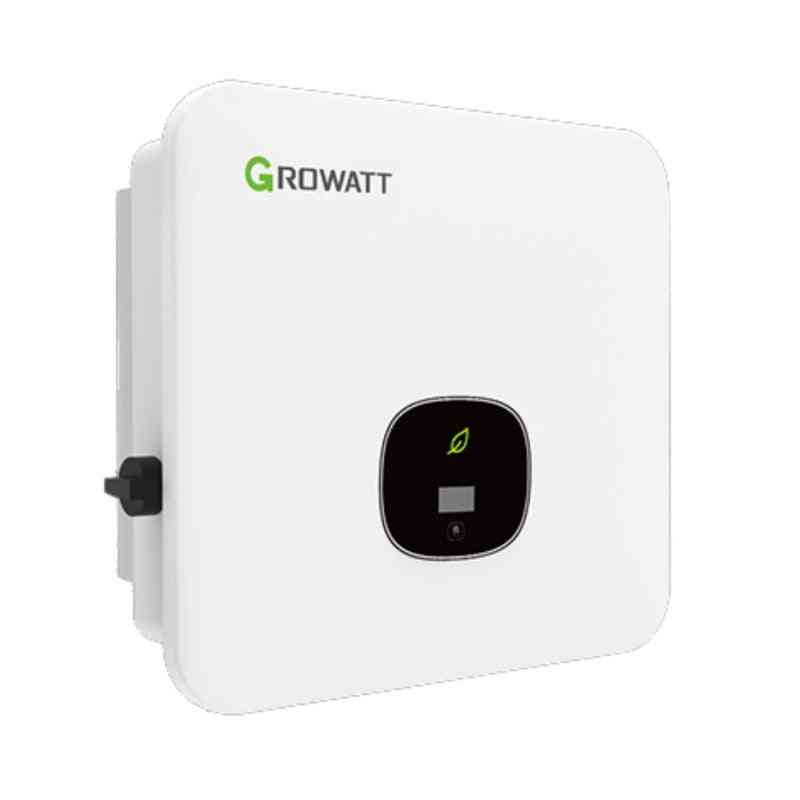

Growatt MOD 9000 TL3-X Three Phase Inverter with DC

#2: Growatt MOD 9000 TL3-X Three Phase Inverter

Pdf free icon Growatt TL3-X Data Sheet

Pdf free icon Growatt TL3-X Manual

Pdf free icon Growatt TL3-X G100 Certification

*Collections are not permitted due to health & safety regulations*

The TL3-X series from Growatt are compact and light three phase inverters. With two MPPTs, the MOD 3-15K TL3-X series can be connected to two strings, and are therefore suitable for connecting two different panel arrays.

The Growatt TL3-X range offer a suitable solution for larger 3-phase residential systems, as well as smaller commercial systems. The compact design enables ease of transportation and installation, whilst the IP66 rating enables flexibility in location.

The ultra-low start-up and wide working voltages enable wider power generation windows.



AC attributes
Max power: 9000W
Max current: 15.0A
Number of phases: 3

DC attributes
Number of MPPT 2
V range of MPPT 140 - 1000V
Max power 13500W
Max Isc current 16A
Max voltage 1100V
Start up voltage 160V

System
Max efficiency 98.60%
IP rating IP66
Weight 14.0kg
Dimensions 425x387x178mm
Communication RS485, USB, (wifi, GPRS,RF,LAN optional)
Warranty (extensions) 10 years
