IMO Stag AC Isolator 4 Pole, 80 Amp

Β£45.00 + VAT

IMO Stag AC Isolator 4 Pole, 80 Amp

Β£45.00 + VAT
Contact Us
Product description

IMO Stag AC Isolator 4 Pole, 80 Amp

#1: IMO-IS4P80 Switches - AC Isolators

#3: 4556

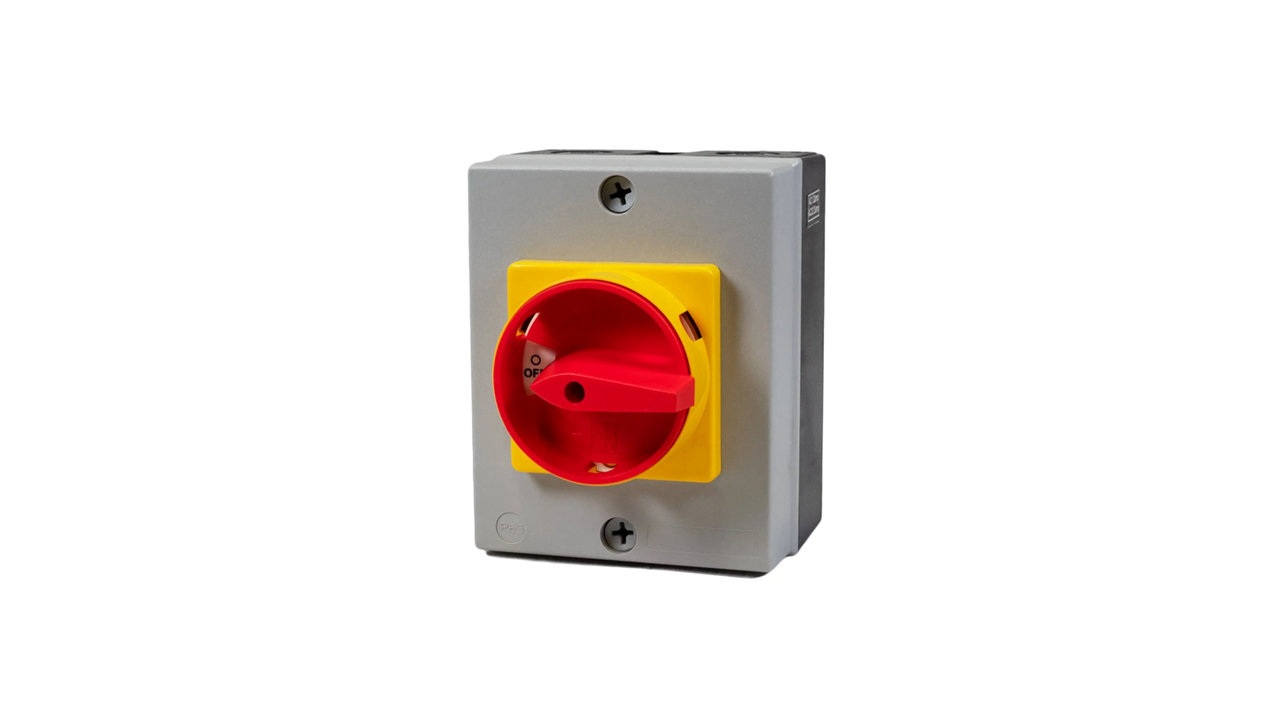

Stag AC Isolator Switch – 4 Pole Enclosed 80A AC Switch

The Stag AC Isolator Switch is a robust and reliable 4-pole 80A AC switch isolator designed to provide safe isolation in residential, commercial, and industrial electrical systems. With its IP65-rated enclosure, lockable rotary handle, and flame-retardant design, it ensures maximum safety and compliance with EN 60947-3 standards.

Ideal for solar PV, HVAC, and general electrical applications, this isolator is engineered for long-lasting performance and easy installation.


Key Features

  • βœ… IP65 Protection Rating – dust-tight and water-resistant enclosure

  • βœ… EN 60947-3 Compliant – meets international safety standards

  • βœ… Lockable Rotary Handle – secure and safe isolation

  • βœ… Flame Retardant Construction – enhanced safety under load

  • βœ… Multiple Gland Knockouts – for flexible installation

  • βœ… External Mounting Points – quick and simple setup

  • βœ… Additional Earth Connection – improves safety compliance

  • βœ… Interlocked Enclosure Lid – prevents access while energised


Technical Specifications

Measurements

  • Height: 240 mm

  • Width: 160 mm

  • Depth (without handle): 120 mm

  • Depth (including handle): 165 mm

Electrical Ratings

  • Rated Power: 18,400 W

  • Poles: 4

  • Max Cable Size: 35 mmΒ²

  • Rated Current: 80 A

  • Rated Voltage (AC): 230 V / 440 V / 690 V

Weight

  • 1.34 kg
