K&N Three Phase AC Switch Disconnector 25A

K&N Three Phase AC Switch Disconnector 25A

#1: KG20-T204-GBA486 Switches - AC Isolators

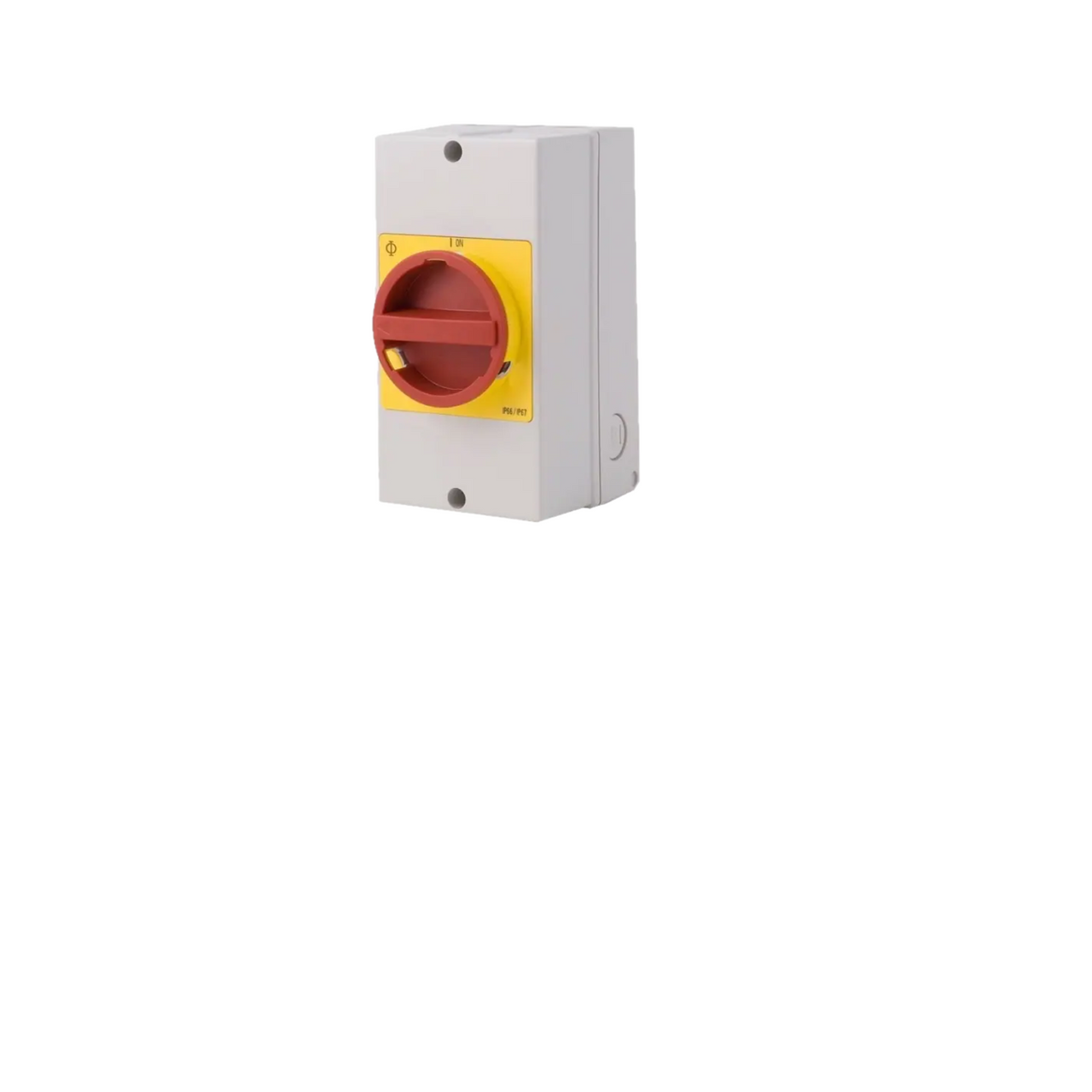

Kraus & Naimer DC Switch – 25A, 4-Pole, IP66

The Kraus & Naimer DC Switch is a durable and reliable isolator, designed for safe disconnection in three-phase AC applications. With its IP66-rated enclosure, robust construction, and lockable handle, this switch is ideal for both residential and commercial solar and electrical installations.

Key Features

• Suitable for three-phase AC connection

• Plastic enclosure with total insulation

• IP66-rated protection for outdoor and indoor use

• Pre-moulded knock-outs for easier cable entry

• Red handle in the OFF position – lockable with padlocks for safety

• Interlocked lid prevents opening while in the ON position

• Grey plate backing for discreet installation

Technical Specifications

• Weight: 0.48 kg

• Rated Power: 17,320 W

• Poles: 4

• Maximum Cable Size: 10 mm²

• Maximum Voltage: 690 V

• Rated Current: 25 A

• Rated Voltage: 400 V

• Dimensions (W x H x D): 100 × 190 × 93 mm
