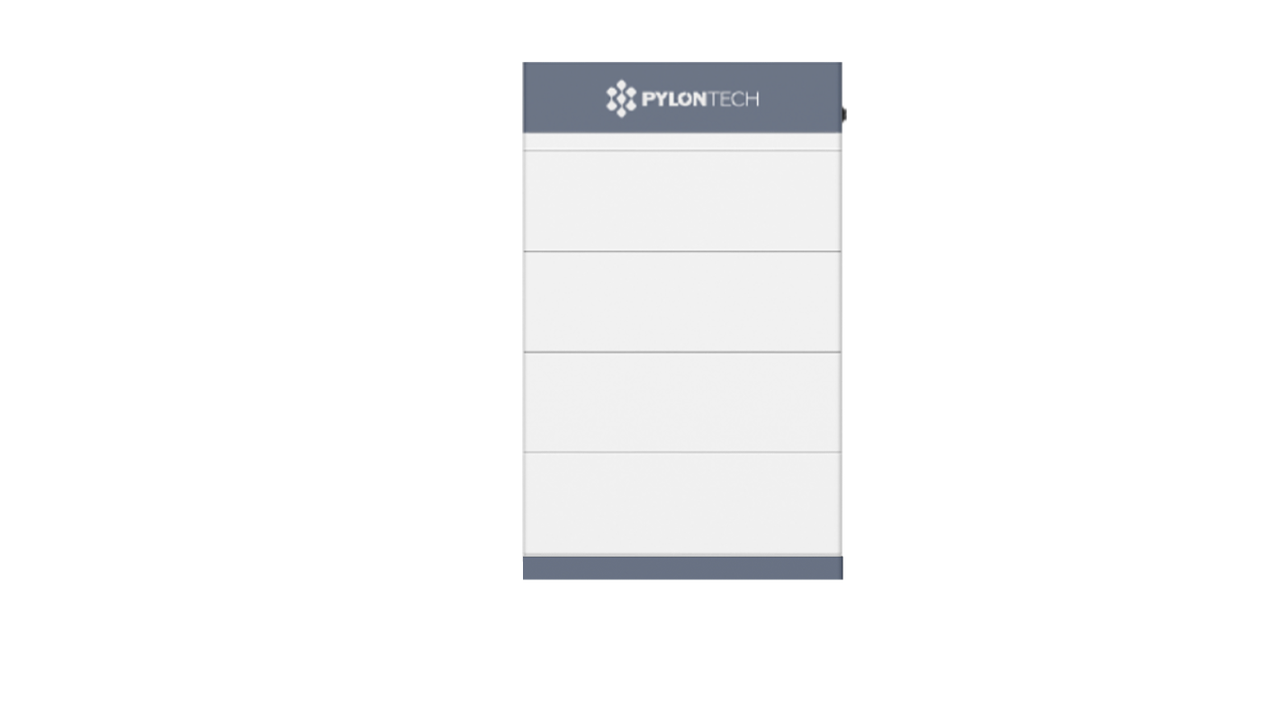

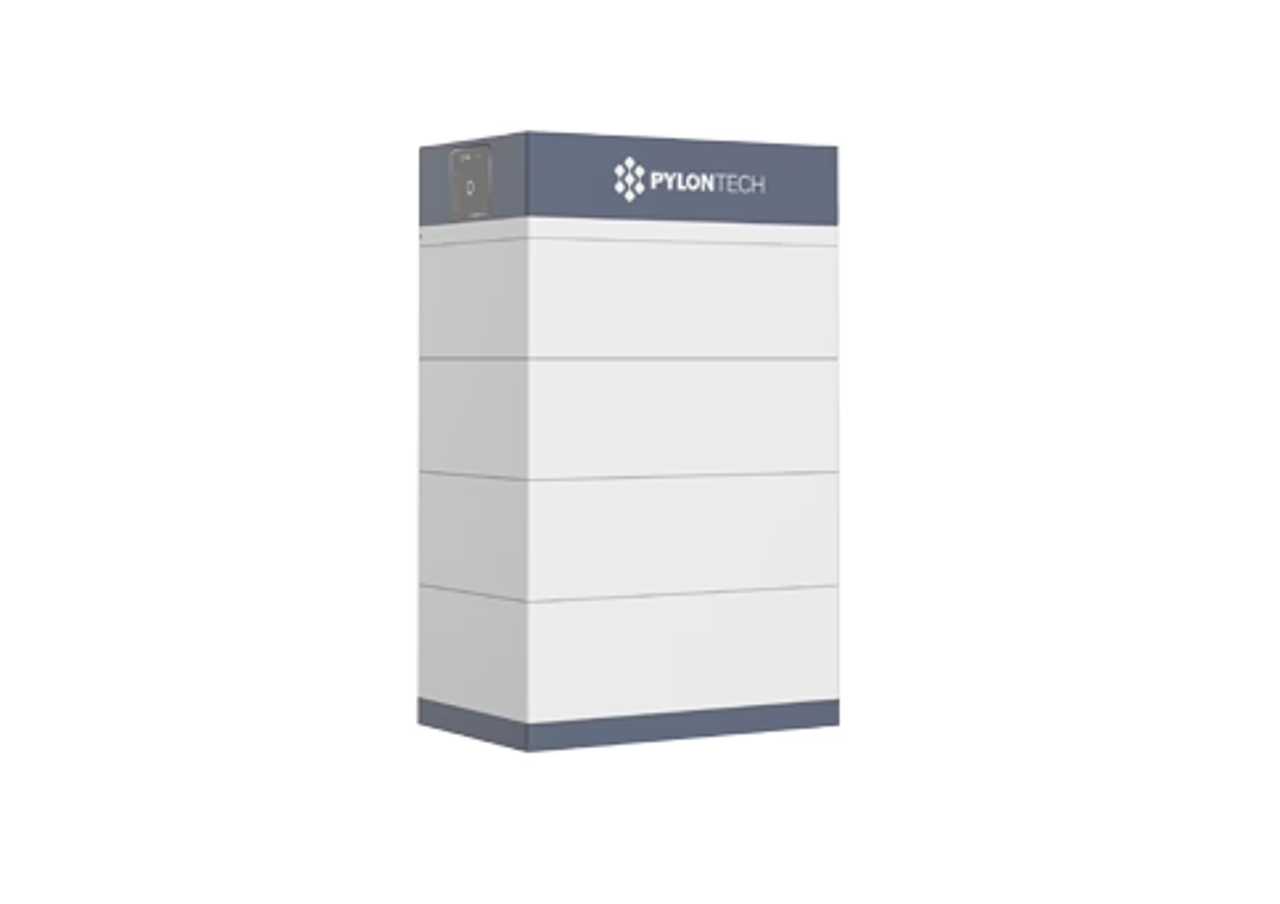

Pylon Force-H3 High Voltage System stack of 4 incl. BMU (20.5 kWh)

Pylon Force-H3 High Voltage System stack of 4 incl. BMU (20.5 kWh)

#2:  PYL-F-H3-BATT-BMU-20.5

Please view our battery storage information page for sizing and selecting the right battery storage system for you.

Pylon Force-H3 Datasheet

Pylon Force-H3 Installation Manual

Pylon Force-H3 Warranty

*Collections are not permitted due to health & safety regulations*

Pylontech Force H3

Pylontech's latest generation high-voltage battery storage system (LiFePO4)

This product comprises:

Features

• Easy Install - plug and play

• Scalability - up to 6 x batteries towers can be connected in parallel

• Compatibility -
• 1C rating enables faster charging and discharging
• Globally certified
• Designed for 8000+ charging cycles or 15 years
• Remote monitoring via app

• Compatibility with other well known brands
• Warranty: 10 year standard

Specs

• Weight: 188.2kg
• Nominal Energy: 20,480Wh
• Depth of discharge: 95%
• Voltage: 409 V
• Continuous discharge rate (normal use): 20,840 W
• Maximum disccharge rate (5 minutes): 20,840 W
• Surge discharge rate (15 seconds): 22,258 W
• Maximum discharge rate (5 minutes): 20,480 W
