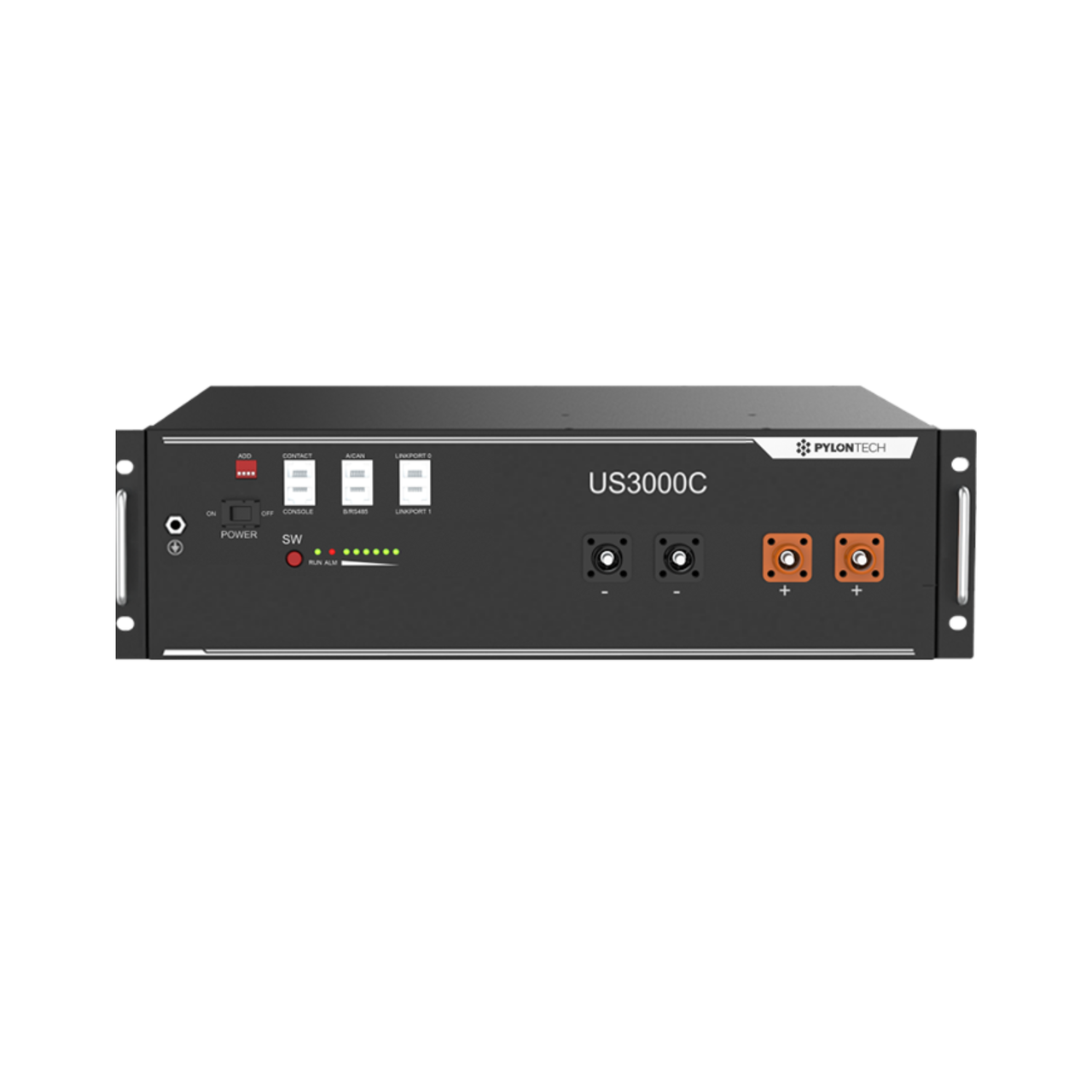

PylonTech US3000C 3.5kWh 95% D.O.D Battery Storage

PylonTech US3000C 3.5kWh Li-Ion Solar & wind Battery Storage D.O.D of 95%

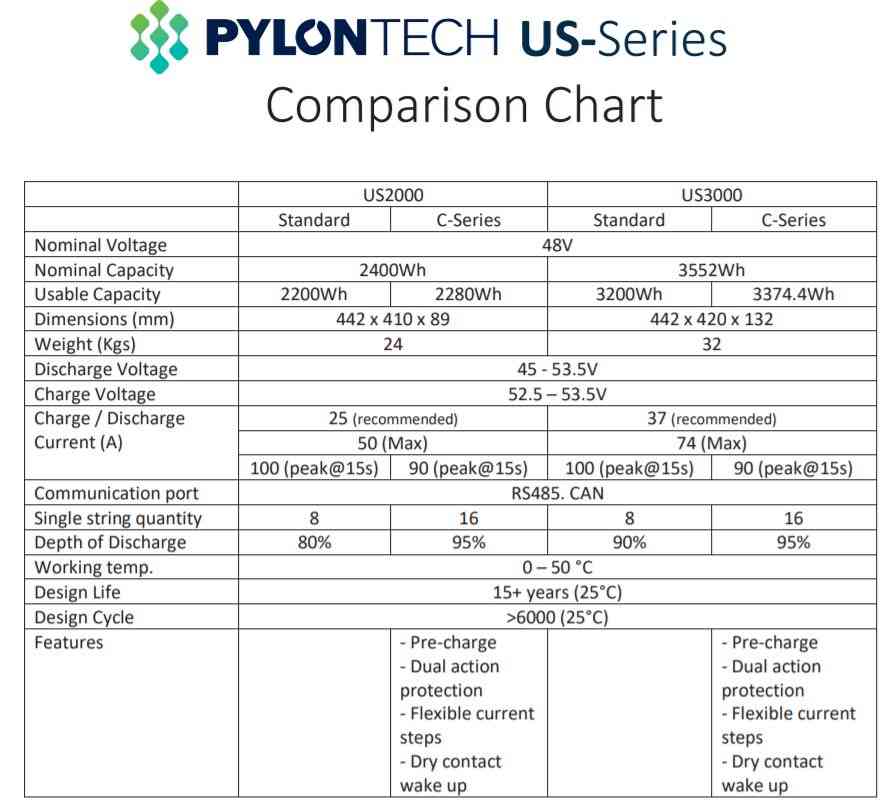

Please note that US2000/C, US3000/C & US5000/1C are all compatible with each other.

#2: PYLON-US3000C
#4: US3000C
#17: Pylon 3.5kwh US3000 C Li-ion Battery

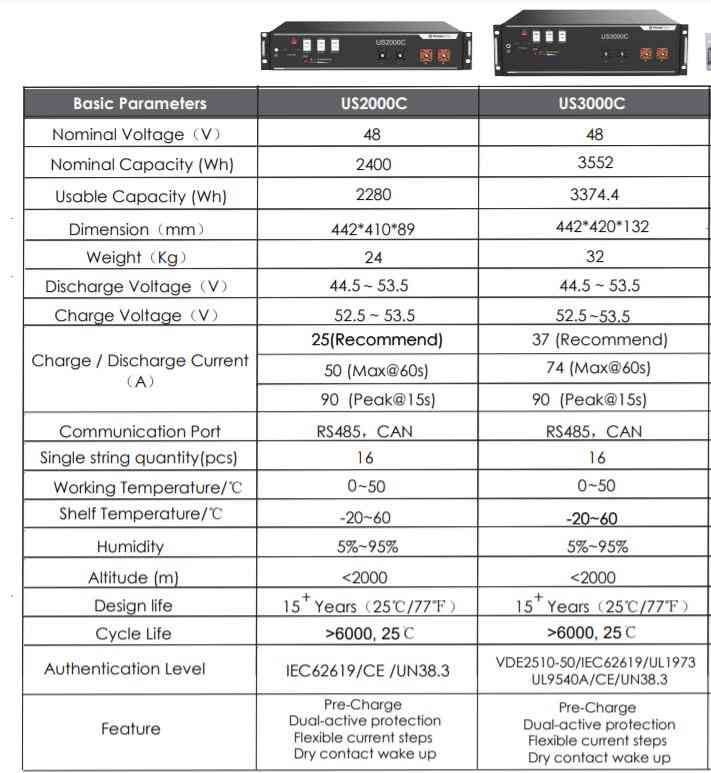

US3000C Datasheet

US3000C Installation Manual

US3000C Warranty

To view complete Pylon kits please visit our Pylontech main page

Battery to battery connecting cables included as standard

The next generation of affordable, reliable storage has arrived. Pylontech's US2000B and US3000 batteries have been a frequent choice for prudent installers who value reliability, wide compatibility and ease of use. Now Pylontech have released an enhanced version of both 2.4kWh and 3.5kWh Li-ion units with impressive features.

In a nutshell the new US2000C and US3000C batteries offer a higher depth of discharge - now a staggering 95% - and 16 units can be installed in parallel - double the capacity than before!

The US3000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.

The Pylontech US3000C has an incredible DoD of 95%.

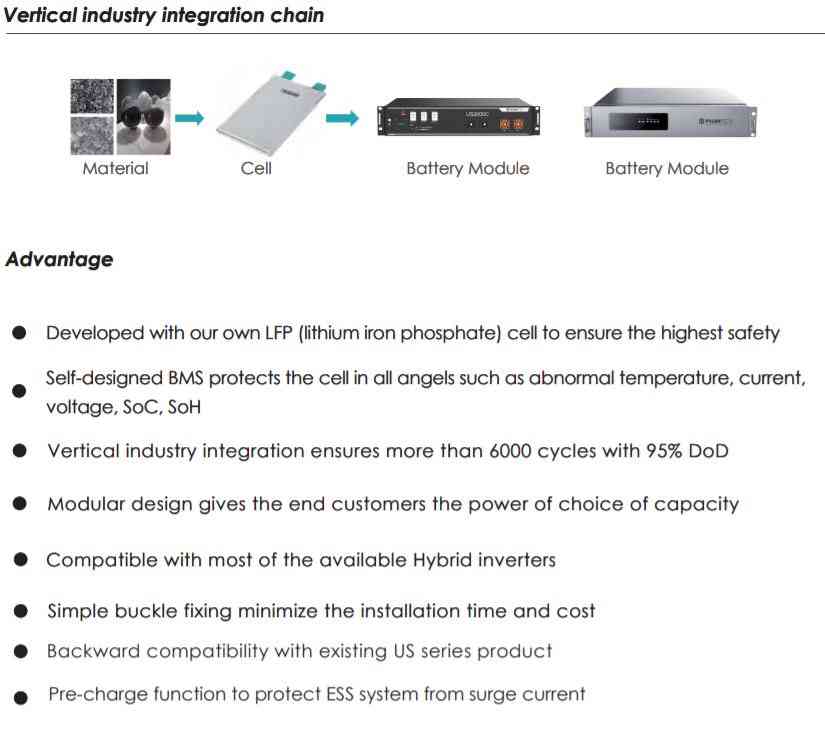

Advantages
- Vertical industry integration ensures cycle life of 6000 cycles
- Compact and fashionable design fits in your home environment
- Deliver up to 3.5kW* with single module (3.5kWh) - * please note this value is inverter/charger dependant, typically the maximum sustained value is 1.8kW per battery
- Modular design gives the end customers the power of choice of capacity

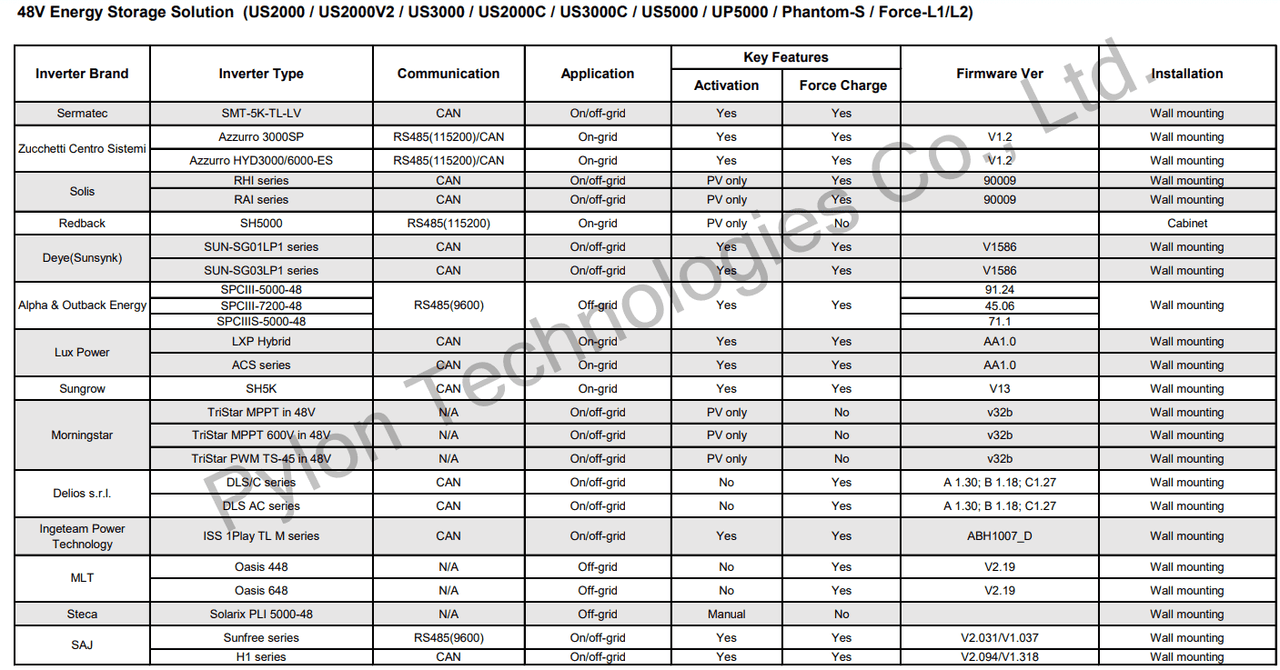

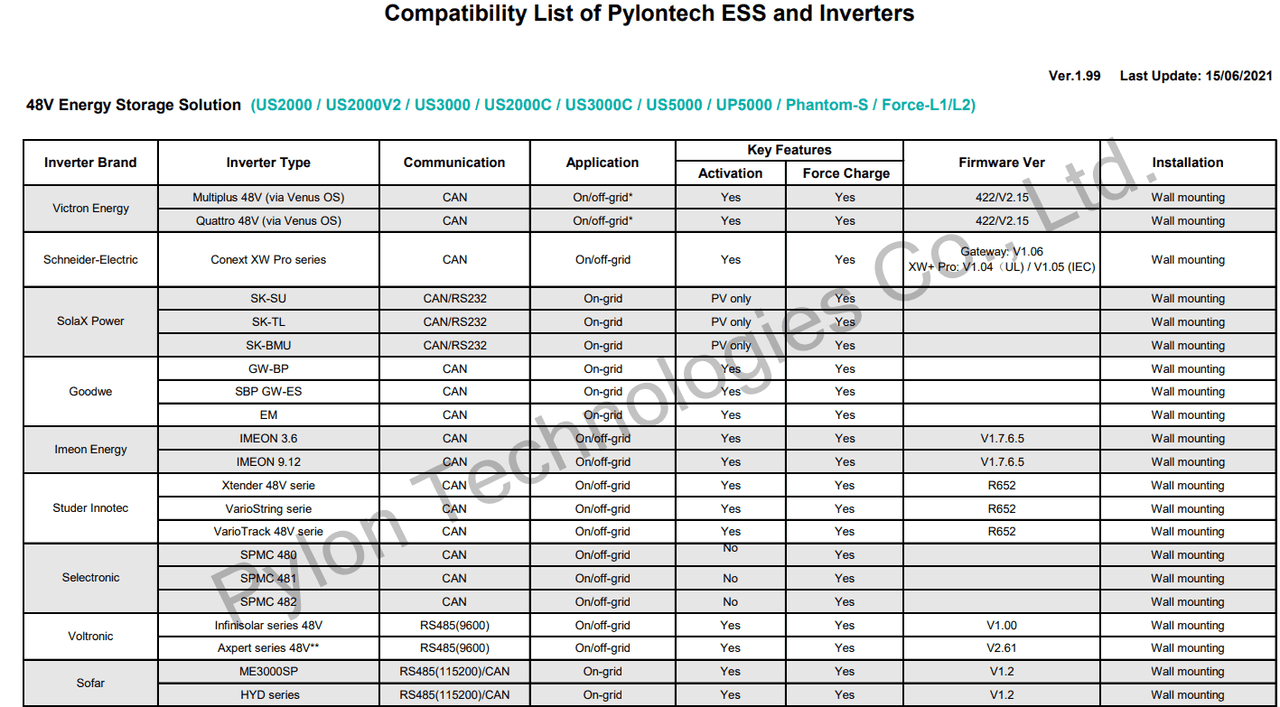

- Compatible with large number of Hybrid inverters
- Simple buckle fixing minimize the installation time and cost
- Provides pre-charge function to protect ESS system from surge current.
- Up to 16 units can be stacked in parallel

To extend the warranty you have to register here: http://en.pylontech.com.cn/service/support

The US3000C can be used to expand an existing US3000 bank. Please note, the US3000C needs to be used as the master battery when used to expand an existing US3000 bank.

* In accordance with Pylontech's warranty conditions. The warranty is only valid if the batteries ahave been insatlled by an electrician or authorised installer.
