Sigenergy SigenStor 3.6kW Hybrid Controller and 8.0kWh Battery

#2:   SIG-EC-3.6-SP-BAT-8.0 | Storage Systems – Complete Storage Package

Brochure Sigenergy Home Energy Solution

Sigenergy SigenStor Battery Datasheet

Sigenergy Single Phase Hybrid User Manual

Sigenergy Energy Hybrid Warranty

Sigenergy Battery Warranty

Cost-Effective Package for Homeowners

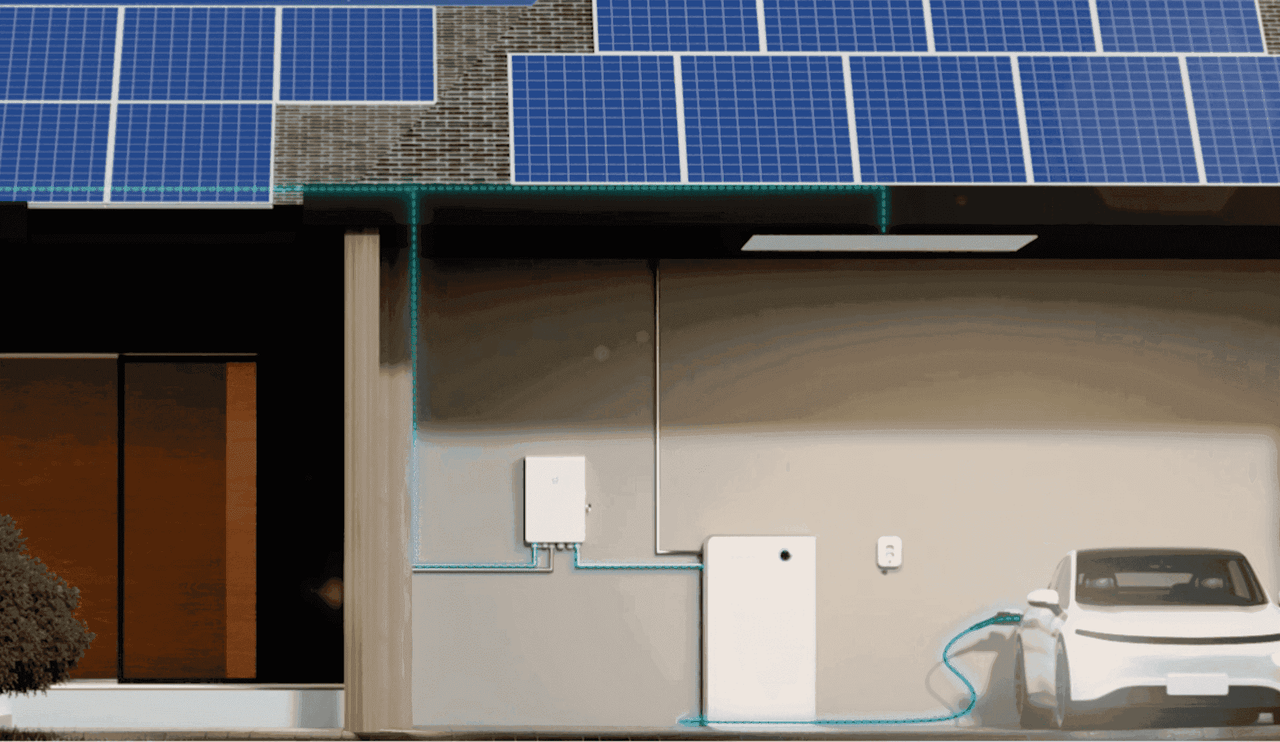

The Sigenergy Sigenstor  3.6kW Single Phase hybrid with 8.0kWh Battery is a fully integrated home energy storage package designed for UK households. With intelligent design, advanced safety, and scalable performance, this package offers a reliable way to store solar energy, reduce electricity bills, and gain greater independence from the National Grid.

What’s Included:

Core Components

• 1 x SIG-STOR-BAT-8.0 – Sigenergy Sigenstor Battery 8.0 kWh with LED

• 1 x SIG-STOR-EC-3.6-SP – Sigenergy Sigenstor Energy Controller 3.6 kW Single Phase

Installation & Monitoring Accessories

• 1 x SIG-STOR-GM-KIT – Ground-Mount wall-mounted Installation Kit or

• 1 x SIG-SENSOR-SP-CT-DH – Sigenergy Power Sensor Single Phase External CT DH

Key Features

5-in-One Modular Energy System

Combines in one platform:

• Solar Inverter
• EV DC Charger
• Battery PCS
• Battery Pack
• EMS

Reduces installation complexity and integrates seamlessly into your home.

Intelligent Energy Storage

• 8.0 kWh usable capacity – ideal for medium households with higher daily energy usage.

• Expandable design allows for future system growth.

• AI optimisation improves cycle life and ensures efficient energy use.


Advanced Safety Protection

• Multi-layer safeguards against overvoltage, short-circuit, and thermal risks.

• Fire prevention and advanced thermal management built-in.

Smart Monitoring & Control

• LED indicators for on-site status visibility.

• mySigen App for real-time monitoring, energy usage insights, and remote management.

Quick & Flexible Installation

• Plug-and-play design with quick connectors.

• Compatible with parallel battery expansion for larger capacity systems.

Benefits for UK Homeowners

Lower Energy Bills

• Store excess solar energy and use it during peak electricity tariffs.

• Optimised charge/discharge cycles with AI-powered efficiency.

Energy Independence

• Reduce reliance on the UK National Grid and safeguard against blackouts.

• Future-ready with EV charging compatibility.

Expandable & Future-Proof

• Start with 8.0kWh and expand up to 48kWh as your household needs grow.

• Scalable system designed for long-term investment.

Technical Specifications

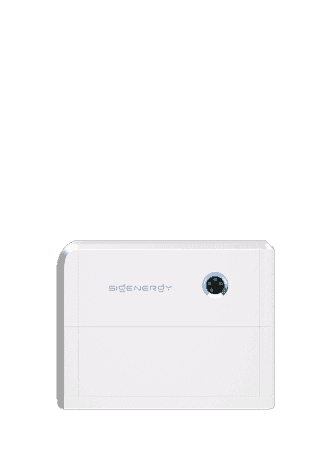

Smart Hybrid (SIG-STOR-EC-3.6-SP)

• Rated Power: 3.6 kW (Single Phase)

• AC Output Voltage: 230V

• Max Efficiency: > 97%

• Communication: Wi-Fi, Ethernet, RS485

• Dimensions (W x H x D): Approx. 482 x 360 x 155 mm

• Weight: Approx. 20 kg

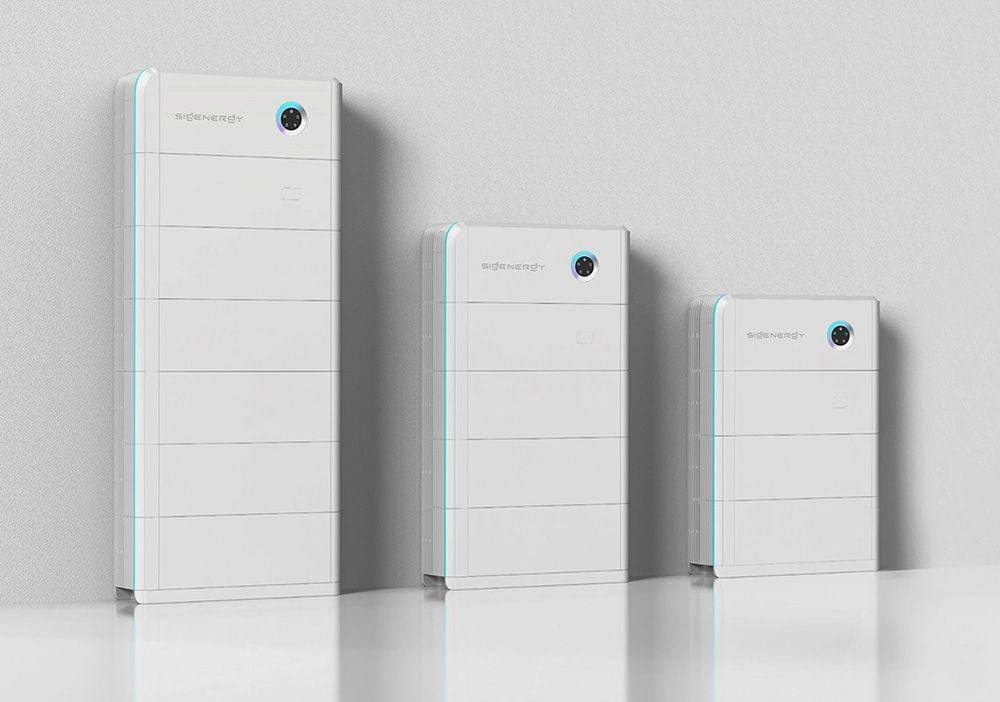

Battery Module (SIG-STOR-BAT-8.0)

• Battery Type: Lithium Iron Phosphate (LiFePO4)

• Usable Capacity: 8.0 kWh per module

• Nominal Voltage: 51.2V

• Operating Voltage Range: 44.8V – 57.6V

• Round-Trip Efficiency: ≥ 95%

• Cycle Life: 6,000+ cycles @ 90% Depth of Discharge (DOD)

• Charge/Discharge Power: 4.0 kW per module

• Dimensions (W x H x D): Approx. 482 x 720 x 155 mm

• Weight: Approx. 70 kg

• IP Rating: IP65 – suitable for indoor & outdoor installation

• Operating Temperature: -20°C to +55°C

Why Choose the Sigenergy Sigenstor 3.6kW with 8.0kWh Storage?

• All-in-one solution for UK homeowners looking to cut energy costs.

• Flexible & scalable system that grows with your household needs.

• Safe & reliable, designed with multi-layer protection.

• Smart monitoring via app and LED indicators.
