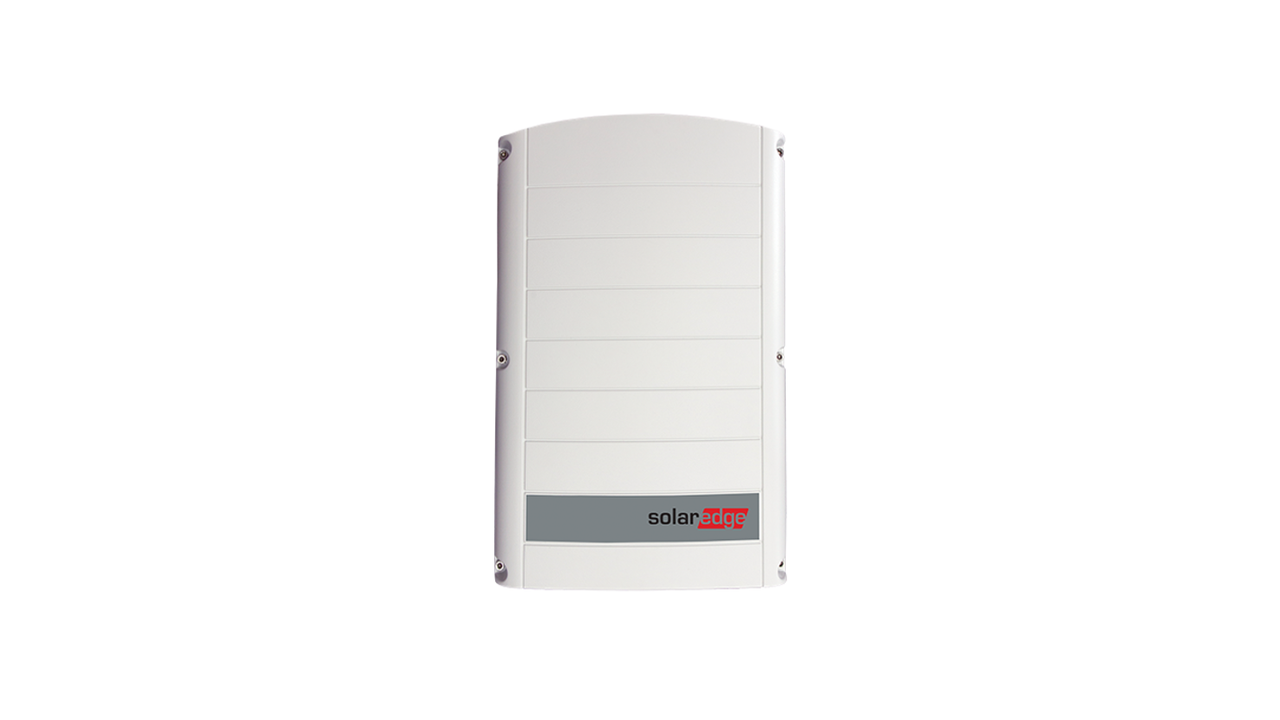

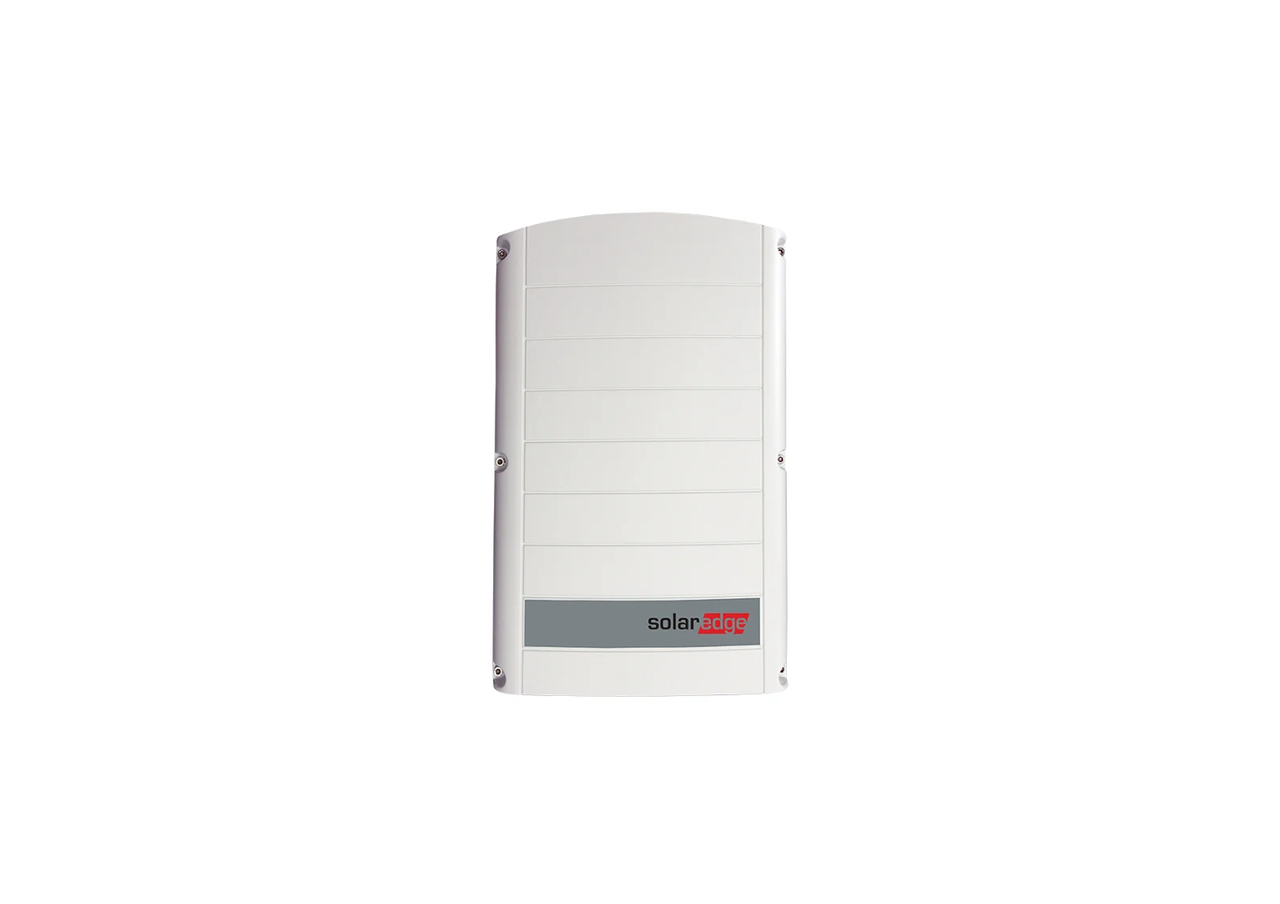

SolarEdge 9000W Home Wave Inverter - Three Phase
*Collections are not permitted due to health & safety regulations*
#1: SE-9000-3PH-NET Inverters - Main Units
SolarEdge 9000W Data Sheet
SolarEdge 9000W Manual
SolarEdge 9000W G100 Certificate
Solar Edge 9000 3phase inverter with Set APP function (no display)
The SolarEdge inverters combine a sophisticated, digital control technology and a one stage, efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.
The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.
UK only: This inverter has been tested and certified according to G98 or G99, but only with the most recent Firmware version. Please update the inverter firmware during SetAPP phone app commissioning process as per the per Installation Manual.
This inverter has no trackers and requires power optimisers to function.
Weight: 16.4 kg
Rated Power: 9,000 W
Min PPT Voltage: 750 V
Max PPT Voltage: 900 V
DC Startup Voltage: 0 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 900 V
Max DC Power: 9,450 W
Max AC Power (5 Minutes): 7,000 W
Surge AC Power (1 Second): 7,000 W
Max DC Current: 12 A
Max DC Inputs: 2
Has DC Fuses: 0
Included Connectors: 0
Euro Efficiency: 97.4 %
MPPT Quantity : 0
Has Integrated DC Switch: Yes
Warranty: 12 years
