SolaX G4 X1 Hybrid single phase battery storage Inverter HV 5kW charges from grid#1: X1-HYBRID-G4-5.0

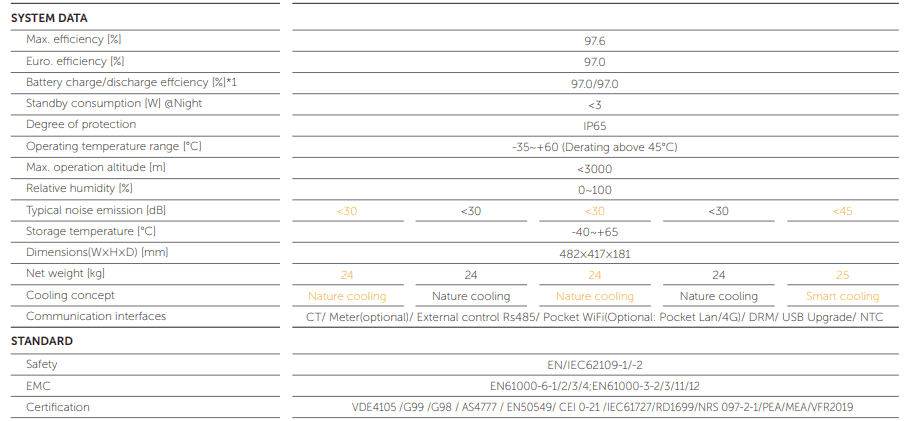

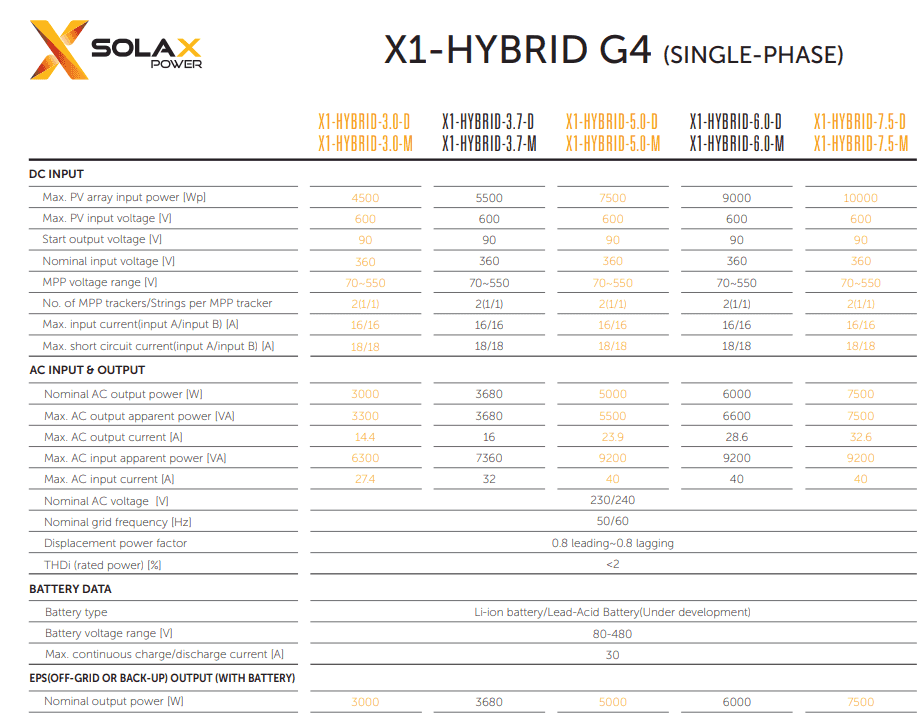

SolaX G4 Data Sheet
SolaX G4 User Manual
SolaX G4 Warranty
SolaX G4 G99 Certification
Modbus Energy meter is required for SolaX charger to work
WiFi stick is required for SolaX CloudFor a full list of SolaX products click here.
*Collections are not permitted due to health & safety regulations*

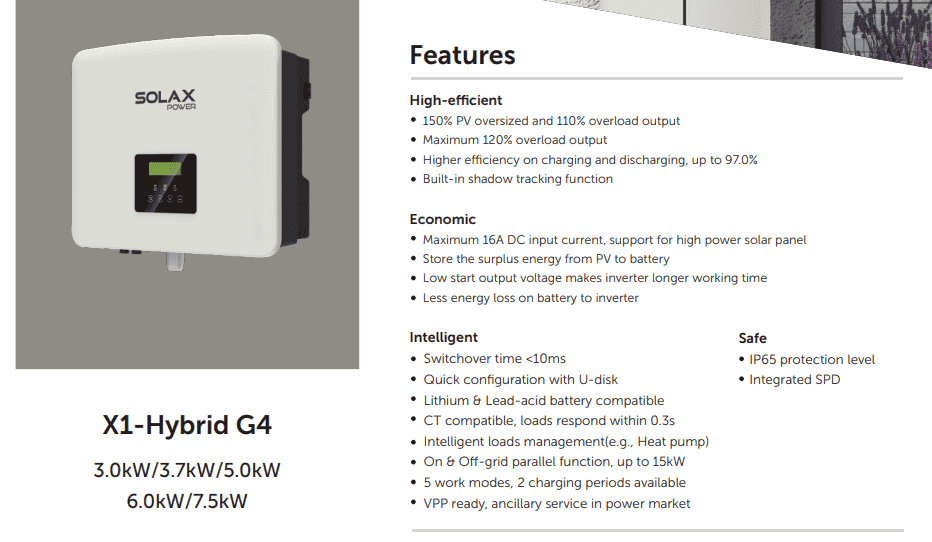

G4 HV Single Phase Hybrid Inverter and Charge controller rangeThis is the fourth generation of SolaX Hybrid/AC Charge controller inverters to be released into the market, retaining all the key features of the 3rd generation ranges whilst incorporating some new and welcome enhancements.Some additional features of the G4 range include;Supports up to 150% Oversizing The new G4 range allows for greater oversizing in comparison to previous generations meaning you can maximise the amount of connected PV ensuring the system is always producing the maximum amount.High reliability Performs well in harsh environments -Passed the HALT test -Tested to extreme high and low temperatures -Salt spray tested -Aging test with full working load30 Min installation Faster and easier installation reduces the time spent on siteFast Charging speeds The G4 range can almost fully charge the tripe power battery in ONE hour. With the shorter charging time you can store more energy inside the same time period.Element protection Can work at full load under extremely cold temperatures of down to -30C
Weight: 28 kgRated Power: 5,000 WMin PPT Voltage: 125 VMax PPT Voltage: 550 VDC Startup Voltage: 125 VDC Shutdown Voltage: 125 VMax Input Voltage: 600 VMax DC Power: 7,500 WMax AC Power (5 Minutes): 5,500 WSurge AC Power (1 Second): 5,501 WMax DC Current: 28 AMax DC Inputs: 2Has DC Fuses: 0Connector: SUNCLIXIncluded Connectors: 2Euro Efficiency: 97 %Transformer: NoneMPPT Quantity : 2Has Integrated DC Switch: NoWarranty: 10 years
