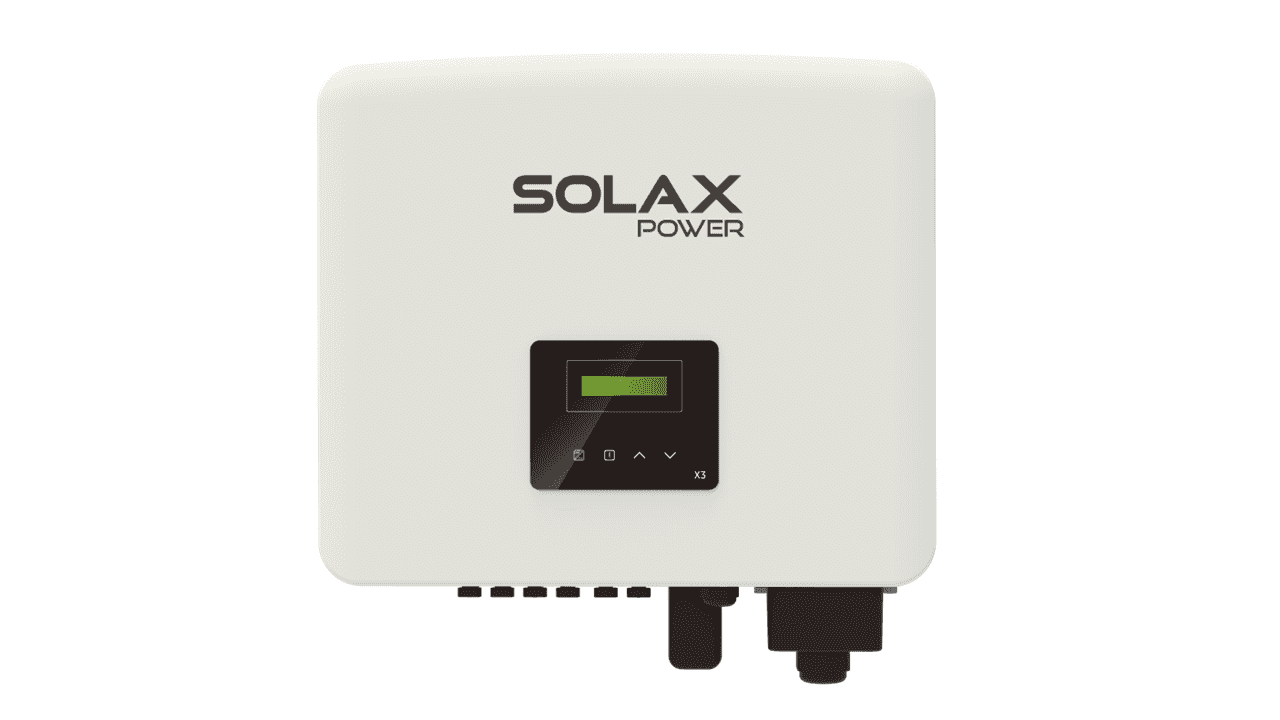

SolaX X3 Pro 3 Phase Inverter 25kW G2 £1,250 + vat

SolaX X3 Pro 3 Phase Inverter 25kW G2

#1: X3-PRO-25K



SolaX X3 Data Sheet

SolaX X3 Manual

SolaX X3 Warranty

SolaX X3 G99 Certificate



For a full list of SolaX products click here.

*Collections are not permitted due to health & safety regulations*



High-Effi­ciency

• Maximum effi­ciency is up to 98.5%
• Low start up voltage, ultrawide MPPT voltage range
• 150% oversizing, 110% overloading output
• Built-in shadow tracking function

Safe

• SPD type II protection both AC&DC
• ARC protection (Optional)
• IP66 protection

Smart

• Built-in export power control
• Intelligent load management - heat pump (Optional)
• 24 hours operation monitoring
• Multiple monitoring methods, Pocket WiFi/LAN/4G (Optional)

Economic

• Ultra-high power density
• Maximum 16A DC input current, support high power solar panel
• Up to 3 MPPTs, 2 strings per MPPT



Weight: 28 kg
Rated Power: 25,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 960 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,000 V
Max DC Power: 37,500 W
Max AC Power (5 Minutes): 25,000 W
Surge AC Power (1 Second): 27,500 W
Max DC Current: 32 A
Max DC Inputs: 0
Has DC Fuses: 0
Connector: MC4
Included Connectors: 6
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 6
Has Integrated DC Switch: No
Warranty: 10 years
