Solis 60kW S5 3 Phase 6x MPPT - DC £2,295 + VAT

£2,754.00 incl. VAT

Solis 60kW S5 3 Phase 6x MPPT - DC £2,295 + VAT

£2,754.00 incl. VAT
Contact Us
Product description

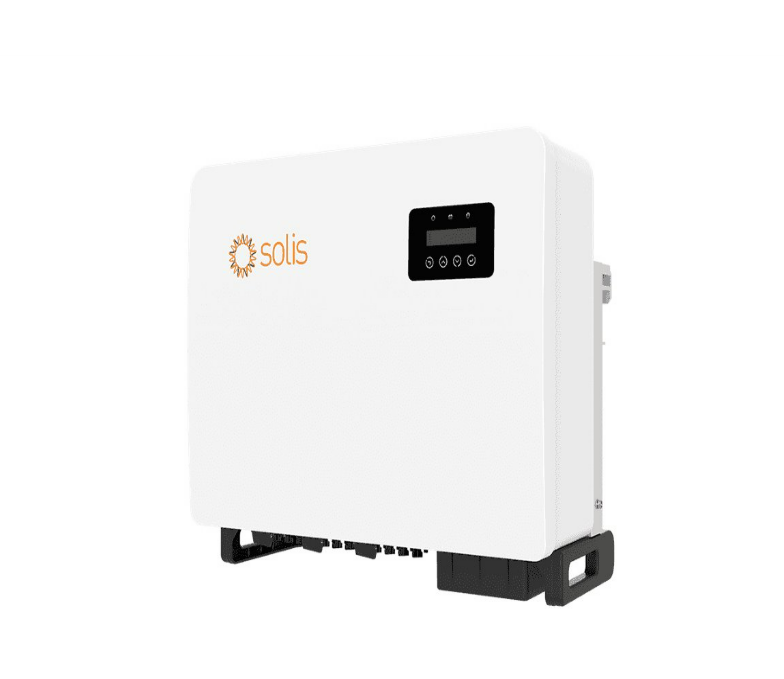

Solis 60kW S5 3 Phase 6x MPPT - DC

#1: SOL-S5-GC60K-DC

#4: S5-GC60K-DC-PID

Pdf free icon Solis 60kW Data Sheet

Pdf free icon Solis 60kW Manual

Pdf free icon Solis 60kW Warranty

Pdf free icon Solis 60kW G99 Certificate


  • Rating: 60,000W
  • Phases: 3

Product Features:

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
  • Max PV DC Power of 90kW
  • 32A input per MPPT, 16A input for each PV string
  • Maximum output power of 66kW
  • 6 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated and C5 Anti-Corrosion Level
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • DC reverse-polarity protection
  • Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified


Weight: 54.5 kg
Rated Power: 60,000 W
Min PPT Voltage: 195 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 195 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,100 V
Max DC Power: 90,000 W
Max AC Power (5 Minutes): 66,000 W
Surge AC Power (1 Second): 66,000 W
Max DC Current: 192 A
Max DC Inputs: 12
Has DC Fuses: 0
Connector: MC4
Included Connectors: 24
Euro Efficiency: 98.4 %
Transformer: None
MPPT Quantity : 6
Has Integrated DC Switch: Yes
Warranty: 5 years
