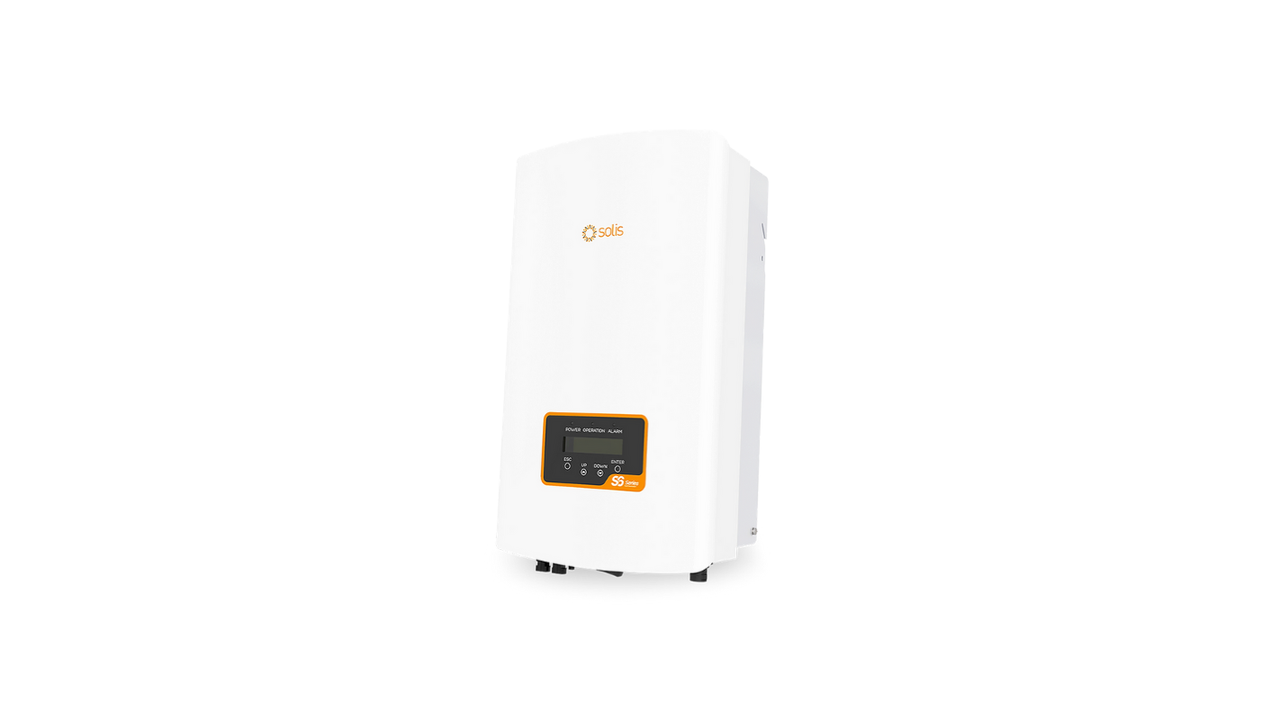

Solis 12kw 3 Phase on grid Solar Inverter S5 Dual MPPT DC

£916.00 + VAT

Solis 12kw 3 Phase on grid Solar Inverter S5 Dual MPPT DC

£916.00 + VAT
Contact Us
Product description

Solis 12kw 3 Phase on grid Solar Inverter S5 Dual MPPT DC


#2:SOL-S5-GR3P-12K-DC

#4: S5-GR3P12K-DC

Pdf free icon Solis 12kw Inverter Data Sheet

Pdf free icon Solis 12kw Inverter User Manual

Pdf free icon Solis 12kw Warranty


*Collections are not permitted due to health & safety regulations*


  • Rating: 12,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.6%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 4
  • Maximum AC output power of 13.2kW
  • Max PV DC Power of 18kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified


Weight: 21.78 kg
Rated Power: 12,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 180 V
DC Shutdown Voltage: 160 V
Max Input Voltage: 1,100 V
Max DC Power: 18,000 W
Max AC Power (5 Minutes): 13,200 W
Surge AC Power (1 Second): 13,200 W
Max DC Current: 64 A
Max DC Inputs: 4
Has DC Fuses: 0
Connector: MC4
Included Connectors: 8
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
