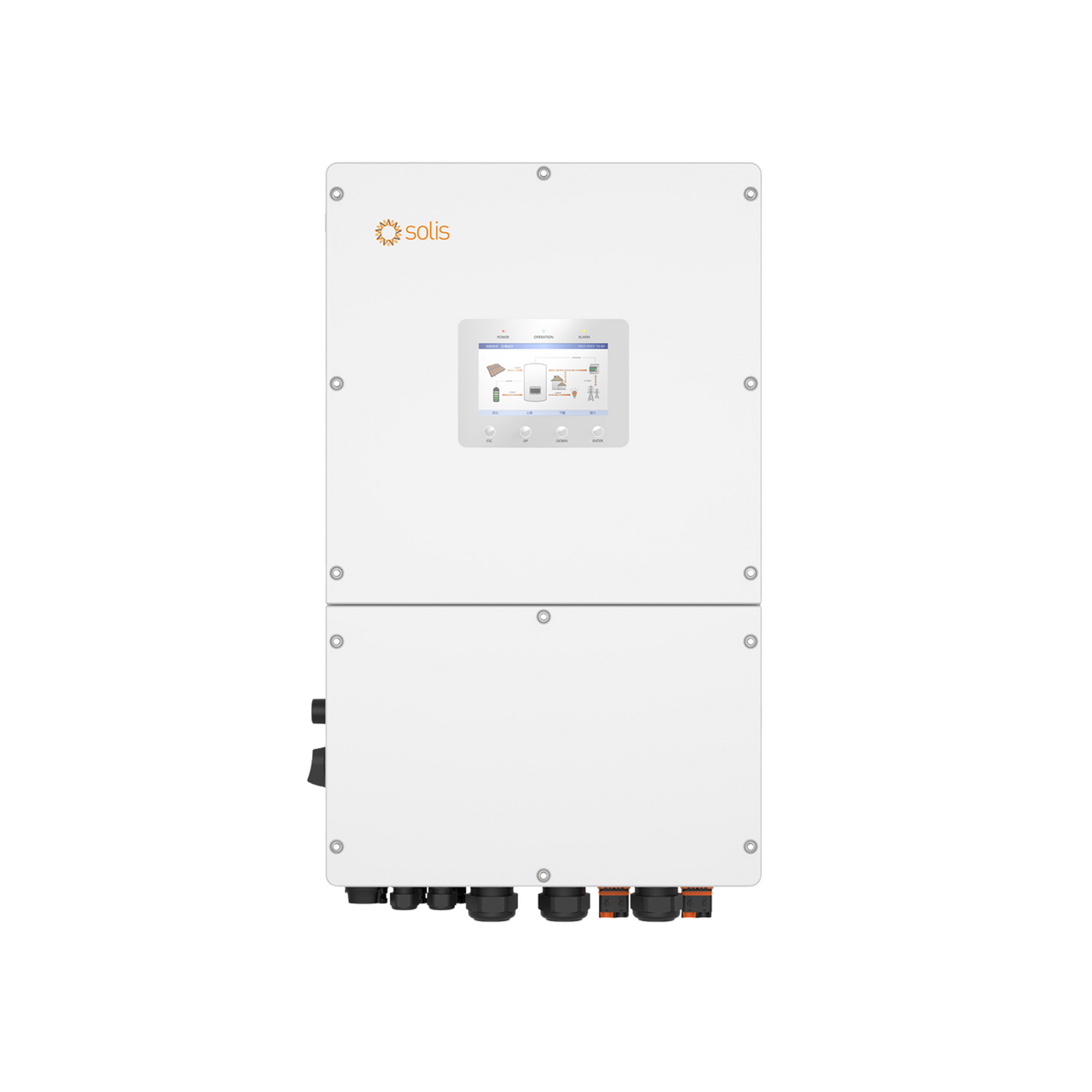

Solis Three Phase 40kW High Voltage Energy Storage Hybrid Inverter

Solis Three Phase 40kW High Voltage Energy Storage Hybrid Inverter

#2: SOL-S6-EH3P40K-H Storage Systems - Hybrid Inverter

Product Compatibility

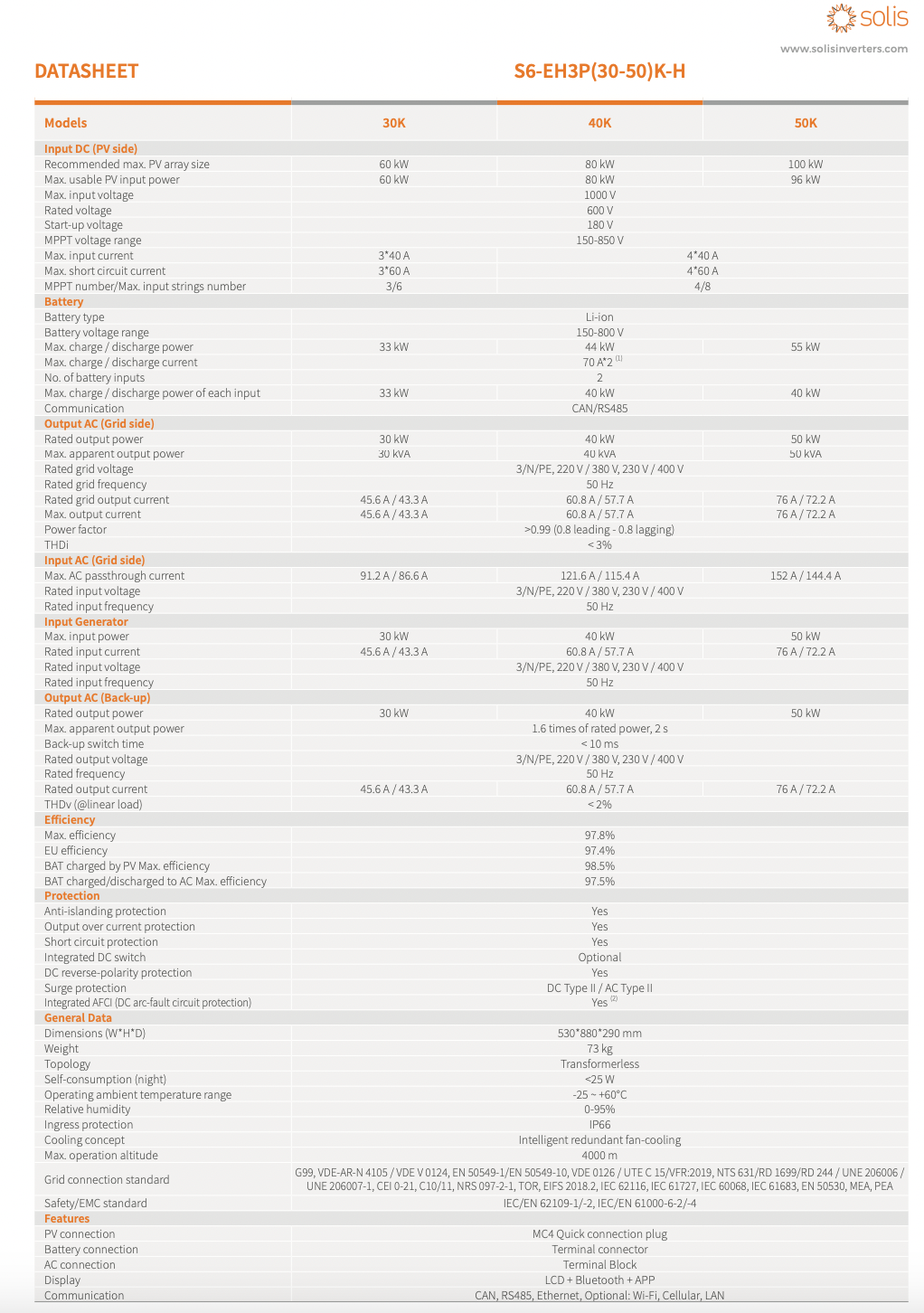

Solis 40kW Data Sheet

Solis 40kW User Manual

Solis 40kW Warranty

Solis S6 Series

The Solis S6-EH3P(30-50)K-H Series is a high voltage, three-phase energy storage solution for commercial buildings. This inverter series features a maximum charge/discharge current of 70A+70A across two independently controlled battery ports. With four integrated MPPTs with a string current capacity of up to 20A ensures unmatched power delivery.

Whether for on or off-grid applications, the S6-EH3P(30-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This most recent range from Solis is compatible with an array of batteries, thanks to its wide voltage range. It also offers peak shaving control in both "self-use" and "generator" modes.

Features

• Up to 80kW Allowable PV on the 180-1000V MPPT
• 4-MPPTs, (40A each), with 2-string inputs allow for 8 strings of high power/current PV modules
• Supports Grid and Generator AC inputs
• Up to 6 x inverters in parallel up to 300kW of back-up load
• Battery Charge and Discharge current of up to 140A
• UPS transfer time of less than 10miute.
• 160% surge power for 2s to accommodate inductive loads
• Integrated AFCI (DC arc-fault circuit protection) mitigating fire risks
• Includes LCD display, S4 Wi-Fi/LAN Stick, Solis Cloud support/monitoring and remote firmware upgrades.
• Warranty:  5 years warranty
• Extendable Warranty: 10, 15, or 20 years

Specs

• Supplier Part No:

  S6-EH3P40K-H-EU

• Weight: 73 kg
• Rated Power: 40,000 W
• Min PPT Voltage: 180 V
• Max PPT Voltage: 850 V
• DC Startup Voltage: 180 V
• DC Shutdown Voltage: 150 V
• Max Input Voltage: 1,000 V
• Max DC Power: 80,000 W
• Max AC Power (5 Minutes): 40,000 W
• Surge AC Power (1 Second): 64,000 W
• Max DC Current: 160 A
• Max DC Inputs: 8
• Has DC Fuses: 0
• Connector: MC4
• Included Connectors: 8
• Euro Efficiency: 97.4 %
• Transformer: None
• MPPT Quantity : 4
• Has Integrated DC Switch: Yes
• Warranty: 5 years
