Sunsynk 50kW 3PH Hybrid Inverter with 20.48kWh Battery
#2: SUN-3PH-50K-BATT-20.48 Storage Systems - Storage Package
Sunsynk 3ph 50kW Data Sheet
Sunsynk 3ph 50kW User Manual
Sunsynk 3ph 50kW Warranty
To view our full range of Sunsynk products visit our main Sunsynk page here

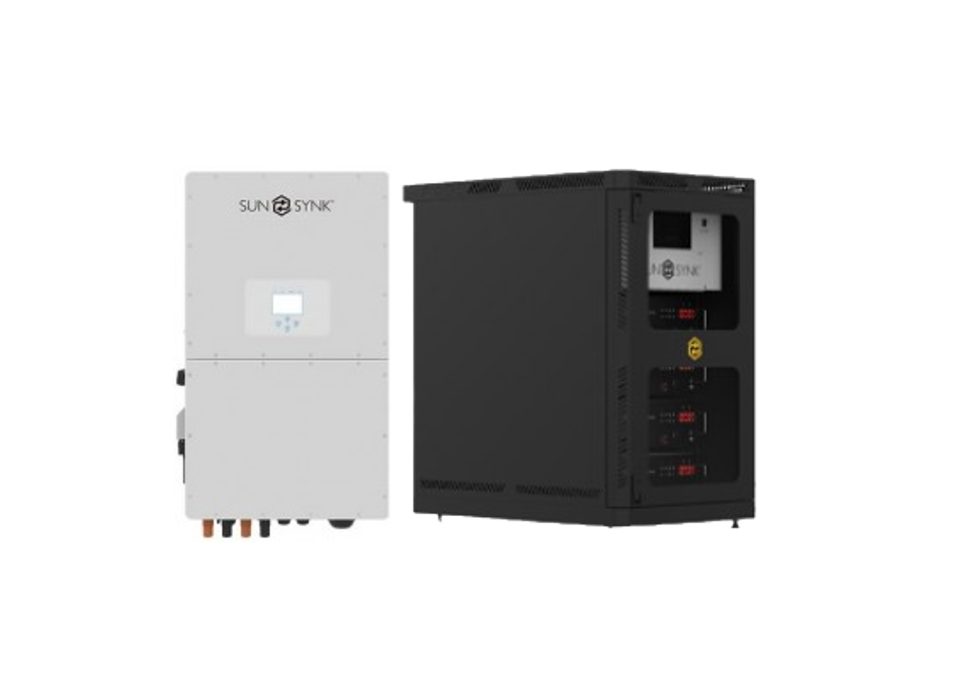

Sunsynk 50kW HV Three Phase Hybrid Inverter System – Complete Kit
This commercial-grade energy storage system combines a high-power three-phase inverter with multiple high-voltage battery units and a dedicated battery cabinet. Ideal for industrial and commercial applications, the system allows efficient power management from solar PV, the electrical grid, and generators, with full remote monitoring via the Sunsynk app.
Installation Note: This system must be installed by a qualified technician. All installations must adhere to local wiring regulations to maintain warranty validity.
System Components
-
1 x Sunsynk 50kW HV Three Phase Hybrid Inverter (SUN-50.0-3PH)
-
4 x Sunsynk 5.12kWh Single Battery Unit for HV Series (SUN-HV-5.12-BATT)
-
1 x BMS for Sunsynk HV Series (SUN-HV-BMS)
-

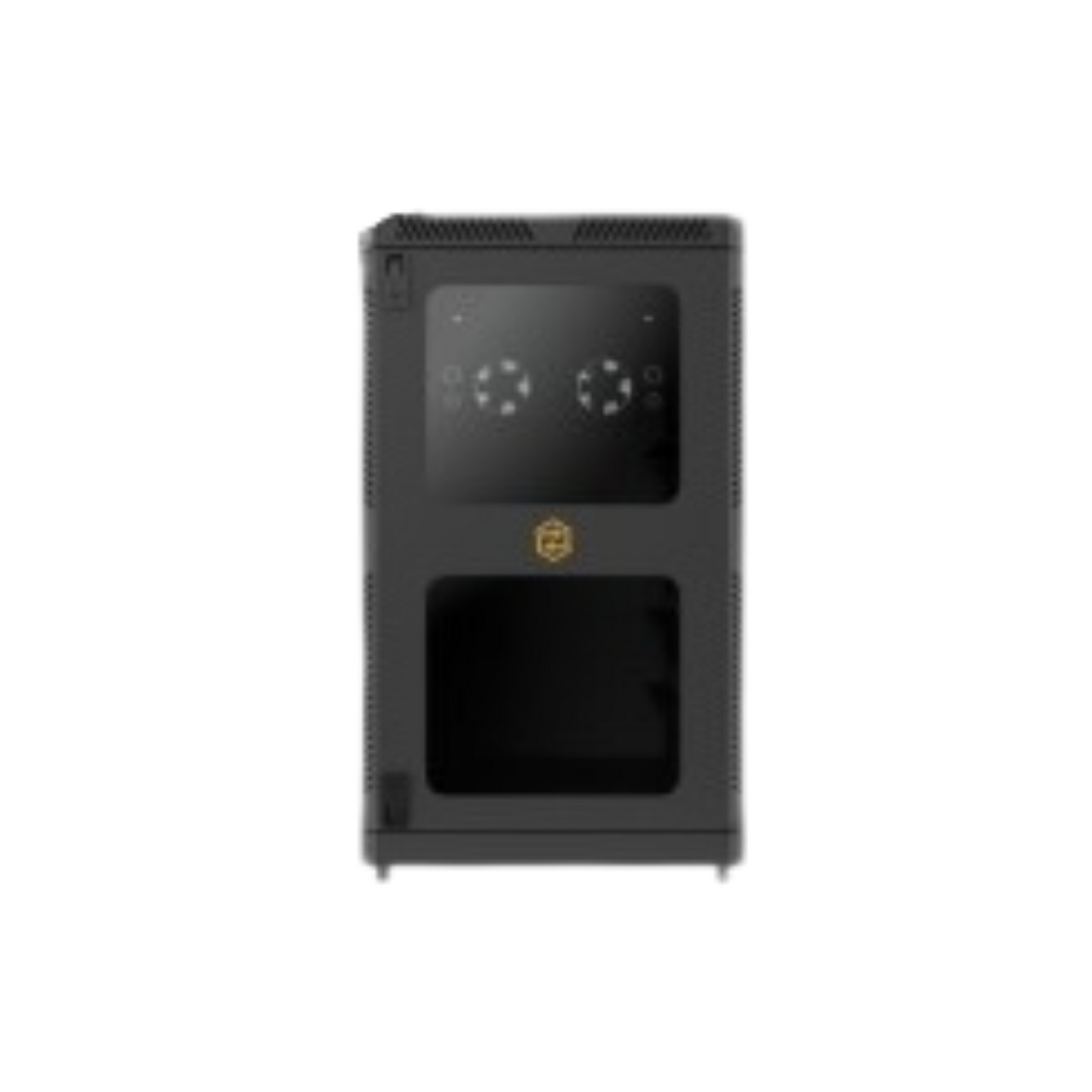

1 x Battery Cabinet with Door for 20.48kWh HV Battery (SUN-HV-20.48-BATTRACK-DOOR)
Key Features
-
High-capacity 50kW three-phase hybrid inverter for commercial and industrial properties
-
4 MPPT Trackers for flexible PV array configurations
-
Supports DC oversizing up to 30% above rated AC power
-
Can operate without batteries for AC-coupled applications
-
WiFi remote monitoring included as standard
-
Type II DC/AC SPD for surge protection
-
Comprehensive protection: Overload, over-temperature, short-circuit
-
Integrated DC switch for safe operation
Inverter Specifications
-
Weight: 75 kg
-
Rated AC Power: 50,000 W
-
Maximum AC Power (5 mins): 50,000 W
-
Surge AC Power (1 sec): 55,000 W
-
Max DC Power: 65,000 W
-
Min PV Voltage: 150 V
-
Max PV Voltage: 850 V
-
DC Startup Voltage: 180 V
-
DC Shutdown Voltage: 150 V
-
Max Discharge Current: 144 A
-
DC Fuses: None required
-
Connector Type: MC4
-
Included Connectors: 0
-
Efficiency (Euro): 97%
-
Transformer: None
-
MPPT Quantity: 4
-
Warranty: 5 years
Summary
The Sunsynk 50kW HV Three Phase Hybrid System is a fully integrated, high-efficiency commercial energy solution. With flexible PV compatibility, high AC output, multiple safety protections, and remote monitoring capabilities, it provides reliable, scalable, and intelligent energy management for commercial properties.
