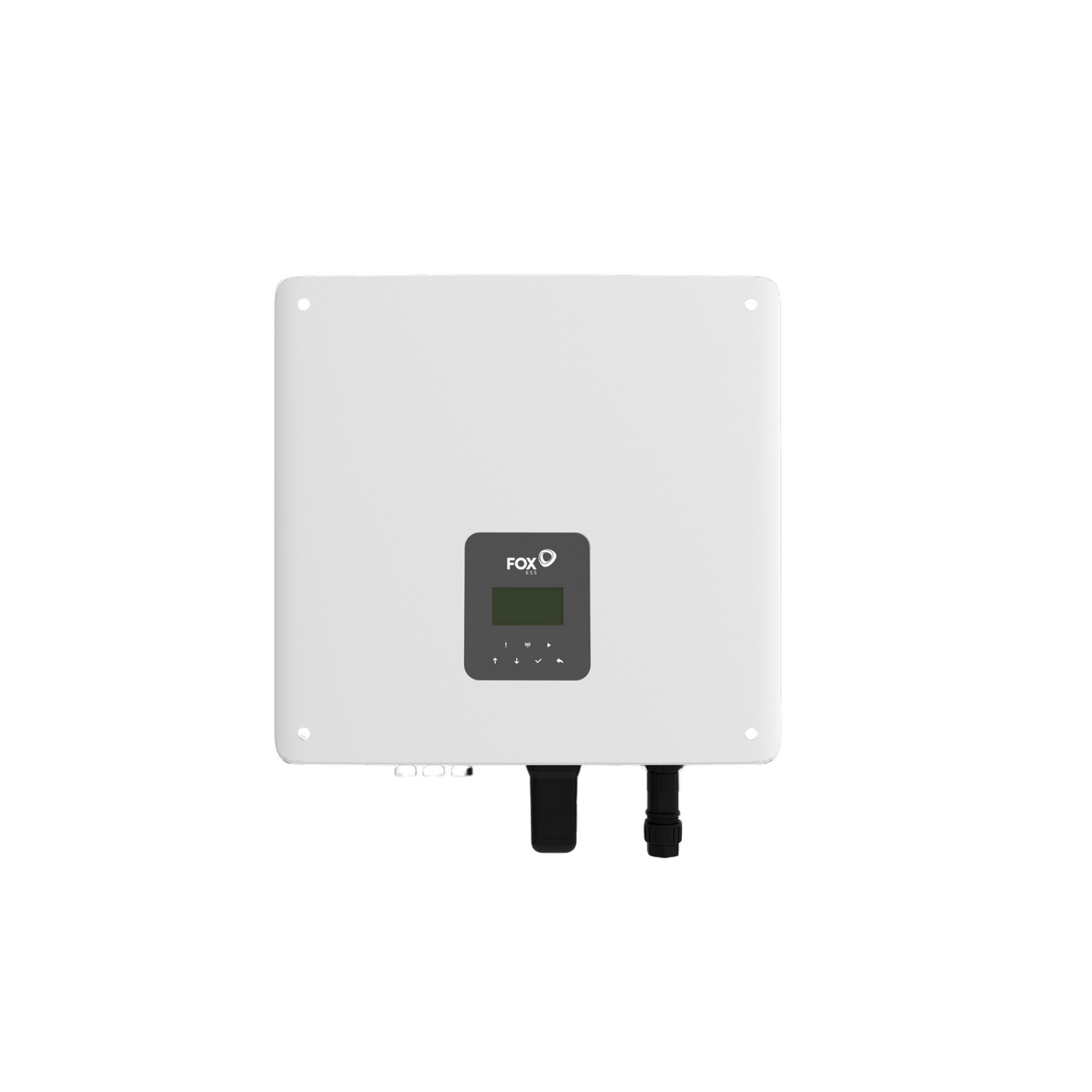

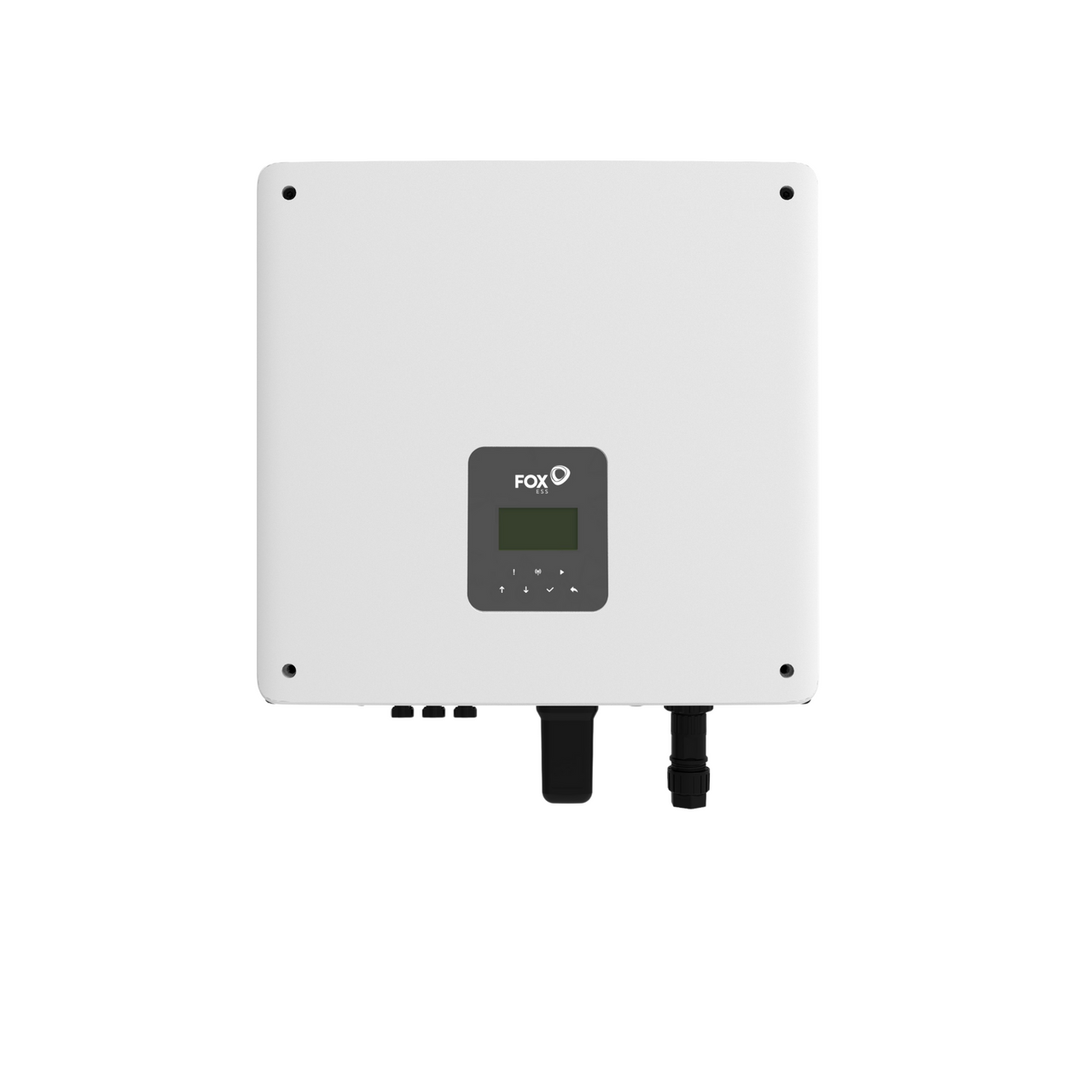

Fox H1 3.0kW Hybrid Inverter G2

Fox H1 3.0kW Hybrid Inverter G2

#2: FE-H1-3.0-G2 Storage Systems - Hybrid Inverter

Fox H1 3.0kW Datasheet

Fox H1 3.0kW Manual

Fox H1 3.0kW Installer Guide

Fox H1 3.0kW G100 Certification

Fox Battery Sizing Guide

Fox H1 3kW Hybrid Inverter – High Efficiency, Easy Expansion

The Fox H1 3kW Hybrid Inverter is a compact, high-performance solution designed for residential and small commercial solar systems. With dual MPPT tracking and a high round-trip efficiency of 97%, it ensures maximum energy harvest from your solar array. Its modular and flexible design allows for easy expansion with compatible FoxESS batteries, making it a future-proof energy storage solution.

Key Features

• Easy Installation: Plug-and-play design saves time on site

• High Voltage System: Supports efficient energy storage and discharge

• IP65 Rated: Suitable for outdoor installations

• Remote Monitoring: Monitor your system via WiFi or the FoxESS portal

• Dual MPPT: Optimises solar production for maximum efficiency

• High Round-Trip Efficiency: 97% for effective energy use

• Expandable Battery Capacity: Compatible with multiple FoxESS batteries

Battery Compatibility

• ECS2900: 1 Master minimum, up to 6 Slaves maximum

• ECS4100: 1 Master + 1 Slave minimum, up to 6 Slaves maximum

• ECS4300: 1 Master + 1 Slave minimum, up to 6 Slaves maximum

• ECS4800: 1 Master + 1 Slave minimum, up to 6 Slaves maximum

• HV2600: 1 BMS + 2 HV2600 minimum, up to 7 maximum

Note: FoxESS inverters are compatible with Tigo optimisers only and are not compatible with SolarEdge or Huawei optimisers.

Included in the Package

• CT Clamps

• WiFi Stick

Additional Requirements

• A second CT if there is another generator set (PV, wind, etc.)

• A meter between the inverter and incoming power connection point if the distance exceeds 30m

Technical Specifications

• Weight: 22 kg

• Rated Power: 3,000 W

• Min PPT Voltage: 80 V

• Max PPT Voltage: 550 V

• DC Startup Voltage: 75 V

• DC Shutdown Voltage: 601 V

• Max Input Voltage: 600 V

• Max DC Power (5 Minutes): 4,500 W

• Max AC Power (5 Minutes): 3,000 W

• Surge AC Power (1 Second): 3,300 W

• Max DC Current: 32 A

• Max DC Inputs: 2

• DC Fuses: None

• Connector Type: MC4 (4 included)

• Euro Efficiency: 95.7 %

• Transformer: None

• MPPT Quantity: 2

• Integrated DC Switch: Yes

• Warranty: 5 years

✅ **The Fox H1 3kW Hybrid Inverter is ideal for homeowners seeking a reliable, efficient, and expandable solar energy solution compatible with a wide range of FoxESS batteries.

Remember to register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard. Please click here for registration page.
Please check the warranty document for more information.
