SolaX X3 G4 Hybrid 10.0D (inc. WiFi dongle)

SolaX X3 G4-V2 Hybrid 3 Phase Inverter HV 10.0kW

#2: X3-HYBRID-G4-10.0-V2
#3: 4574

SolaX X3 Hybrid Data Sheet

SolaX X3 Hybrid Manual

SolaX X3 Hybrid Warranty

SolaX X3 Hybrid G100 Certificate

For a full list of SolaX products click here.

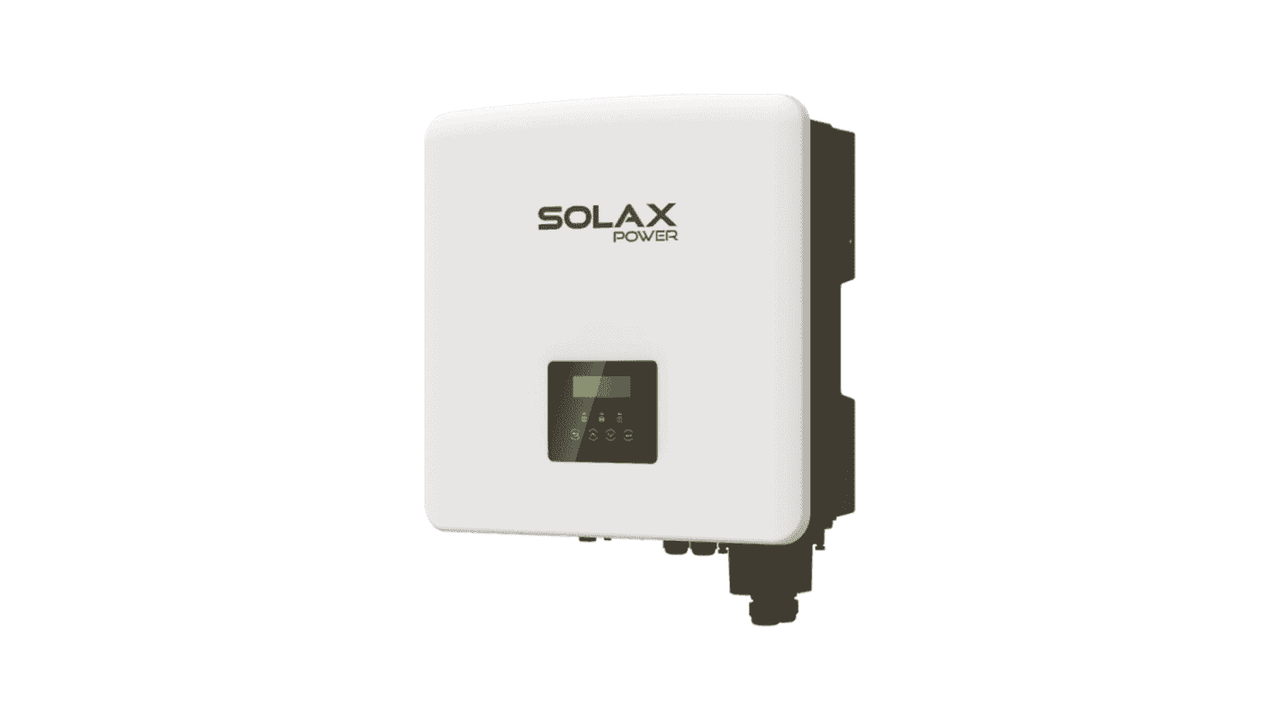

SolaX X3 10.0kW Hybrid Inverter

High Efficiency

• Supports 150% PV oversizing and 110% overload output

• Maximum 150% overload output

• High efficiency for charging and discharging, up to 97.5%

• Built-in shadow tracking function for optimal energy harvest

Economic Performance

• Maximum 16A DC input current, compatible with high-power solar panels

• Stores surplus PV energy to the battery

• Low start output voltage extends inverter working time

• Minimal energy loss from battery to inverter

Intelligent Features

• Switchover time: <10ms for uninterrupted power

• Quick configuration via U-disk

• Compatible with Lithium and Lead-acid batteries

• CT compatible, with loads responding within 0.3s

• Intelligent load management (e.g., heat pumps)

• On & Off-grid parallel function, scalable up to 150kW

• 5 work modes, 2 charging periods available

• VPP ready, supports ancillary services in power markets

• Three-phase unbalanced output: up to 50% nominal output on a single phase

Connectivity

• Wi-Fi included with Solax X3-Hybrid-G4 V2 – no additional equipment required

Specifications

• Weight: 34 kg

• Rated Power: 10,000 W

• Min PPT Voltage: 180 V

• Max PPT Voltage: 950 V

• DC Startup Voltage: 200 V

• DC Shutdown Voltage: 0 V

• Max Input Voltage: 950 V

• Max DC Power: 10,000 W

• Max AC Power (5 min): 10,001 W

• Surge AC Power (1 sec): 10,002 W

• Max DC Current: 24 A

• Max DC Inputs: 2

• DC Fuses: None

• Connector: SUNCLIX

• Included Connectors: 0

• Euro Efficiency: 97%

• Transformer: HF
