GROWATT MIC 3000TL X Single MPPT with Arc Fault Protection with DC
#2: GROWATT-MIC3000-TL-X-AFP-DC Inverters - Main Units
#3: 5452
GROWATT 3000TL X Data Sheet
GROWATT 3000TL X Manual
GROWATT 3000TL X Warranty
GROWATT 3000TL X G100 Certificate

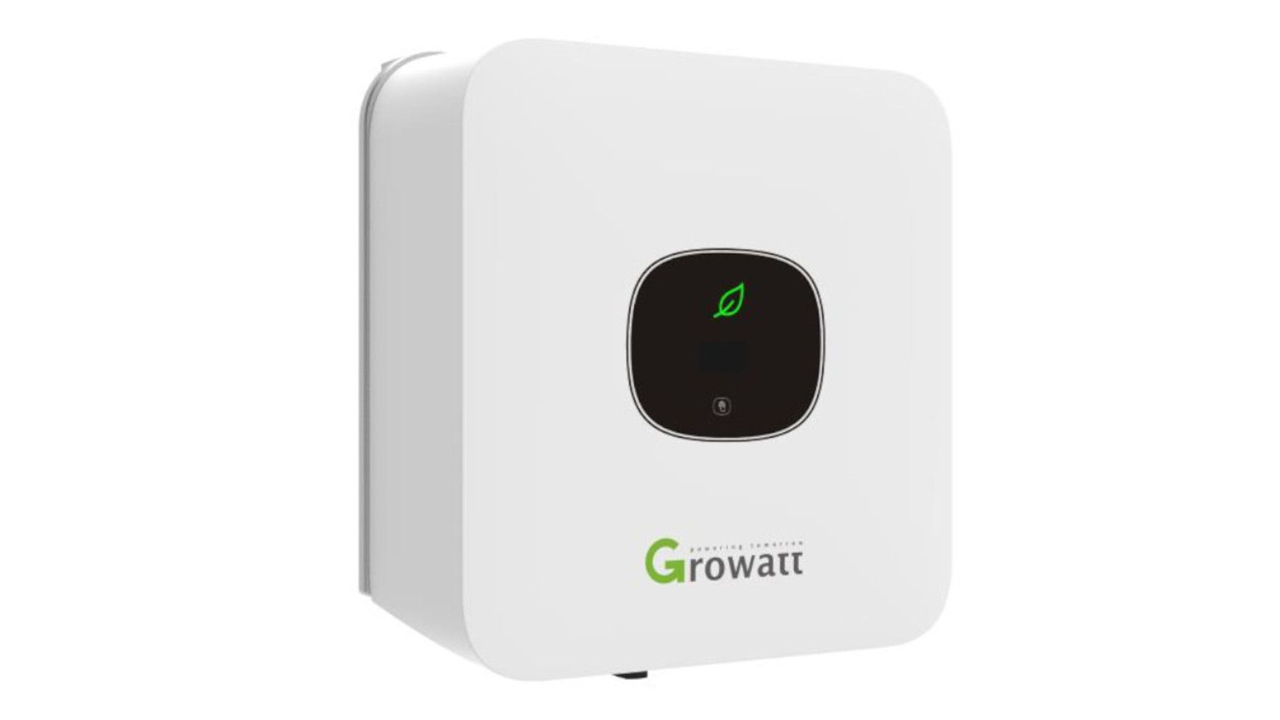

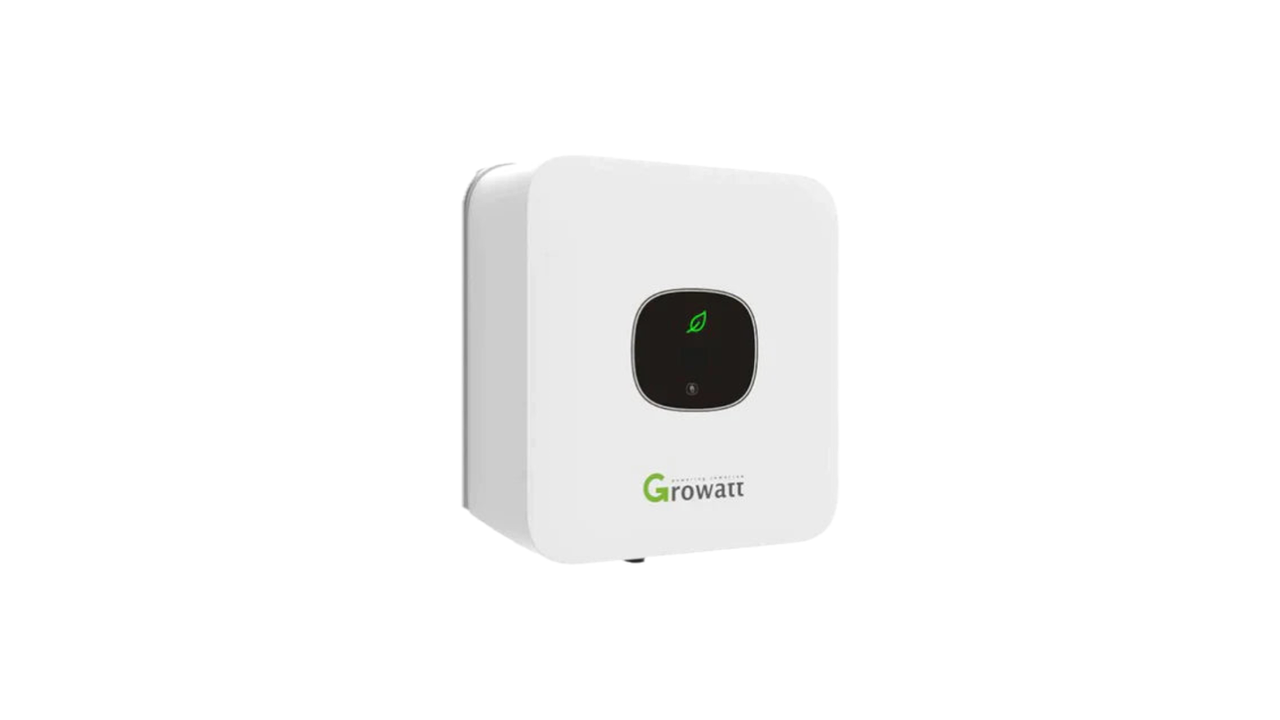

Growatt 3kW TL-X Single Phase Inverter – Residential Solar
The Growatt 3kW TL-X inverter is a compact and efficient solution, designed specifically for residential rooftop solar installations. With 97.6% peak efficiency, advanced MPPT technology, and a lightweight transformerless design, it ensures maximum energy harvest and reliable long-term performance.
This inverter is part of Growatt’s trusted TL-X range, offering flexibility, durability, and smart monitoring options – making it the perfect choice for homeowners looking to get the most from their solar system.
⚡ Key Features
-
High efficiency: Up to 97.6% max. efficiency with 97.1% European efficiency
-
Accurate MPPT: 99% tracking accuracy for optimal energy yield
-
Transformerless design: Lightweight and easy to install
-
Flexible operation: Continuously adjustable power factor
-
User-friendly: Touch key controls & OLED display
-
Smart connectivity: Flexible interface for monitoring options
📊 Technical Specifications
| Specification |
Details |
| Rated Power |
3,000 W (3kW) |
| Phases |
1 (Single Phase) |
| Min PPT Voltage |
80 V |
| Max PPT Voltage |
550 V |
| DC Startup Voltage |
80 V |
| DC Shutdown Voltage |
65 V |
| Max DC Input Voltage |
500 V |
| Max DC Power |
4,200 W |
| Max AC Power (5 min) |
3,000 W |
| Surge AC Power (1 sec) |
0 W |
| Max DC Current |
13 A |
| Max DC Inputs |
1 |
| MPPT Quantity |
1 |
| Connector Type |
Amphenol H4 |
| Included Connectors |
0 |
| Euro Efficiency |
97.1 % |
| Max Efficiency |
97.6 % |
| Transformer |
None (Transformerless) |
| Integrated DC Switch |
Yes |
| Warranty |
10 years |
| Weight |
6.5 kg |
🔒 Compliance & Installer Notes
-
Installer Code Policy (UK & Ireland): All installers must register an Installer Code to access Growatt’s monitoring platform. The installer provides this code to the end user for viewing devices from the installer’s monitoring account.
-
Anti-Reflux Function: To achieve this on the TL-X and TL-XE range, the Growatt Meter SPM-E must be used. A CT clamp cannot perform this function. Please contact us for support.
💡 Why Choose the Growatt 3kW TL-X?
-
Perfectly suited for residential rooftop systems
-
Lightweight, compact, and easy to install
-
Backed by a 10-year manufacturer warranty
-
Future-proof with monitoring & smart grid features
-
Proven performance from one of the world’s leading inverter brands
🔑 The Growatt 3kW TL-X Single Phase Inverter delivers outstanding efficiency, reliability, and ease of use, making it an ideal choice for homeowners who want to optimise their solar investment.
