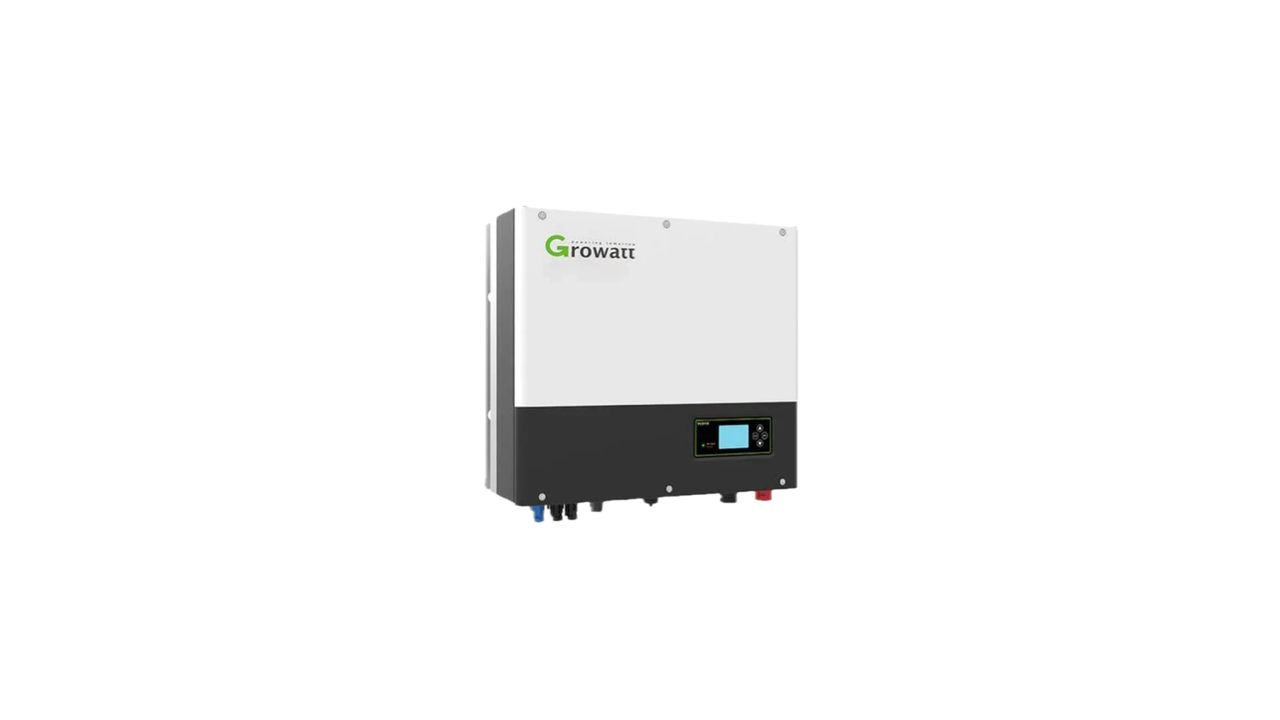

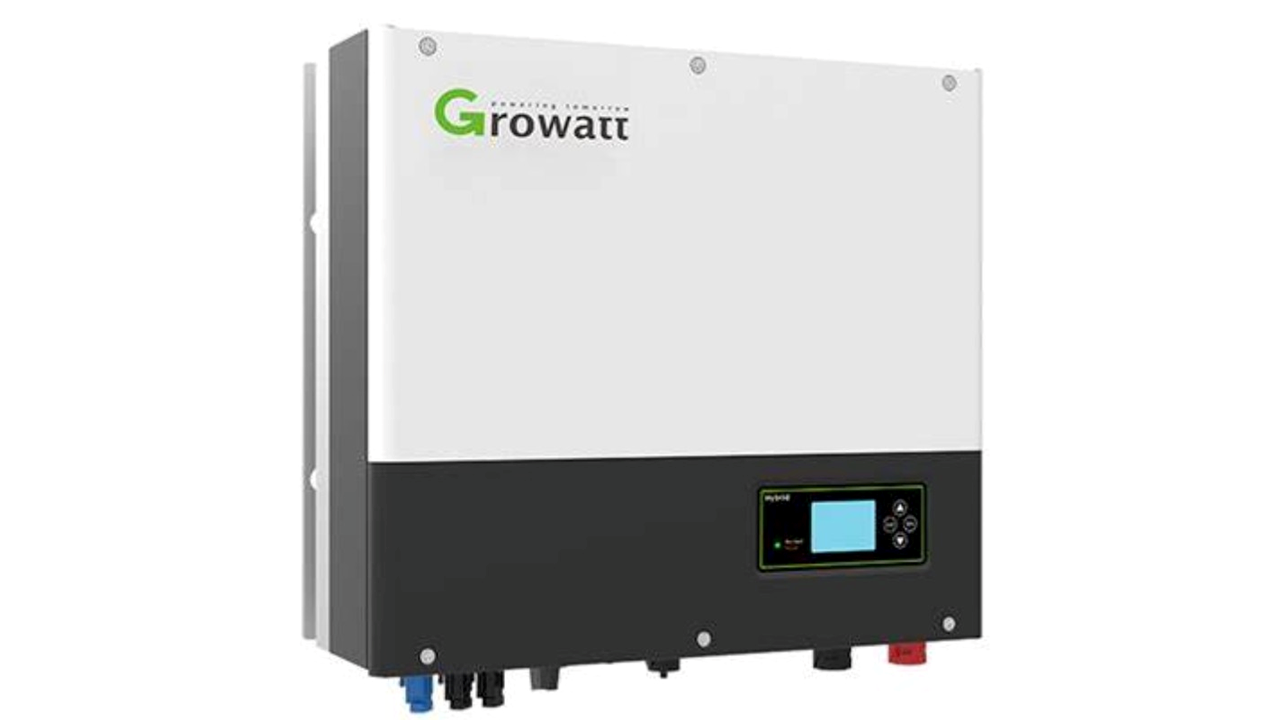

Growatt SPH BL-UP 3kW Dual MPPT Hybrid Inverter

Growatt SPH BL-UP 3kW Dual MPPT Hybrid Inverter

#3: 5194

Growatt SPH BL-UP 3kW Datasheet

Growatt SPH BL-UP 3kW User Manual

Growatt SPH BL-UP 3kW Quick Guide

Growatt SPH BL-UP 3kW Hybrid Inverter

Overview

The Growatt SPH BL-UP 3kW hybrid inverter offers a versatile design suitable for both residential and small commercial solar installations. Featuring 2 MPPT trackers and an IP65 rating, this inverter can be installed outdoors and provides reliable performance in a wide range of conditions.

With built-in EPS functionality and a <10ms changeover time, the SPH BL-UP ensures uninterrupted power during blackouts. The system can be scaled with up to 6 x 3.3kWh ML33TRA batteries (19.8kWh) or 4 x 6.5kWh GBLI batteries (26kWh), making it highly flexible for future expansion.

Comes with a 10-year warranty for peace of mind.

Key Features

• Leading Functions: EPS function with 10ms transitions, scalable system design

• High Yields: DC/AC ratio up to 2.0, dual MPPT trackers for optimal solar performance

• System Flexibility: VPP interface ready, smart load control via dry contact

• Outdoor Ready: IP65 protection rating for durability in external installations

• Monitoring: Compatible with Growatt Shine-WiFi-X for real-time system tracking

Specifications

Input PV

• Max DC Power: 6,500 W

• Max DC Voltage: 550 V

• Start-up Voltage: 120 V

• Number of MPPT Trackers: 2

• Max MPP Current: 13.5 A

• Max MPP Isc Current: 16.9 A

Output AC Backup

• Max Power Output: 3,000 W

• Rated Output Current: 13 A

• Switch Time: <10ms

• Max Current: 13.5 A

• Number of Phases: 1

• Protection Rating: IP65

Physical Attributes

• Weight: 27 kg

• Dimensions (HxWxD): 565 x 456 x 188 mm
