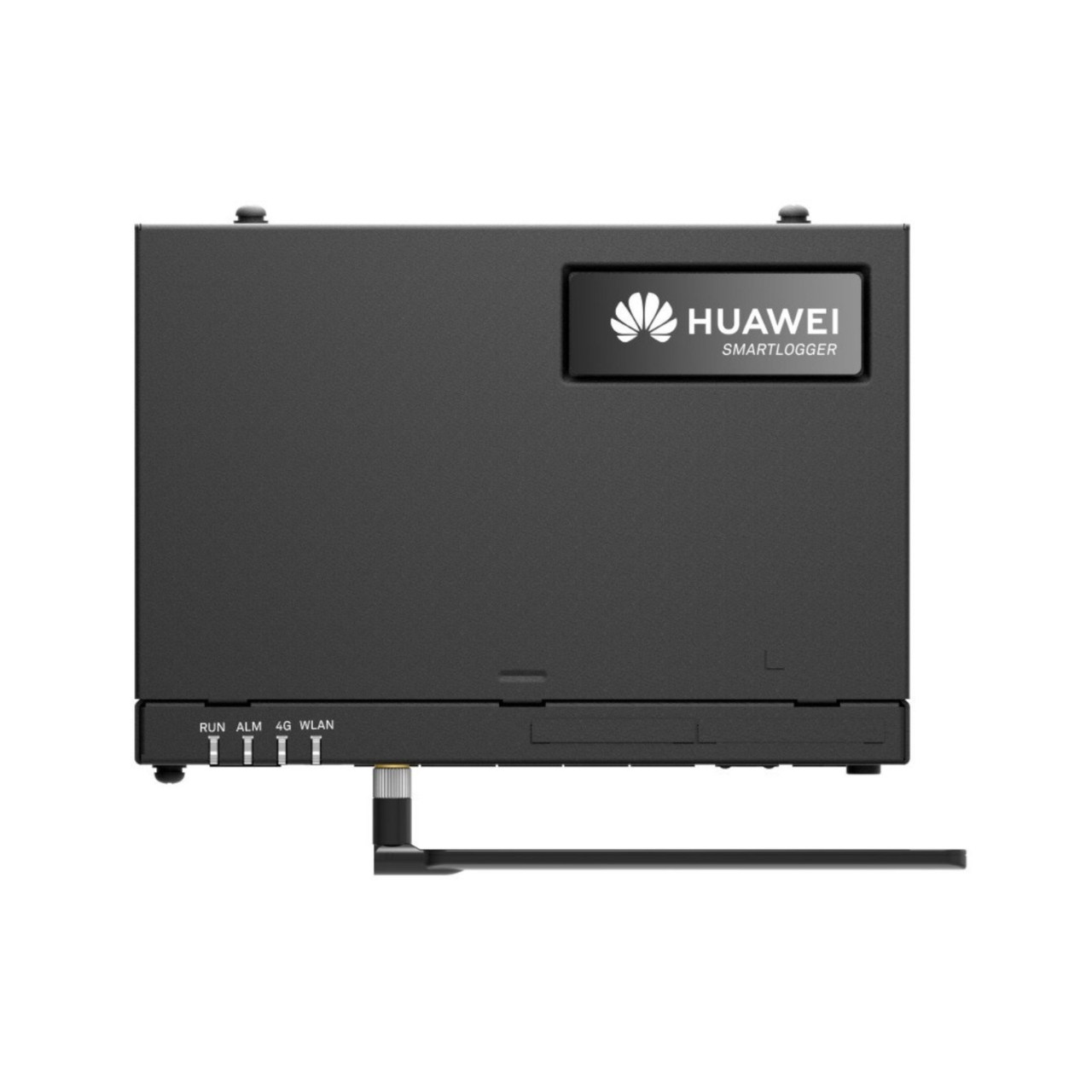

Huawei SmartLogger 3000A

Product Overview

The Huawei SmartLogger 3000A is a powerful monitoring and management device for solar PV systems. It collects, consolidates, and stores data from multiple input ports, allowing centralized monitoring and maintenance of your PV power system. This SmartLogger supports up to 80 connected devices, making it ideal for residential, commercial, and industrial solar installations.

Key Features

Smart Functionality

• Supports IEC60870-5-104 for third-party monitoring system connections

• USB and embedded web interface for data reading and software upgrades

• Automatically detects equipment and assigns RS485 addresses

• Enables remote control of active and reactive power

Simple Installation

• Supports up to 80 inverters feeding into one SmartLogger

• Maximum 30 devices per RS485 bus

• Easy to install on walls, tabletops, or rail mounts

Reliable Performance

• Maximum communication range of 1000m

• Remote configuration with automatic RS485 address setup

• Built-in SPD for surge protection

• Compatible with older Huawei -V1 inverter range and newer -M0, -H1 inverter range

• 3G/4G router included (note: not available in South Africa units)

Technical Specifications

• Communication Interfaces: WAN, LAN, RS485, MBUS, GSM, GPRS, Digital Input, Analog Input, Digital Output, Active Digital Output

• Max Devices Supported: 80

• Mounting Options: Wall, tabletop, or rail

• Warranty: As per Huawei standard

Why Choose Huawei SmartLogger 3000A?

• Centralized control and monitoring of multiple PV inverters

• Easy installation and configuration for large solar systems

• Compatible with a wide range of Huawei inverter generations

• Reliable communication and built-in protection for long-term stability
