Sigenergy | SIG-80M1-HYA | 80kW | Hybrid Inverter

Sigenergy M1 80kW Hybrid Inverter

#2:  SIG-80M1-HYA | Storage Systems | Hybrid Inverter

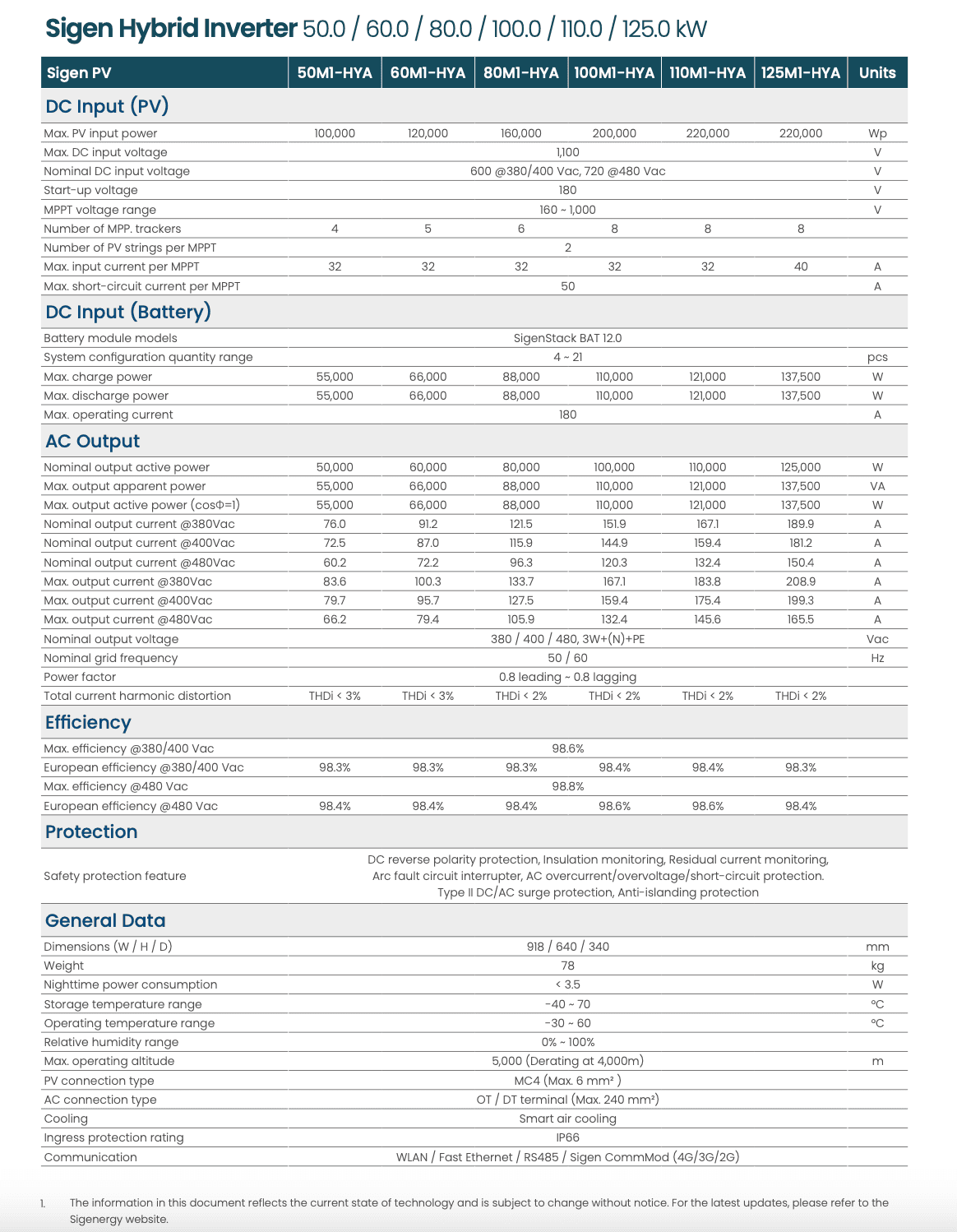

Sigen 80kW PV Inverter Datasheet

Sigen 80kW PV Inverter Warranty

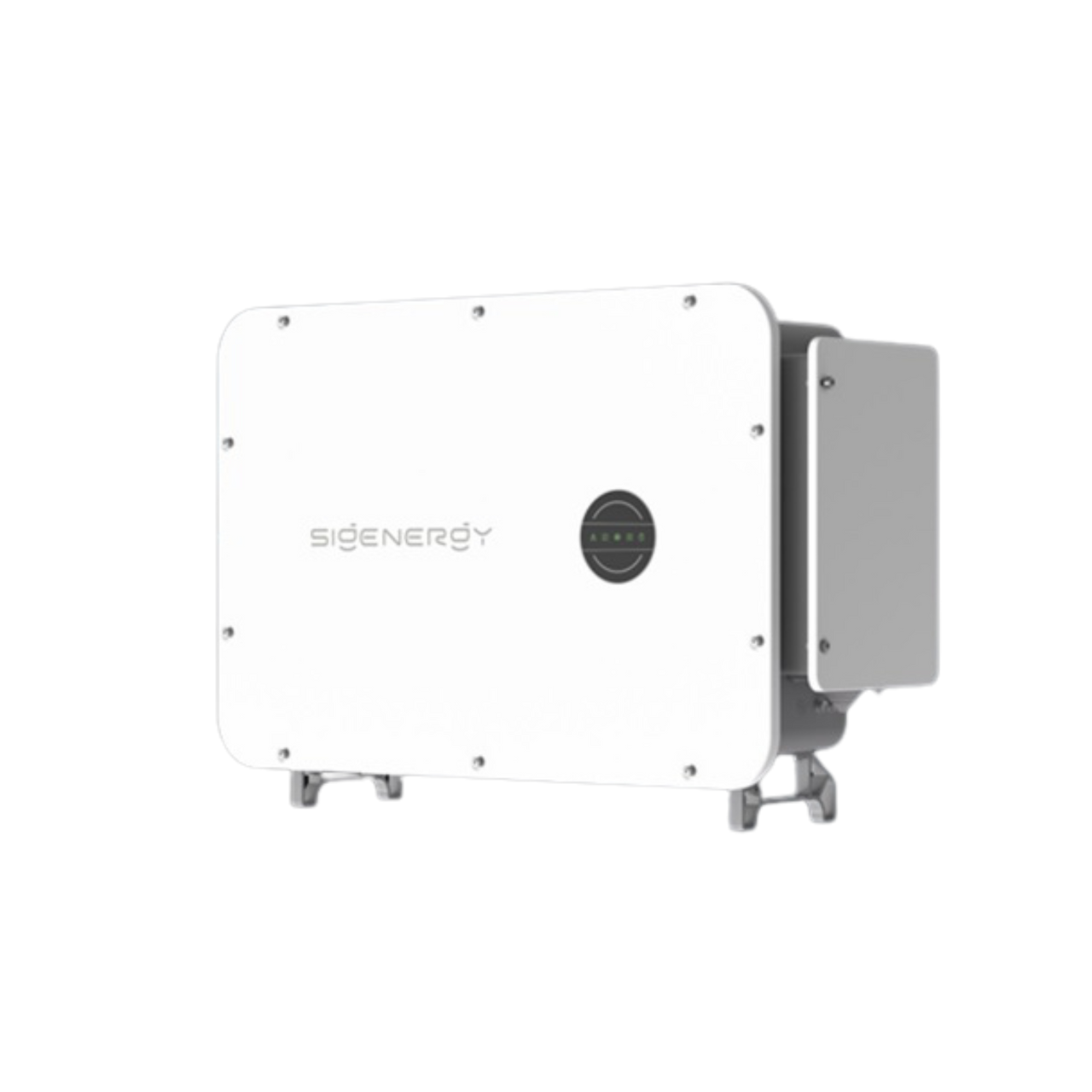

Sigenergy M1 80kW Solar PV Inverter – High Efficiency, Safe & Scalable

The Sigenergy M1 80kW Solar PV Inverter is a premium solution for commercial and industrial PV + ESS applications. Designed for maximum efficiency, safety, and scalability, it simplifies installation, reduces costs, and ensures reliable energy management.

As one of the smallest and lightest inverters in its power class, it ensures cost-effective transport, simplified installation, and long-term reliability.

Ideal applications are: Commercial rooftops and solar farms, Industrial energy storage systems, Grid-tied and hybrid PV + ESS installations.

Designed with a reserved battery port, the inverter supports seamless integration with the SigenStack modular BESS, making it a future-proof solution for growing renewable energy needs.

Key Features

• High Conversion Efficiency – Up to 98.6% efficiency, maximising solar energy output.

• Lightweight & Easy to Install – Simplifies handling, installation, and system maintenance.

• Scalable Performance – Connect multiple units in parallel without a data logger.

• Advanced Safety – Equipped with AFCI detection and instant PV reverse connection alerts for maximum protection.

• Durable & Weatherproof – IP66-rated, ensuring reliability in challenging outdoor environments.

• Battery-Ready – Future expansion possible with the SigenStack modular BESS.

Technical Specifications

General Specifications

• Rated Power: 80,000 W

• Efficiency: 98.6%

• Weight: 78 kg

• Dimensions: 918 × 640 × 340 mm

• Operating Temperature Range: -30°C to 60°C

• Connection Type: MC4

Electrical Performance

• Maximum PV Input Power: 160,000W

• Maximum DC Input Voltage: 1,100 V

• Maximum AC Output Current: 133.7 A

• Number of MPP Trackers: 6

• PV Strings per MPPT: 2

Why Choose the Sigenergy M1 80kW PV Inverter?

• Optimized for commercial and industrial PV + ESS systems.

• Reduces installation time and operational costs.

• Delivers high energy efficiency and reliable performance.

• Compatible with a wide range of batteries and energy storage systems.

• Lightweight design, savings on transportation and installation costs.

• Safe & ReliableIndustry-leading AFCI detection and instant PV reverse connection alerts.

• Easy Maintenance, Expandable & Flexible - Supports parallel connections and easy upgrades to larger energy storage systems.
