SolarEdge P801 Optimiser 800W MC4 2x72 Cell 0.9m/2.2m £40+vat

* The minimum order quantity for this product is 4 units.

£48.00 incl. VAT

Product description

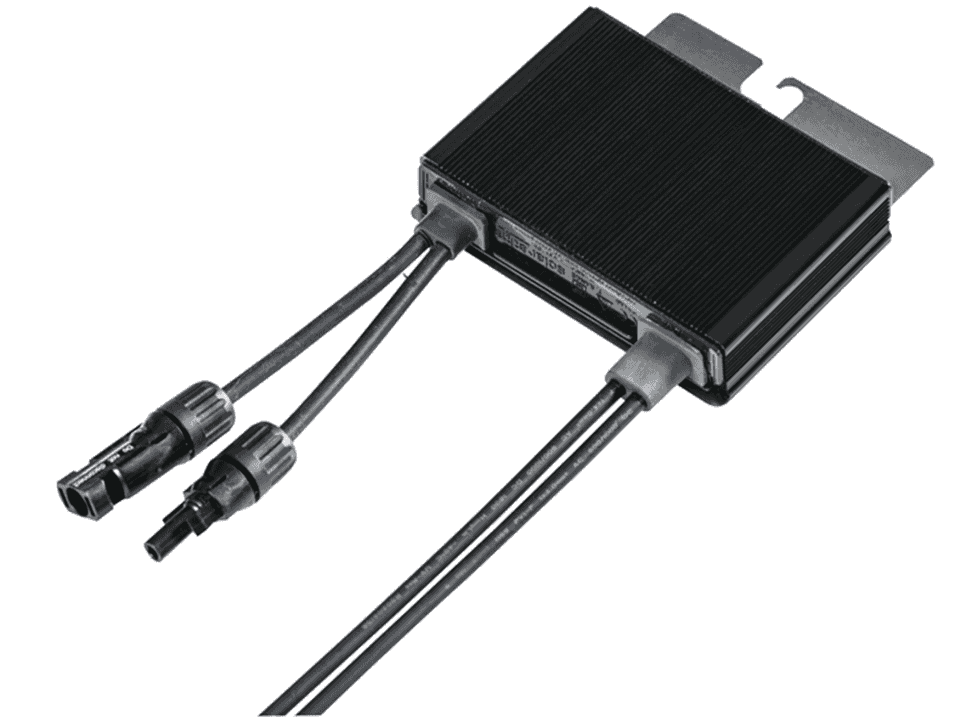

SolarEdge P801 Optimiser 800W MC4 2x72 Cell 0.9m/2.2m

#1: P801-MC4
#3: 3479#4178

SE P801 Optimiser Data Sheet

SE P801 Optimiser Installation Manual

SE P801 Optimiser Warranty

SE P801 Optimiser Certification

Minimum order: 4 Units

P801-4RMLMRY

For 72 cells, 2 in series (landscape), 125V, input 0.9m, output 2.2m

The most cost effective solution for commercial and large field installations

Specifically designed to work with SolarEdge inverters
Up to 25% more energy
Superior efficiency (99.5%)
Balance of System cost reduction; 50% less cables, fuses and combiner boxes, over 2x longer strings lengths possible.
Fast installation with a single bolt
Advanced maintenance with module-level monitoring
Module-level voltage shutdown for installer and firefighter safety
Use with two PV modules connected in series or in parallel

This optimiser is ideal for commercial installations allowing the connection of two panels to one power optimiser.

This optimiser is compatible with large SolarEdge inverters (SE-16000 and up) only.

Weight: 1.05 kg
Min PPT Voltage: 13 V
Max PPT Voltage: 105 V
DC Startup Voltage: 13 V
DC Shutdown Voltage: 13 V
Max Input Voltage: 125 V
Max DC Power: 800 W
Max AC Power (5 Minutes): 0 W
Surge AC Power (1 Second): 0 W
Max DC Current: 11.75 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 2
Euro Efficiency: 98.6 %
Transformer: N/A
MPPT Quantity : 1
Has Integrated DC Switch: No
Warranty: 25 years
