Victron Quattro 48/8000/110-100/100 230V & 10.24kwh LiFeP04 GSL battery
# 8 110829759-LG
Quattro 48 Data Sheet
Quattro 48 Manual
Automatic discount £5k+ vat spend: 3%
Automatic discount £7.5k+ vat spend: 4%
Automatic discount £10k+ vat spend: 5%
*Collections are not permitted due to health & safety regulations*
Victron Quattro 48/8000/110-100/100 230V
1 x GSL 10.24kwh LiFeP04 battery. For an additional 10.24kwh battery please add GSL battery to your basket. Up to 4 batteries in total can be connected to each Multiplus
2 x 60A 12/24/48V Victron SmartSolar MPPT controller up to 250V solar input with Bluetooth (up to 6880w of solar)
Pair of T-branch MC4 adapters (T-MC4)
250A 12/24/48V automatic thermal single pole DC circuit breaker
80A 12/24/48V automatic thermal single pole DC circuit breaker
VE.Can to CAN-bus BMS cable
All-in-one solar power solution
The 8kW Victron Quattro is a powerful true sine wave inverter, a sophisticated battery charger and a high-speed AC transfer switch in a single compact enclosure. The bigger brother of the Multiplus range, this unit is designed for industrial and commercial systems with multiple AC sources and differential loading, in addition to larger 3-phase systems.
The Quattro can take an inputs from a generator and grid supply. It can be used in conjunction with a battery bank and solar PV inverter as an energy storage system. The unit has two AC outputs, one being programmable to only operate when shore/grid power is available; designed for heavy loads such as washing machines etc.Up to 10 Quattro units can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.
DC Input: 38-66V (48V)
Continuous Output Power: 8000VA (7000W)
Peak Power: 16,000
Maximum Efficiency: 96%
Zero-Load Power: 8-35W
AC Input: 187-265VAC 45-65HZ
Max Charge Current: 110A (48V)
AC Transfer Relay: 2 x 100A
Weight: 41kg (48V)
Warranty: 5 years
Available in 24V and 48V models.

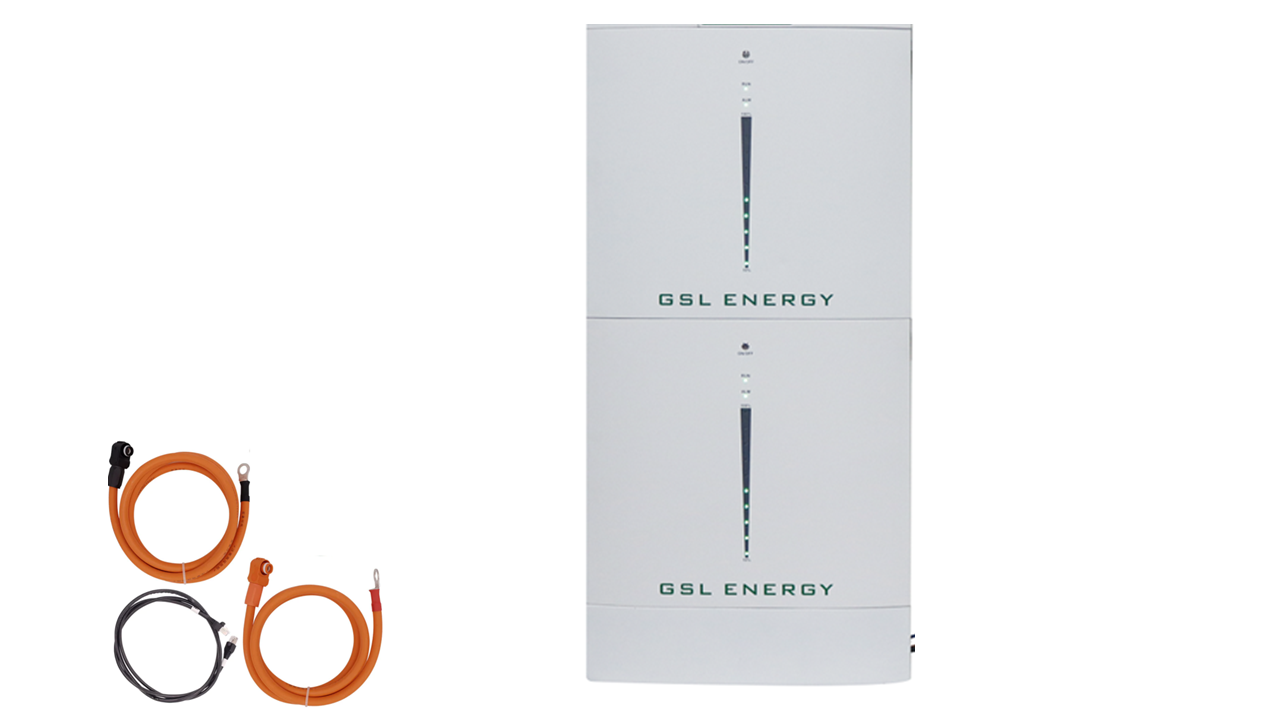

GSL 10.24kwh battery
1. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
2. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
3. Compatible to mains voltage or generator power, auto restart while AC is recovering.
4. Users can flexibly match battery capacity, standard battery packages or external batteries.
5. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
6. Integrated design, Easy transportation and installation.
7. Overload/Over temperature/short circuit protection.
9. Our products are CE/ ROSH/ VDE/ MSDS/ UN38.3/ IEC approved, meeting various certification requirements for different countries.
LiFePO4 LFP Battery, stable and safe.
Module, pack, system, triple protection.
Modulat design, single person can carry and install it.
Plug and play, 30 min quick installation.
Space saving: 0.15 sqm foot print.
Dimensions per battery: 621 x 214 x 550
Net weight per battery: 93kg
Max charging current: 100A
Max continuous charging current: 120A
Battery capacity: 200AH
