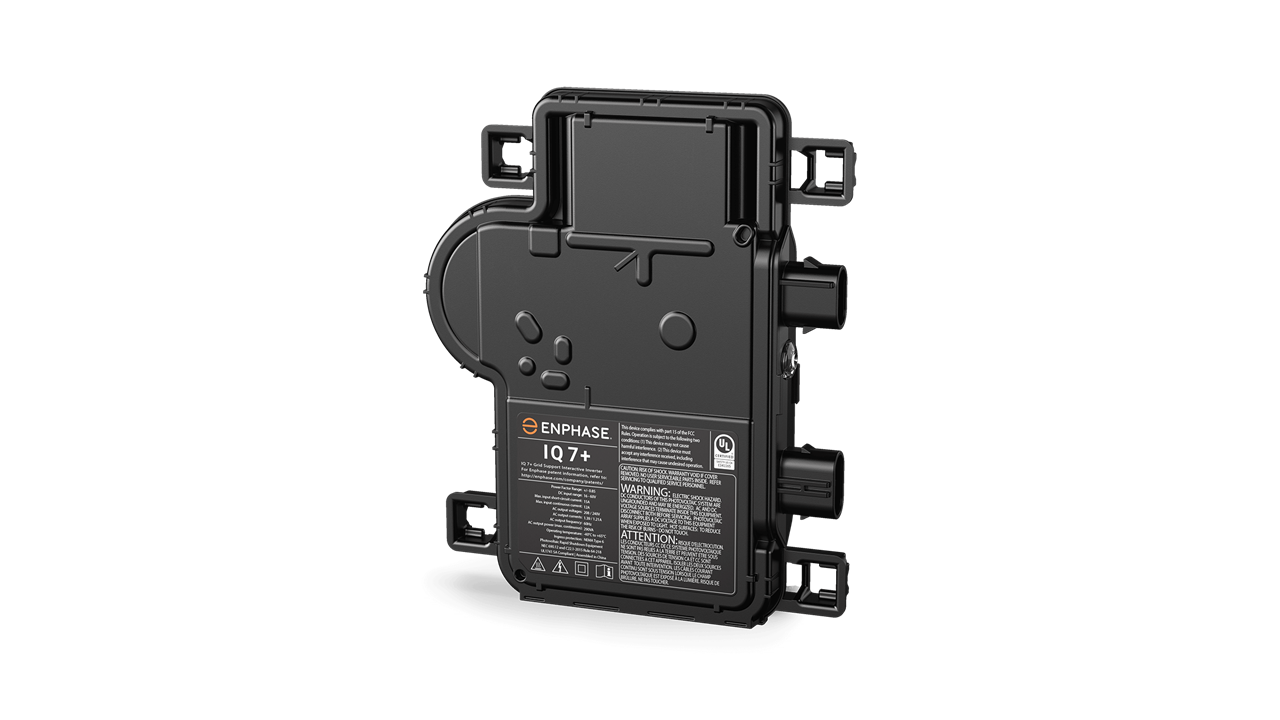

Enphase IQ7 Plus 60 and 72 cell MC4 integrated Three Phase Microinverter 230 & 400VAC £118 + vat

£141.60 incl. VAT

Enphase IQ7 Plus 60 and 72 cell MC4 integrated Three Phase Microinverter 230 & 400VAC £118 + vat

£141.60 incl. VAT
Product description

Enphase IQ7 Plus 60 and 72 cell MC4 integrated Three Phase Microinverter 230 & 400VAC

#1: EN-IQ7PLUS-72-M-INT-3PH Inverters - Micro Inverter Units

Pdf free icon Enphase IQ7 Data Sheet

Pdf free icon Enhpase IQ7 User Manual

Pdf free icon Enphase IQ7 Declaration of Conformity

Automatic discount for 14+: £6/unit

Automatic discount for 22+: £8/unit

*Collections are not permitted due to health & safety regulations*

Rating: 440W
Phases: 3

Product features

  • High performance version of the seventh-generation IQ platform
  • Smart-Grid ready
  • Easily integrated with the Gateway-S™ and Enphase™ monitoring and analysis software
  • Easy to install thanks to lightweight design and improved two-wire cabling
  • Double insulated housing, protection class II
  • Modular design allows simple expansion of system as required
  • Ultra reliable – system keeps working even if a single panel/microinverter fails or panel slips into shade
  • Mobile app allows enhanced control and monitoring possibilities


Product specification

  • Commonly used module pairings: 295W - 460W +
  • Module compatibility: 60-cell/120 half-cell and 72-cell/144 half-cell PV modules
  • Peak output power: 366 VA
  • Operating range: 18V - 58V
  • IP Rating: IP67



Weight: 1.05 kg
Rated Power: 440 W
Min PPT Voltage: 27 V
Max PPT Voltage: 45 V
DC Startup Voltage: 16 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 60 V
Max DC Power: 400 W
Max AC Power (5 Minutes): 295 W
Surge AC Power (1 Second): 290 W
Max DC Current: 12 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 96.5 %
Transformer: HF
MPPT Quantity : 1
Has Integrated DC Switch: No
Warranty: 25 years
