Fox ECS HV ECM2900 V2 Connector Type A, 20.16kWh 1x Master 6x Slave

Β£4,487.12 + VAT

Fox ECS HV ECM2900 V2 Connector Type A, 20.16kWh 1x Master 6x Slave

Β£4,487.12 + VAT
Contact Us
Product description

Fox ECS HV ECM2900 Connector Type A, 20.16kWh 1x Master 6x Slave

#1:FE-HV-EC-A-7-2.9-20.3


Pdf free icon Fox ECS2900 Datasheet

Pdf free icon Fox ECS2900 Manual

Pdf free icon Fox ECS2900 Warranty

Β

Compatible with Fox HV chargers only available on our Fox HV main page

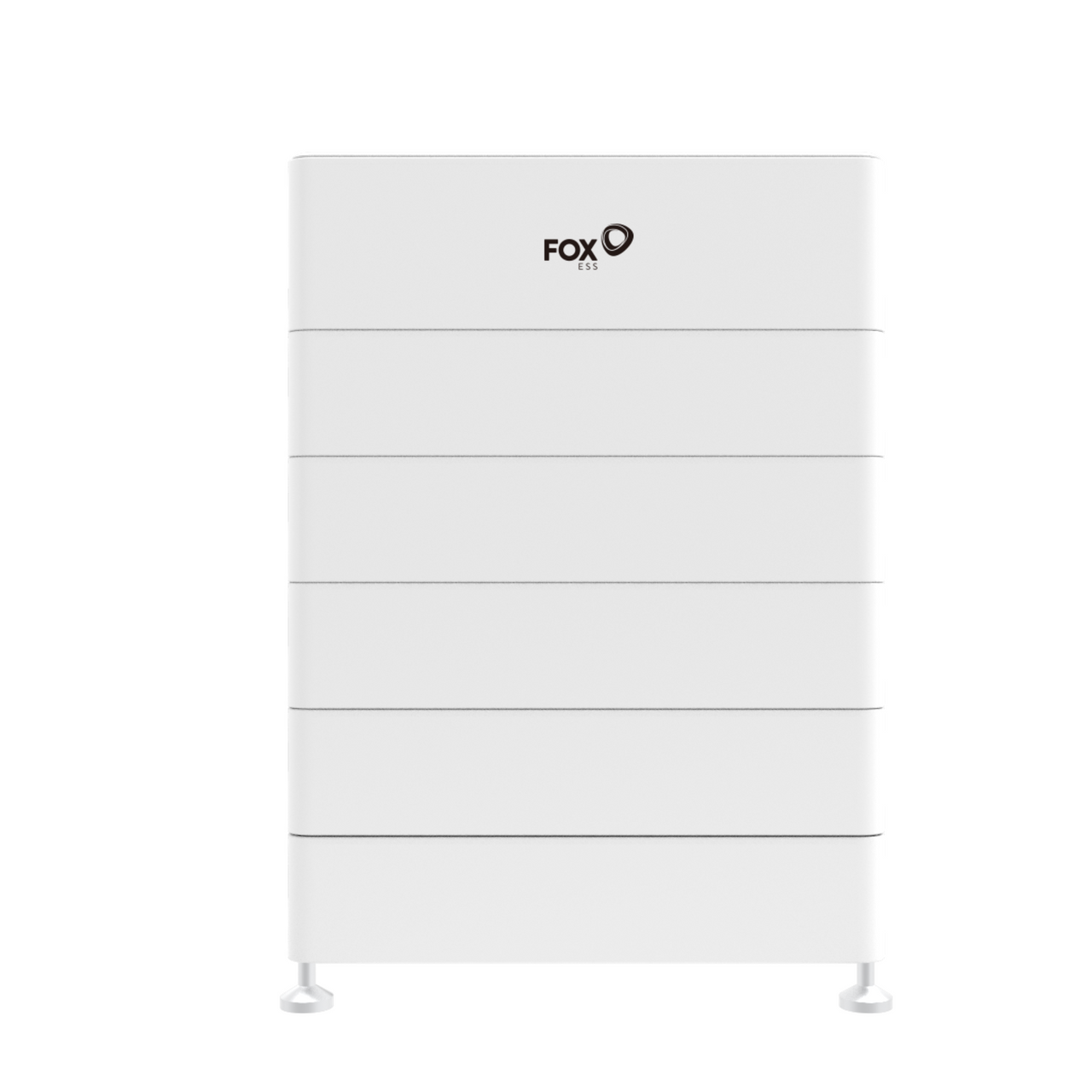

Fox ECS 2.88kWh HV Energy Cube – Scalable Battery Storage System

The Fox ECS Energy Cube is a high-performance, modular battery storage solution designed for maximum flexibility in residential and small commercial solar energy systems. This package includes:

  • 1 x Master Battery: FE-HV-ECM-2900-4A2C

  • 5 x Slave Batteries: FE-HV-ECS-2900-4A2C

The modular design allows you to easily expand your storage up to 20.16 kWh by adding additional batteries in series. Its plug-and-play installation ensures a fast and hassle-free setup, saving valuable time for installers.


Key Features:

  • Capacity: 2.88 kWh per module, scalable to 20.16 kWh

  • Depth of Discharge: 90% for maximum usable energy

  • High Voltage Design: Optimized for high-efficiency systems

  • Wide Temperature Tolerance: Reliable performance in harsh conditions

  • Communication: CAN/RS485 for system integration and monitoring

  • Easy Installation: Plug-and-play modular setup


Technical Specifications:

  • Weight: 32.4 kg per module

  • Battery Type: Lithium-Ion (LiFePO4)

  • Nominal Energy: 2,880 Wh

  • Voltage: 52 V

  • Continuous Discharge Rate: 1,440 W

  • Maximum Discharge Rate (5 Minutes): 2,880 W

  • Surge Discharge Rate (15 Seconds): 3,000 W

  • Maximum Charge Rate (5 Minutes): 2,880 W


The Fox ECS Energy Cube is ideal for homeowners or installers looking for a flexible, high-efficiency, and expandable battery storage solution. Its modularity and smart communication features make it a perfect choice for scalable solar energy systems.
