Fox Energy Cube HV ECM4100 V2 16.12kWh 1x Master 3x Slave

Fox Energy Cube HV ECM4100, 16.12kWh 1x Master 3x Slave

#1: FE-HV-EC-4-4.1-16.4

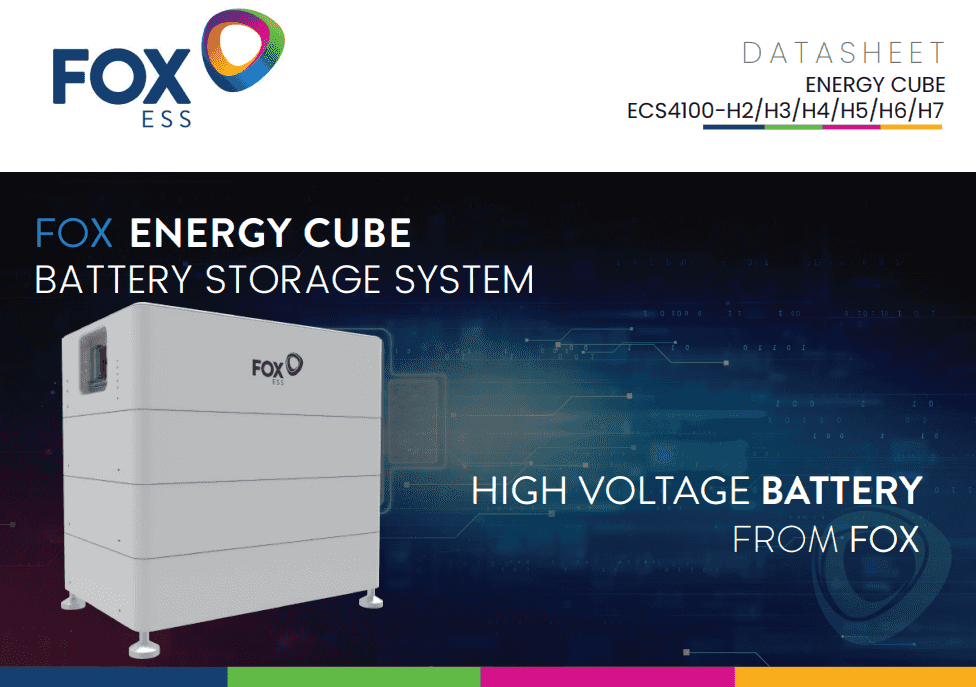

ECM4100 Data Sheet

ECM4100 User Manual

ECM4100 Warranty

Compatible with Fox HV chargers only available on our Fox HV main page

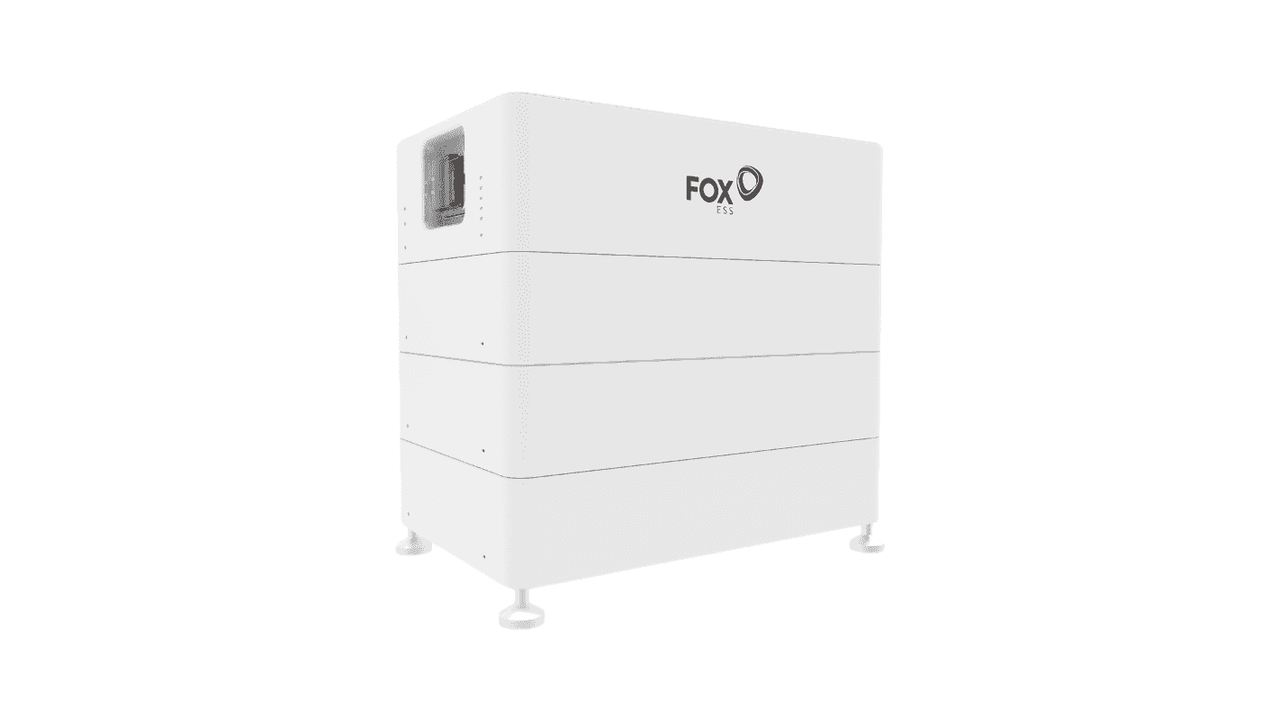

Fox Energy Cube HV ECM4100 – 16.12kWh High Voltage Battery Stack

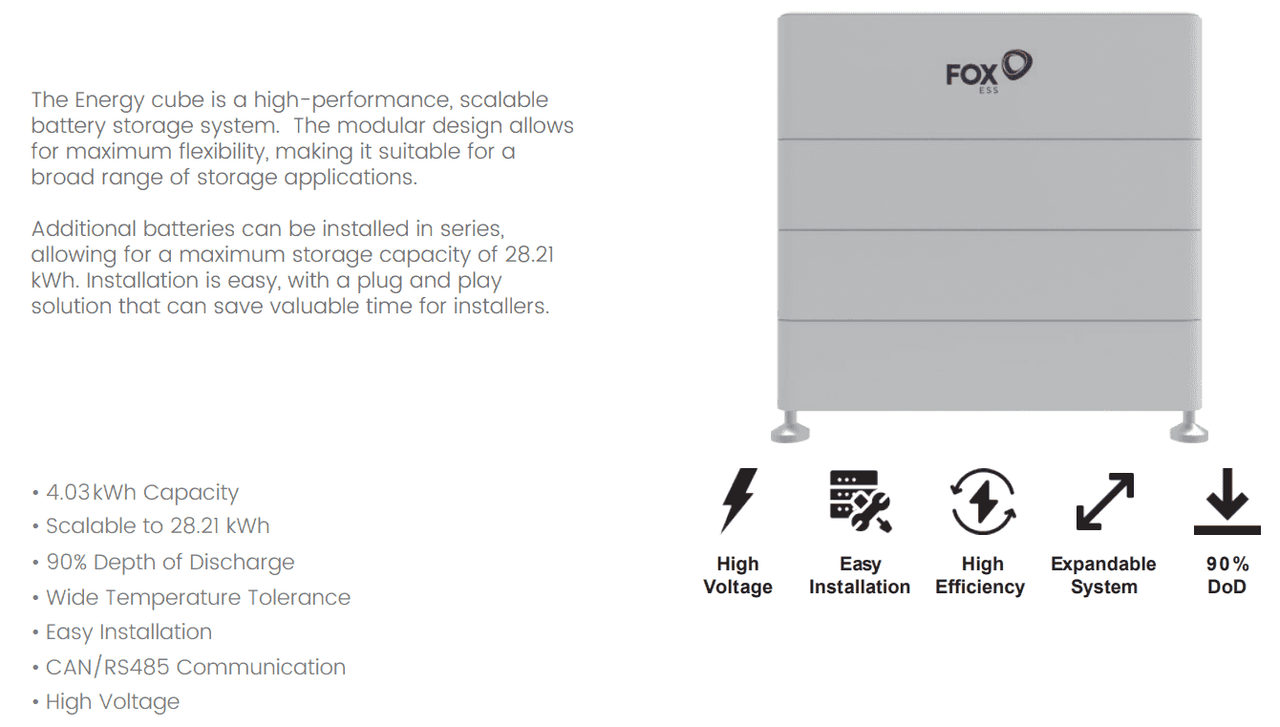

The Fox Energy Cube HV ECM4100 is a high-performance, modular battery storage solution designed for residential and commercial energy storage. This system includes 1 Master unit and 3 Slave units, providing a total usable storage capacity of 16.12kWh. Built with advanced lithium technology, it offers reliability, scalability, and long-term performance for clean energy storage.

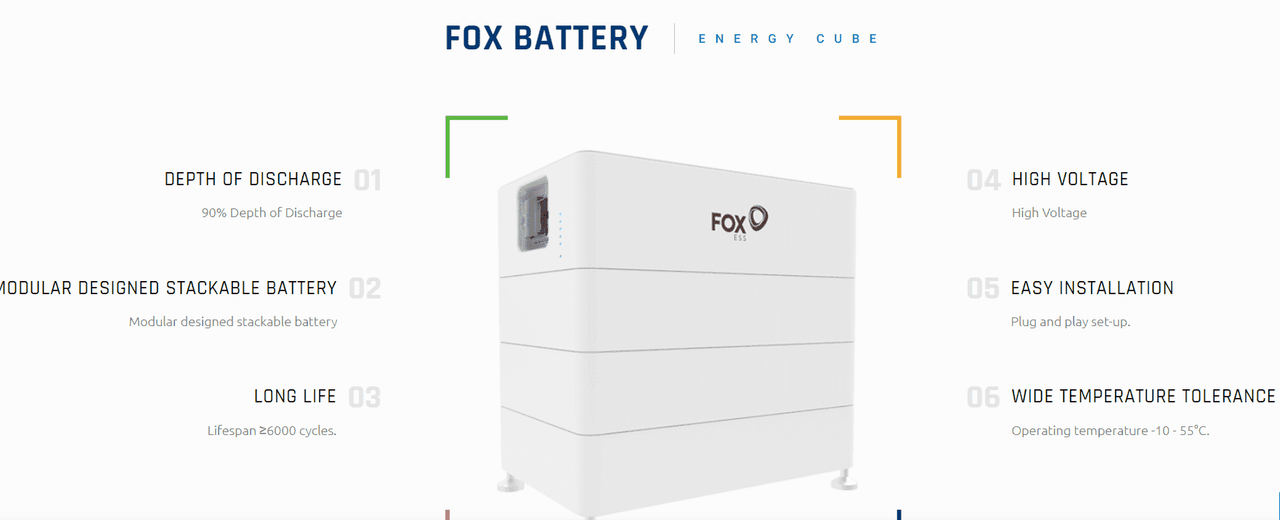

Key Features

• 16.12kWh Storage Capacity – (1 Master + 3 Slaves) included in this bundle

• Scalable Design – expand up to 7 modules in series (maximum 28.21kWh)

• High Depth of Discharge – 90% DoD for maximum usable energy

• Wide Temperature Tolerance – designed to perform in diverse climates

• Plug-and-Play Installation – saves time and reduces installation complexity

• Future Ready – additional ECM4100 modules can be added post-installation

• Smart Communication – CAN/RS485 protocol for seamless inverter integration

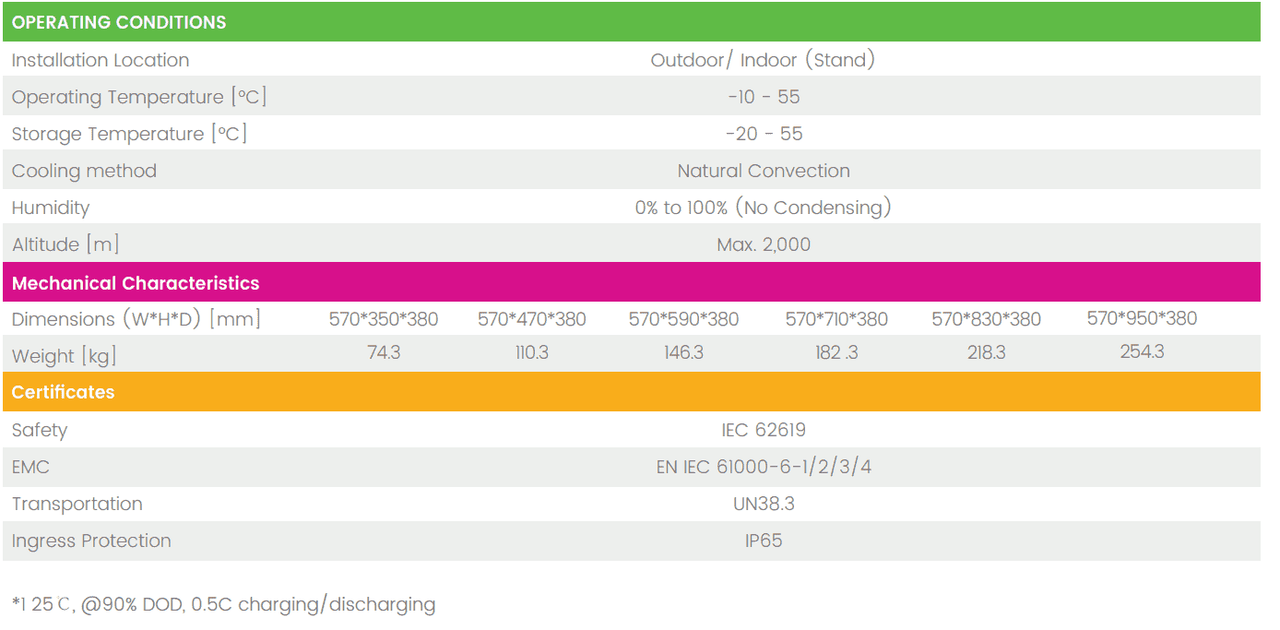

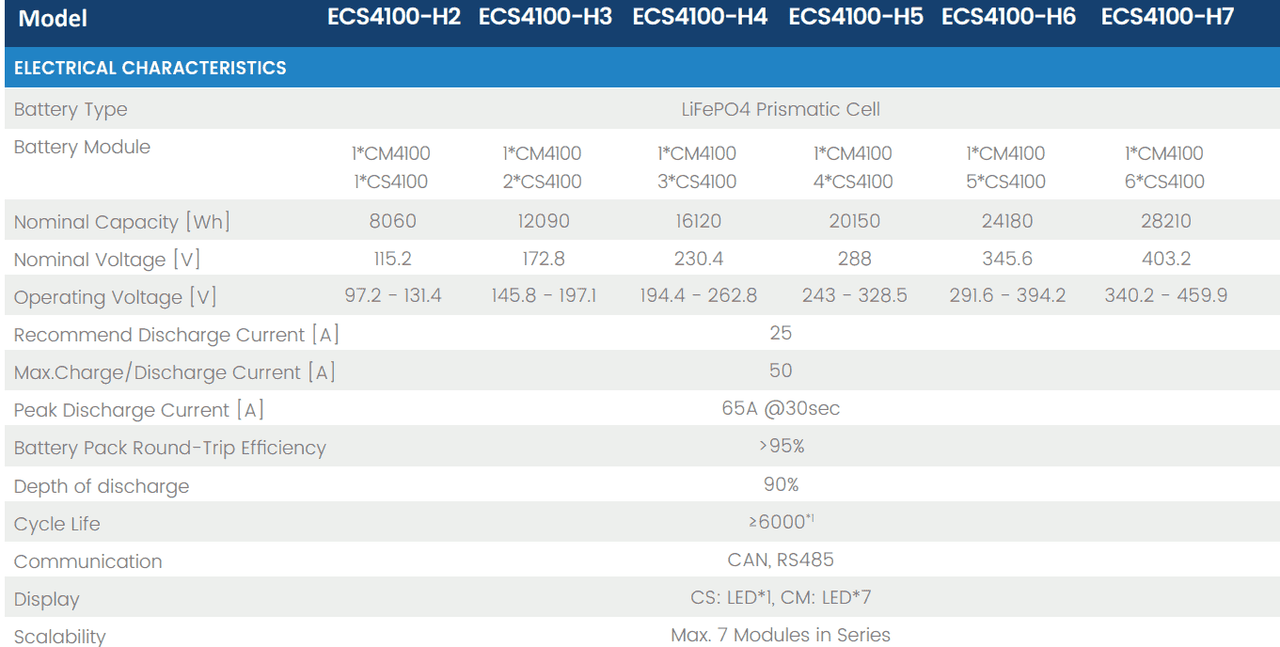

Technical Specifications

• Battery Type: Lithium-ion (HV)

• Capacity per Module: 4.03kWh

• Total Capacity (Included Stack): 16.12kWh

• Maximum Scalable Capacity: 28.21kWh

• Depth of Discharge: 90%

• Communication: CAN/RS485

• Weight (Stack of 4): 74.3 kg

• Dimensions (W x H x D): 570 x 350 x 380 mm

• Series Limit: Maximum of 7 modules (must include 1 Master)

Why Choose Fox Energy Cube HV ECM4100?

Fox ESS is known for producing smart, reliable, and future-proof energy storage solutions. The ECM4100 battery stack combines high capacity, simple expandability, and robust communication protocols, making it an ideal choice for anyone looking to maximise solar self-consumption, protect against power outages, and reduce grid dependence.
