Fox Energy Cube HV ECM4100 V2 20.15kWh 1x Master 4x Slave

Fox Energy Cube HV ECM4100, 20.15kWh 1x Master 3x Slave

#1: FE-HV-EC-5-4.1-20.5

ECM4100 Data Sheet

ECM4100 User Manual

ECM4100 Warranty

Compatible with Foc HV chargers only available on our Fox HV main page

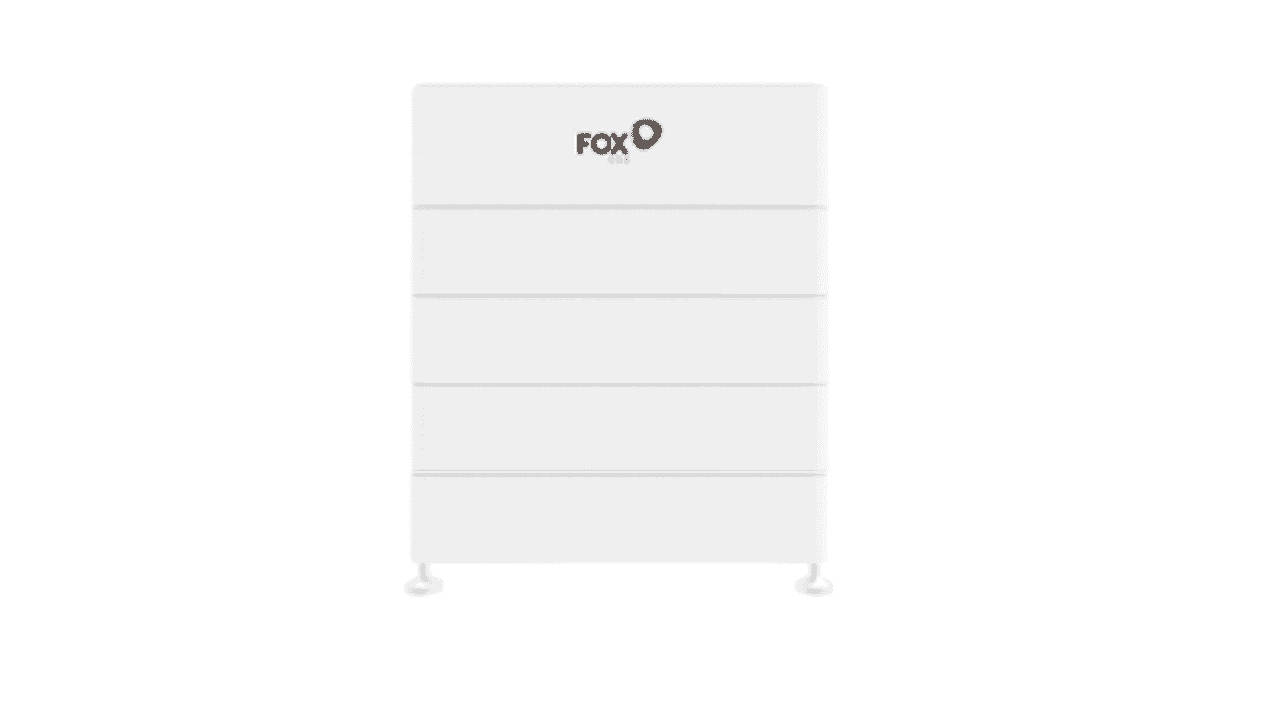

Fox Energy Cube 4.03kWh HV Battery Stack

Overview

This Fox Energy Cube stack is a high-performance, scalable high-voltage battery solution designed for residential and small commercial energy storage systems. With a modular design, it allows flexibility in expanding your battery capacity over time. The stack includes 1 Master and 4 Slave units, providing a total of 20.15kWh usable capacity.

Included Components

• 1 × FE-HV-ECM-4100 Fox Energy Cube 4.03kWh HV Battery (Master)

• 4 × FE-HV-ECS-4100 Fox Energy Cube 4.03kWh HV Battery (Slave)

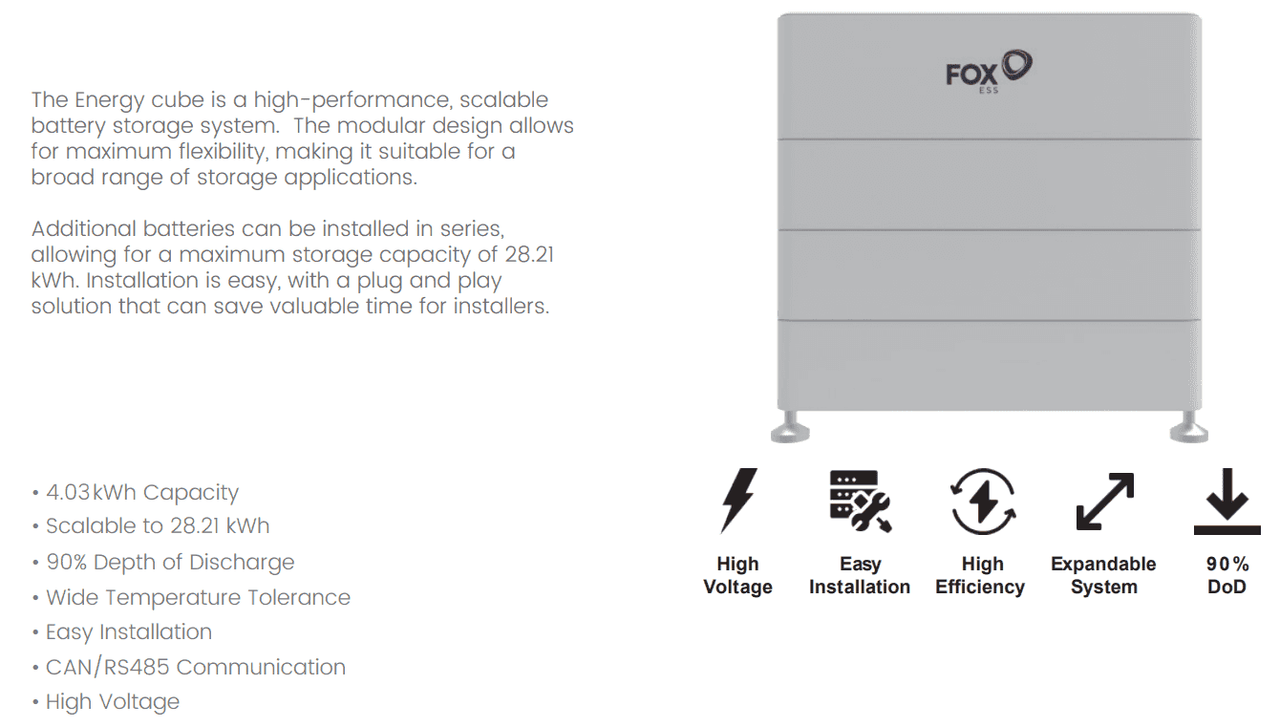

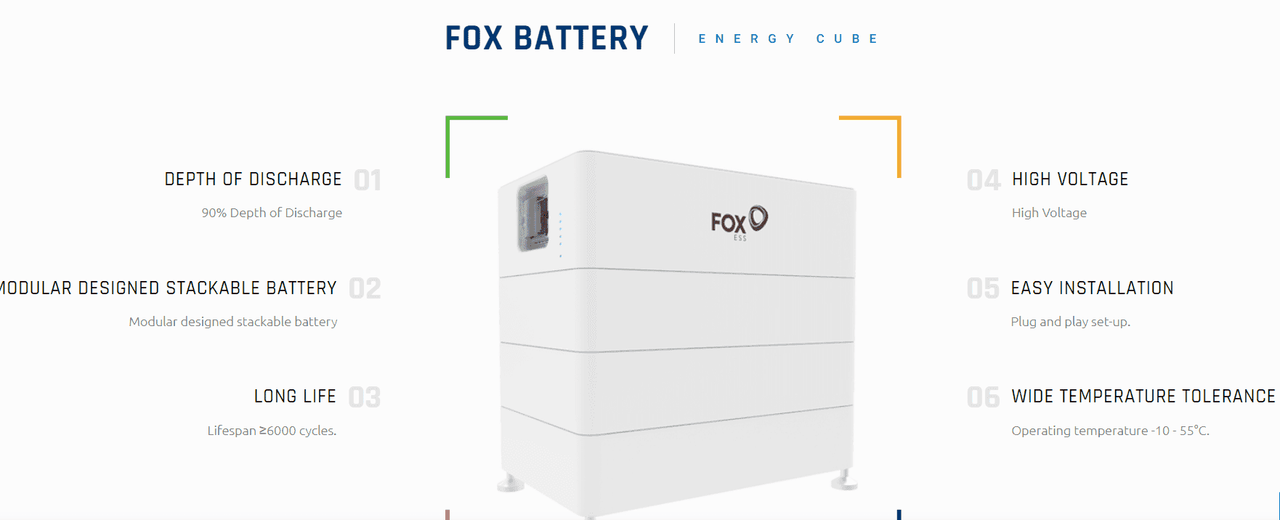

Key Features

• Capacity: 4.03kWh per module

• Scalable up to 28.21kWh (maximum of 7 modules per series)

• Depth of Discharge: 90%

• Wide temperature tolerance for reliable performance in varying climates

• Easy installation with plug-and-play connectivity

• CAN/RS485 communication for system integration

• High-voltage operation for maximum efficiency

• Quick expansion capability post-installation

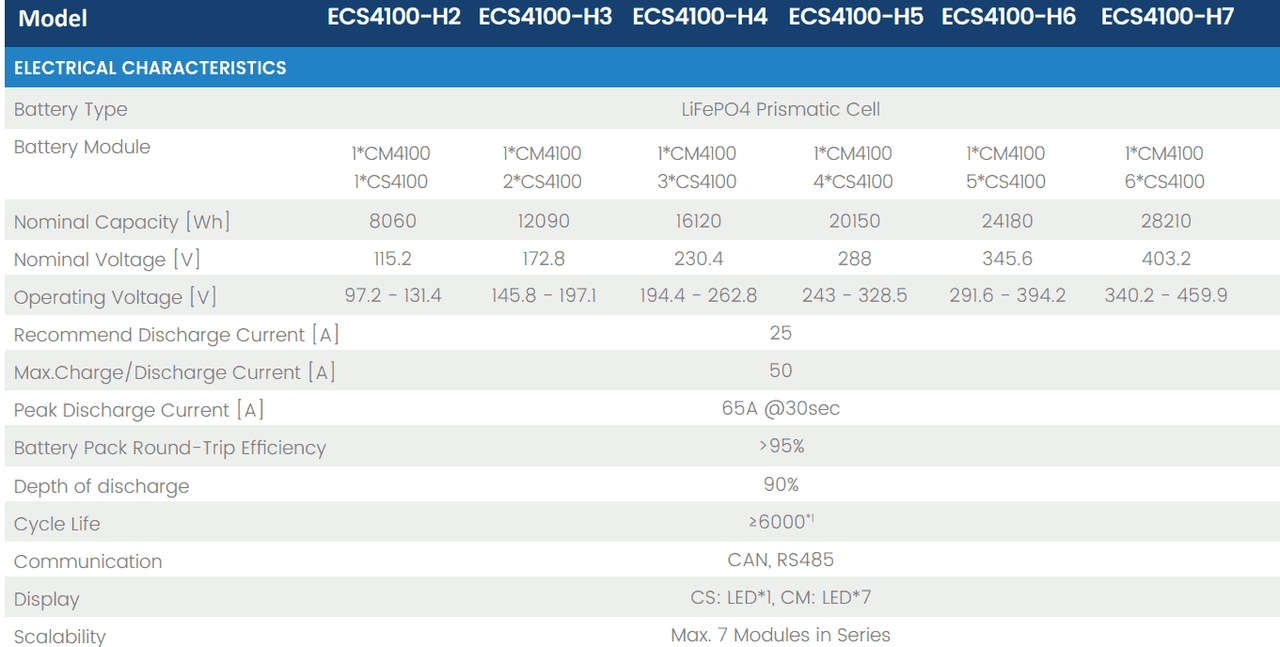

Specifications

• Total Stack Capacity: 20.15kWh

• Weight: 74.3 kg

• Dimensions (W × H × D): 570 × 350 × 380 mm

• Maximum of 7 modules per series (1 Master required)

Benefits

• Scalable design for growing energy needs

• High efficiency and reliable performance

• Easy and fast installation for time-saving setup

• Communication ready for monitoring and integration with compatible inverters

This Fox Energy Cube 4.03kWh stack is ideal for creating a flexible, expandable high-voltage storage system that can grow with your energy requirements.
