Fox Energy Cube HV ECM4100 V2, 28.21kWh 1x Master 6x Slave £9,300 +VAT

£11,160.00 incl. VAT

Fox Energy Cube HV ECM4100 V2, 28.21kWh 1x Master 6x Slave £9,300 +VAT

£11,160.00 incl. VAT
Contact Us
Product description

Fox Energy Cube HV ECM4100, 28.21kWh 1x Master 5x Slave

#1:FE-HV-EC-7-4.1-28.7



Pdf free icon ECM4100 Data Sheet

Pdf free icon ECM4100 User Manual

Pdf free icon ECM4100 Warranty

Suitable for charging from the grid such as Economy 7 & Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understaning Economy 7

Compatible with Foc HV chargers only available on our Fox HV main page

*Collections are not permitted due to health & safety regulations*

This part is made up of the following items:
1 x FE-HV-ECM-4100 Fox Energy Cube 4.03kWh HV Battery (Master)
6 x FE-HV-ECS-4100 Fox Energy Cube 4.03kWh HV Battery (Slave)

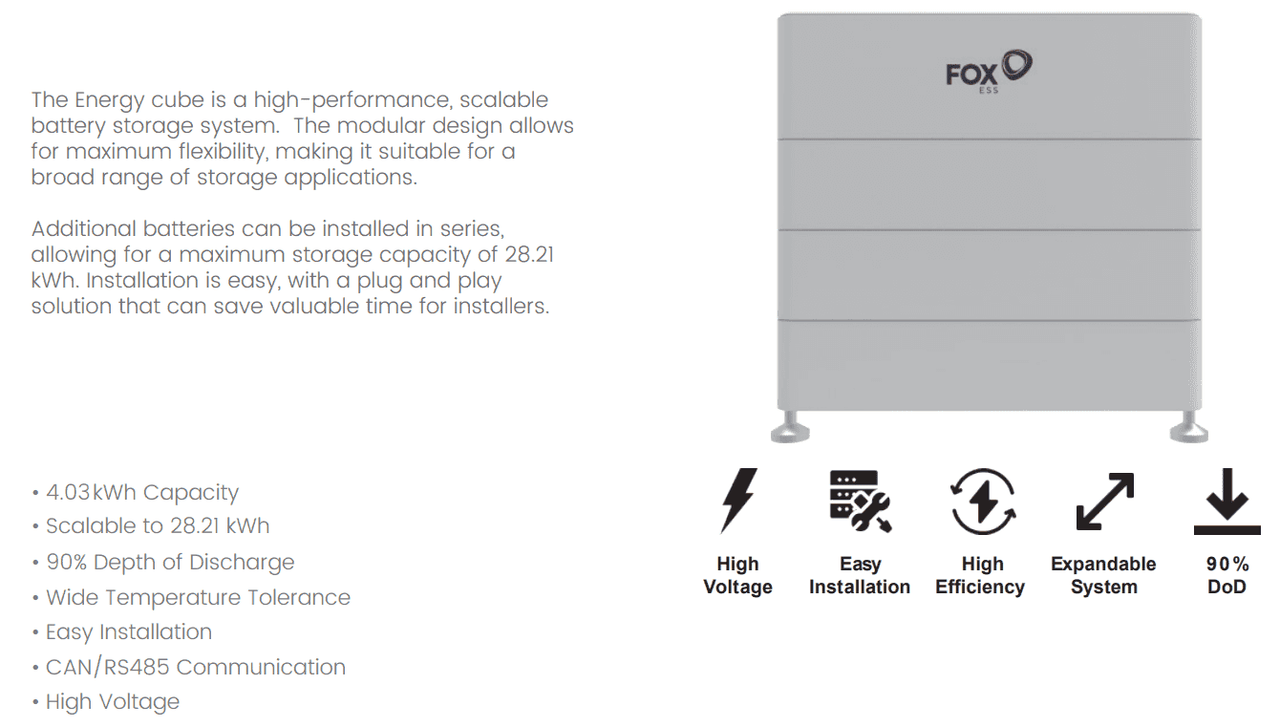

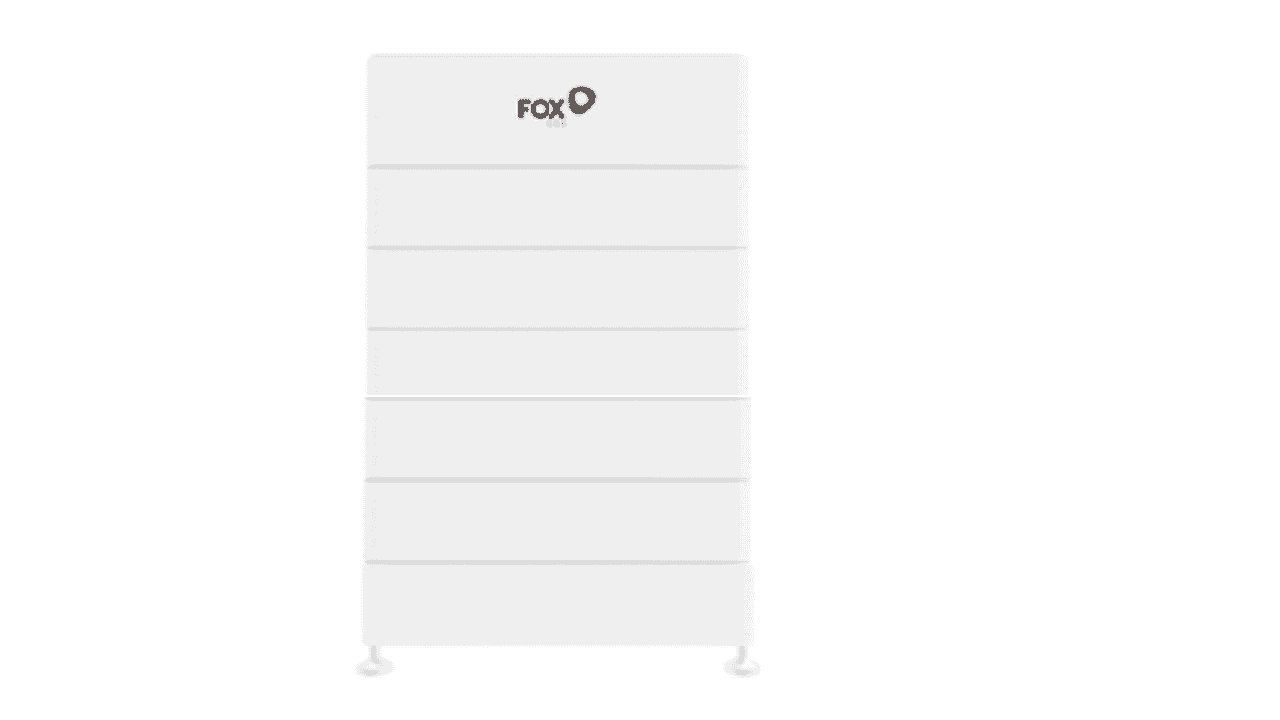

Fox Energy Cube 4.1kWh - Stack of 3 (28.21kWh) Incl. Master


ECM4100
4.03kWh Capacity
Scalable to 28.21kWh
90% Depth of Discharge
Wide Temperature Tolerence
Easy Installation
CAN/RS485 Communication
High Voltage



The quick & easy install feature allows for more ECM4100 battery modules to be added post installation.

Weight: 74.3kg

Dimensions (Width, Hight, Depth): 570mm x 350mm x 380mm

This battery stack allows for a MAXIUMUM OF 7 modules in a series and must include 1 Master
