Fox Energy Cube HV ECM4100 V2, 8.06kWh 1x Master 1x Slave -

Fox Energy Cube HV ECM4100, 8.06kWh 1x Master 1x Slave

#1: 2 x FE-HV-EC-2-4.1-8.2

Please view our battery storage information page for sizing and selecting the right battery storage system for you.

ECM4100 Data Sheet

ECM4100 User Manual

ECM4100 Warranty

Suitable for charging from the grid such as Economy 7 & Octopus Go. For detailed explanation of how to maximise Economy 7 essential information to work out which battery storage options is best for you please visit - Understaning Economy 7

Compatible with Fox HV chargers only available on our Fox HV main page

*Collections are not permitted due to health & safety regulations*

This part is made up of the following items:

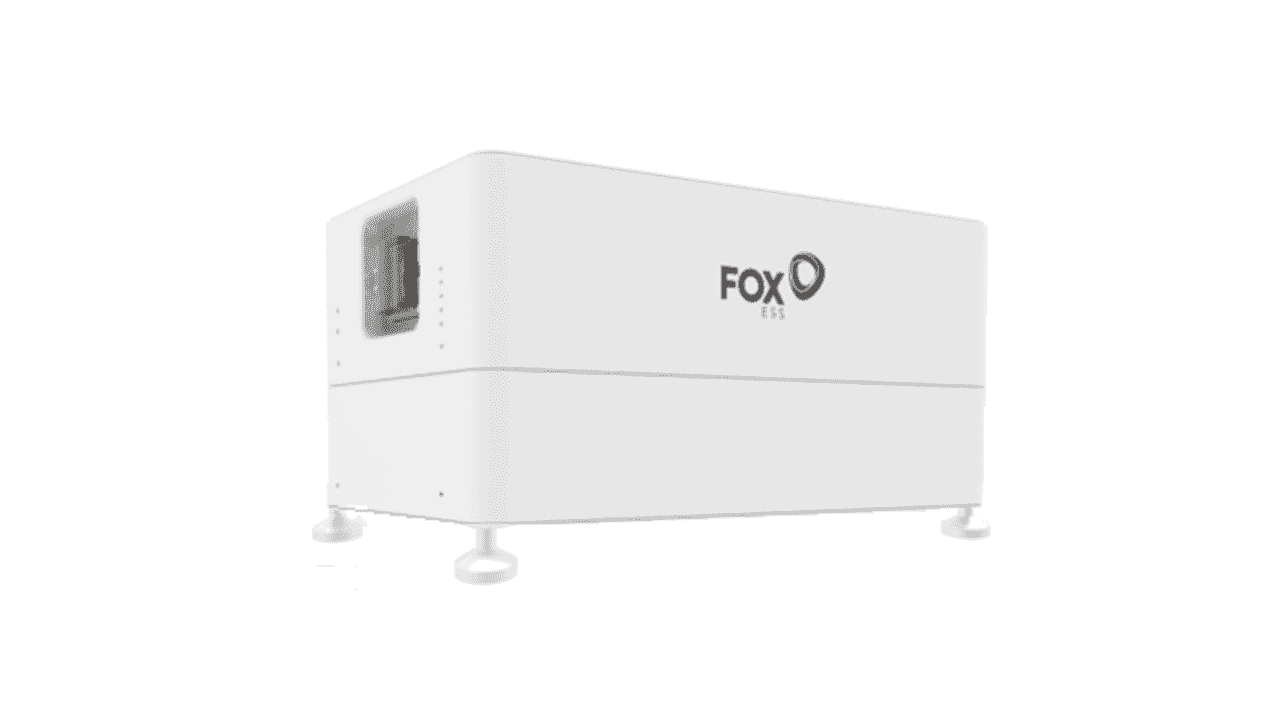

1 x FE-HV-ECM-4100 Fox Energy Cube 4.03kWh HV Battery (Master)
1 x FE-HV-ECS-4100 Fox Energy Cube 4.03kWh HV Battery (Slave)

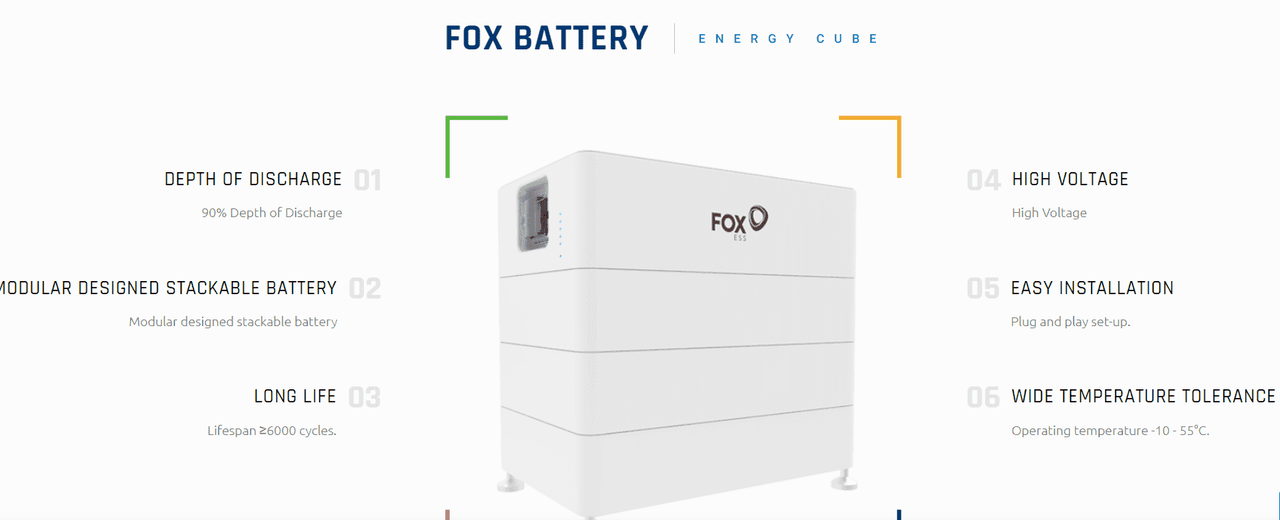

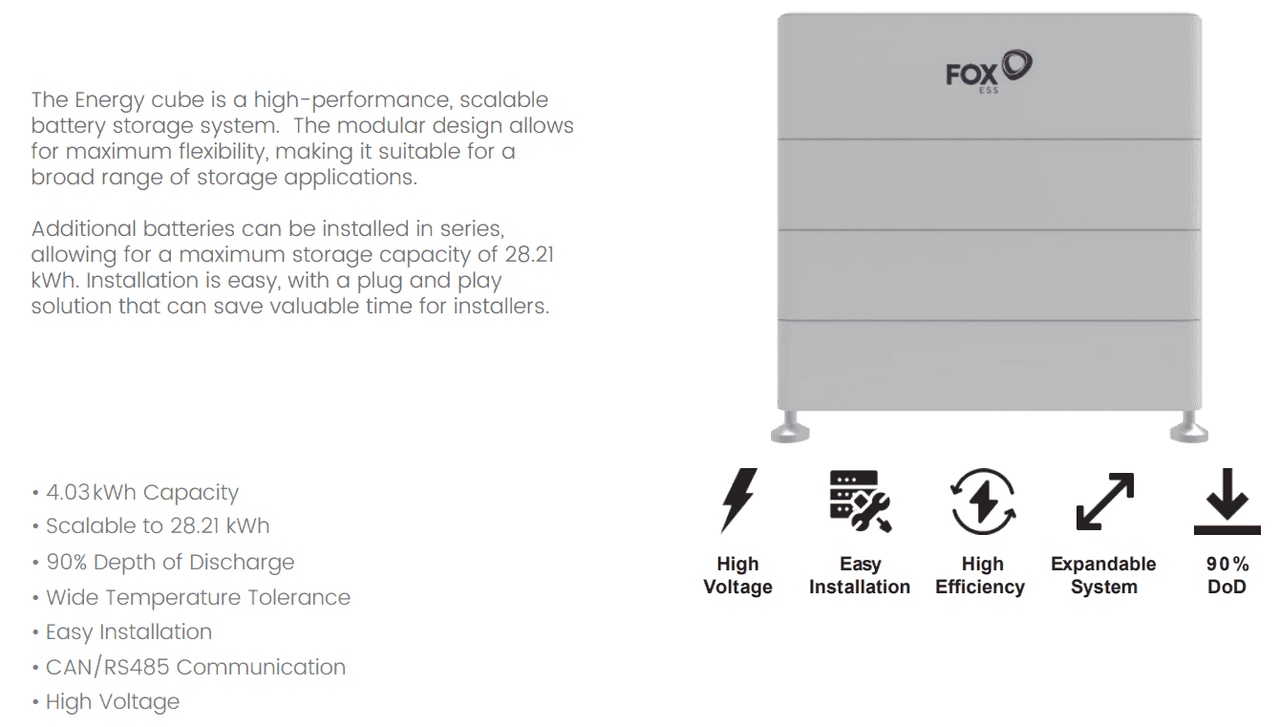

Fox Energy Cube 4.1kWh - Stack of 2 (8.06kWh) Incl. Master

ECM4100
4.03kWh Capacity
Scalable to 28.21kWh
90% Depth of Discharge
Wide Temperature Tolerence
Easy Installation
CAN/RS485 Communication
High Voltage

The quick & easy install feature allows for more ECM4100 battery modules to be added post installation.

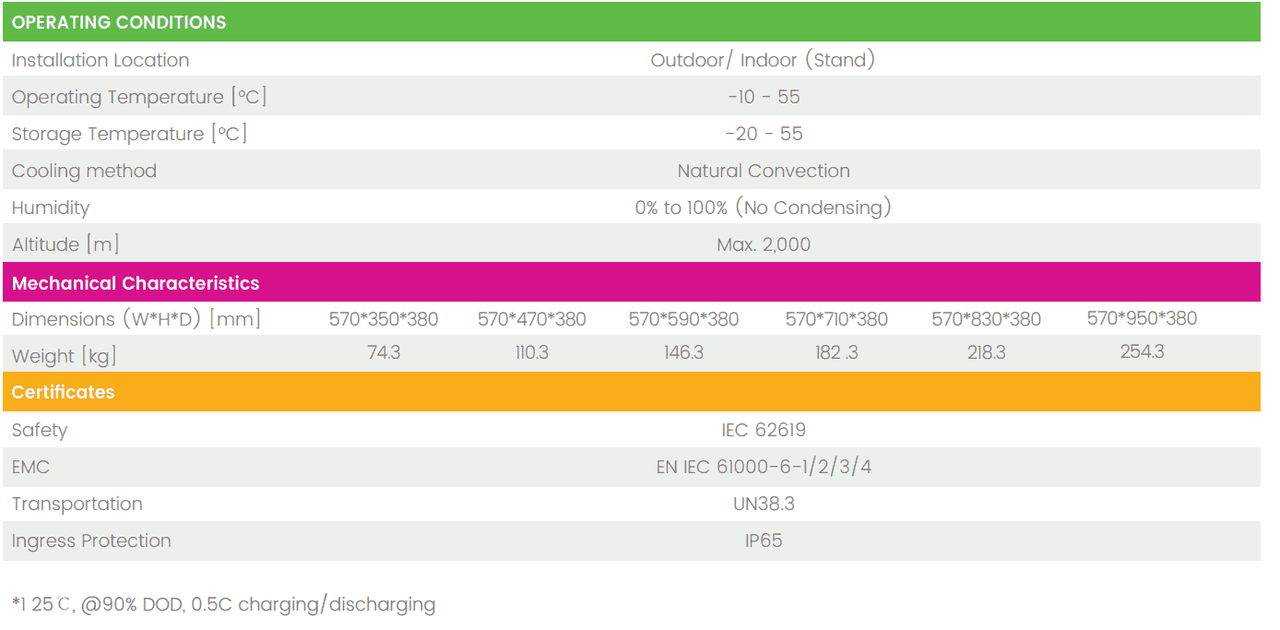

Weight: 74.3kg

Dimensions (Width, Hight, Depth): 570mm x 350mm x 380mm

This battery stack allows for a MAXIUMUM OF 7 modules in a series and must include 1 Master
