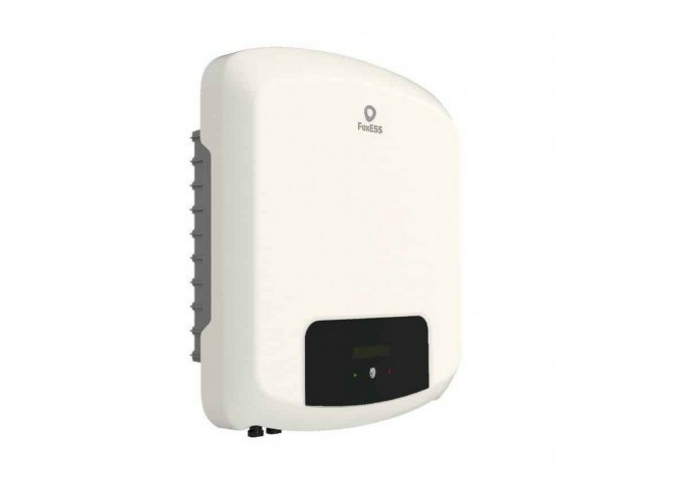

Fox ESS 6kW F Series 1PH Dual Tracker PV Inverter
#2 FE-F6000
FE-F6kW Datasheet
FE-F6kW User Manual
FE-F6kW Installation Guide
FE-F6kW G99 Certification
Introducing the Fox F Series Dual-MPPT pv inverter range, encompassing models from 3.0 to 6.0kW. These high-performance inverters are designed to elevate your solar energy experience. The F Series boasts an IP65 rating and is primed for seamless integration with batteries, ensuring a straightforward upgrade when coupled with the Fox ESS charge controller.
- High Performance: Low start-up voltage, wide voltage range, 97.4% maxium effiency.
- Easy Installation: Flexible configuration, plug and play set-up.
- IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring: Monitor your system remotely via smartphone app or web portal.
*Collections are not permitted due to health & safety regulations*
In order to activate the 10 year product warranty, remember to register your install with Fox online, otherwise it's 5 years as standard.
Please check the warranty document for more information.
Specs:
Weight 15.5 kg
Rated Power: 6,000 W
Min PPT Voltage: 120 V
Max PPT Voltage: 600 V
DC Startup Voltage: 120 V
DC Shutdown Voltage: 601 V
Max Input Voltage 600 V
Max DC Power: 9,000 W
Max AC Power (5 Minutes): 6,000 W
Surge AC Power (1 Second): 0 W
Max DC Current: 25 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 96.8 %
Transformer: HF
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
