Fox ESS High Voltage complete kit: Cube HV ECM2900 11.52kWh & Fox AC 5.0kW charger £3,693.30 +VAT

£4,431.96 incl. VAT

Fox ESS High Voltage complete kit: Cube HV ECM2900 11.52kWh & Fox AC 5.0kW charger £3,693.30 +VAT

£4,431.96 incl. VAT
Contact Us
Product description

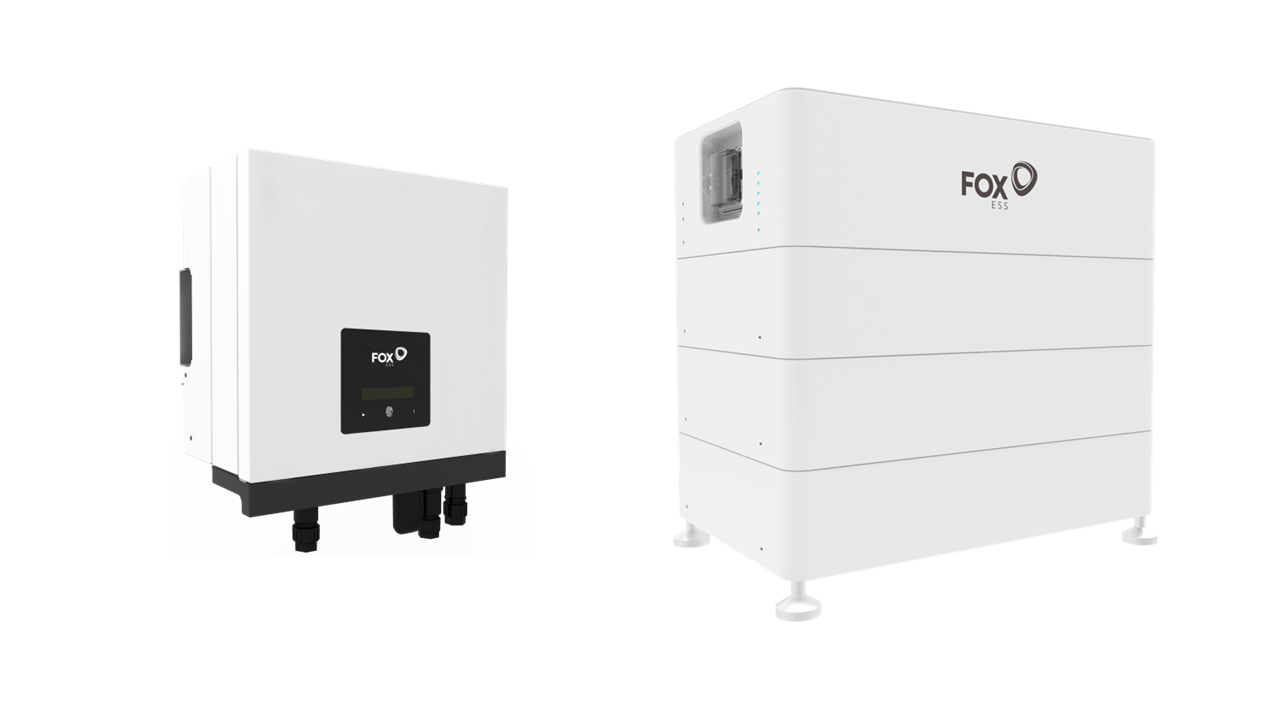

Fox ESS High Voltage complete kit: Cube HV ECM2900 11.52kWh & Fox AC 5.0kW charger


Complete kit includes:


1 x FE-AC1-5.0-ECS2900-3-SL
1 x 1 x FE-HV-ECM-2900-4A2C Fox ECS 2.88kWh HV Battery (Master)-V2.0
3 x FE-HV-ECS-2900-4A2C Fox ECS 2.88kWh HV Battery (Slave)-V2.0

Fox Energy Cube HV ECM2900, 11.52kWh 1x Master 3x Slave

Energy cube is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

    • 2.88kWh Capacity
    • Scalable to 20.16kWh
    • 90% Depth of Discharge
    • Wide Temperature Tolerence
    • Easy Installation
    • CAN/RS485 Communication
    • High Voltage

    The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.

    Weight: 67.1 kg
    Battery Type: Lithium Ion
    Nominal Energy: 2880 Wh
    Depth of discharge: 90.00 %
    Voltage: 115 V
    Continuous Discharge Rate (Normal Use): 5760 W
    Maximum Discharge Rate (5 Minutes): 5760 W
    Surge Discharge Rate (15 Seconds): 7488 W
    Maximum Charge Rate (5 Minutes): 5760 W


    Charger - Fox AC 5.0kW


    The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also available via your smartphone or web portal.


    Uses high voltage batteries FE-HV2600 V2

    IP65 rated - suitable for outdoor installations

    Remote monitoring via web portal or smartphone

    Easy to expand battery capacity


    Dual MPPT - ensure optimal solar production

    High round-trip efficiency of 97% BMS unit required 2 x HV2600 batteries minimum

    CT Clamps and meter are included in the box
