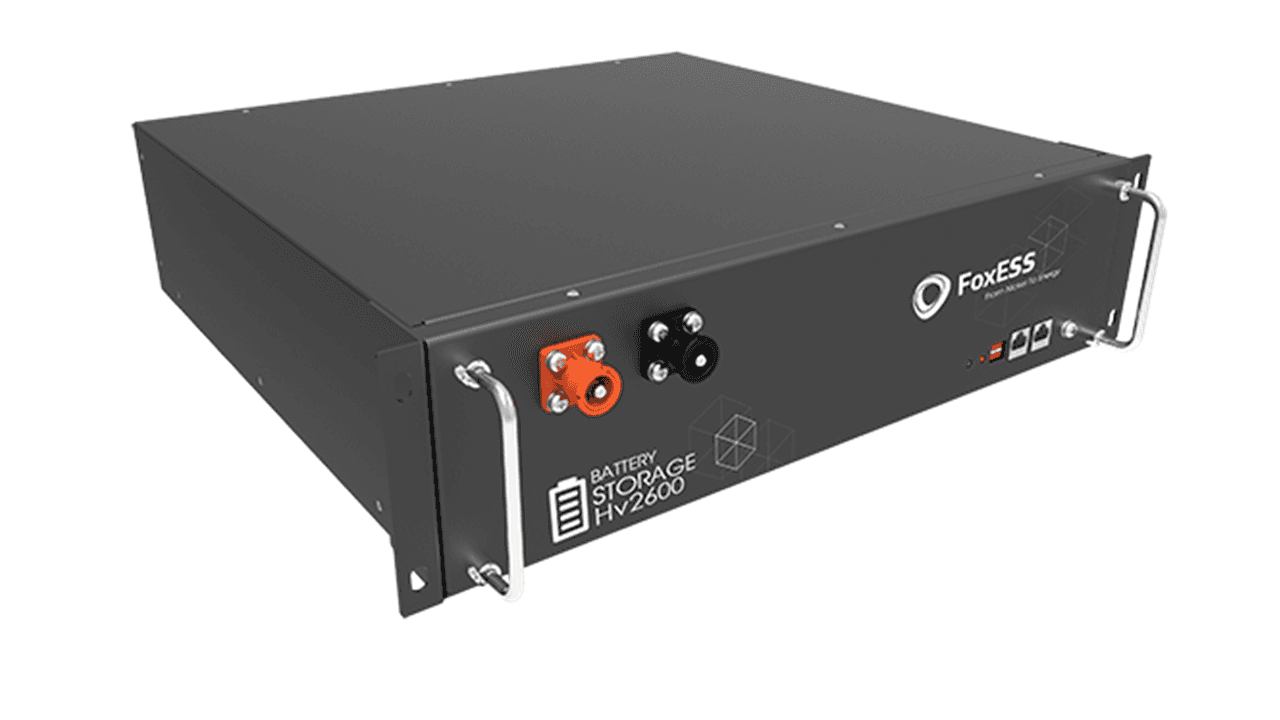

Fox HV2600 V1 2.6kWh High Voltage Battery
FE-HV2600-V1
D Version batteries, compatible with C version batteries
Fox HV2600 Datasheet
Fox HV2600 Manual
Fox HV2600 Warranty
*Collections are not permitted due to health & safety regulations*
HV battery for use with AIO Fox ESS All In One 1ph and 3ph Inverters.
Maximum of 8 batteries on a charger. Extension cable required for 5+ batteries to allow a second stack.

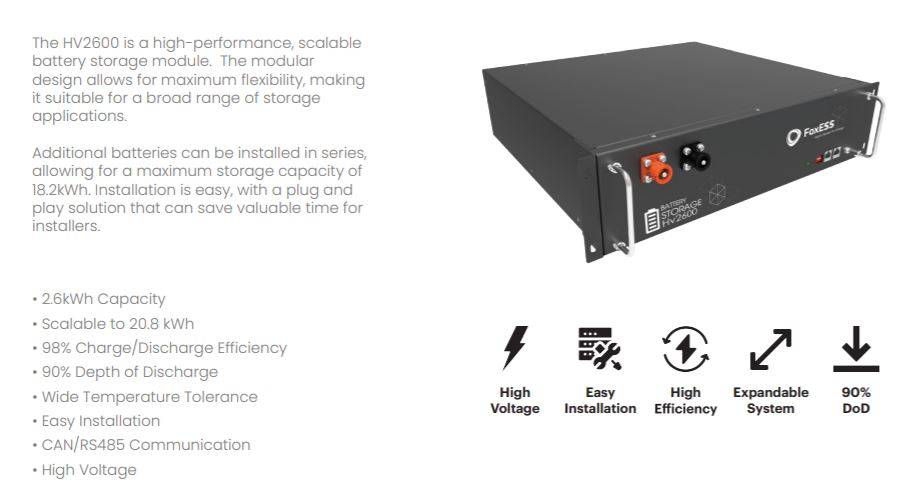

The HV2300/2600 are high-performance, scalable battery storage modules. The modular design allows for maximum flexibility, making them suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 18.2kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
Weight: 30.2 kg
Battery Type: Lithium Ion
Nominal Energy: 2560 Wh
Depth of discharge: 90.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use): 2560 W
Maximum Discharge Rate (5 Minutes): 3000 W
Surge Discharge Rate (15 Seconds): 3600 W
Maximum Charge Rate (5 Minutes): 2560 W
