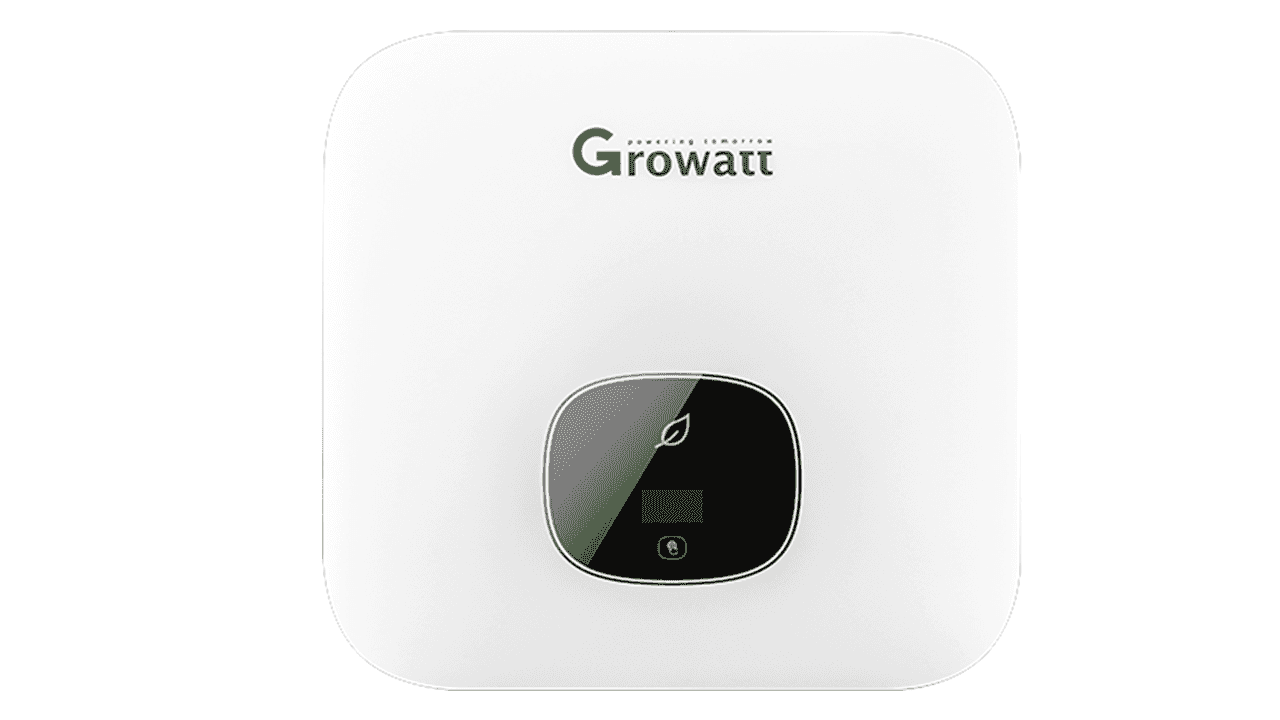

GROWATT MIN 3000TL X Dual MPPT with DC Solar Inverter
#2: GROWATT-MIN3000-TL-X-DC
GROWATT MIN 3000TL Data Sheet
GROWATT MIN 3000TL Manual
GROWATT MIN 3000TL Warranty
GROWATT MIN 3000TL G100 Certificate
*Collections are not permitted due to health & safety regulations*
Rating: 3,000W
Phases: 1
Growatt inverters are designed for specifically for residential rooftop applications. With a maximum efficiency of 98% and wide input voltage range, this robust inverter is perfect for most domestic installs
Leading - edge Technology
· Double MPPT Tracker, MPPT tracking accuracy more than 99.5%
· Max. Efficiency 98%, European Efficiency 97%
· Transformerless design and high power density, offer lighter and
· more convenient installation
· Comes with10 years warranty
· Power factor continuously adjustable
· Flexible communication connection
· Comply with European, Asia-Pacific safety regulations
Built in DC isolator.
UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. It means all installers will need to register an "Installer Code" for using the Growatt monitoring platform. This installer code can be provided to the end user by the installer to allow for the viewing of your customers devices from your installer-level monitoring account.
Please note: In order to achieve anti reflux function on TL-X and TL-XE range, you must use Meter SPM-E. Using a CT clamp to try and achieve this is not possible. Please contact us for more details.
Rated Power: 3,000 W
Min PPT Voltage: 100 V
Max PPT Voltage: 500 V
DC Startup Voltage: 100 V
DC Shutdown Voltage: 80 V
Max Input Voltage: 500 V
Max DC Power: 4,200 W
Max AC Power (5 Minutes): 3,000 W
Surge AC Power (1 Second): 3,000 W
Max DC Current: 27 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 2
Euro Efficiency: 97.1 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 10 years
