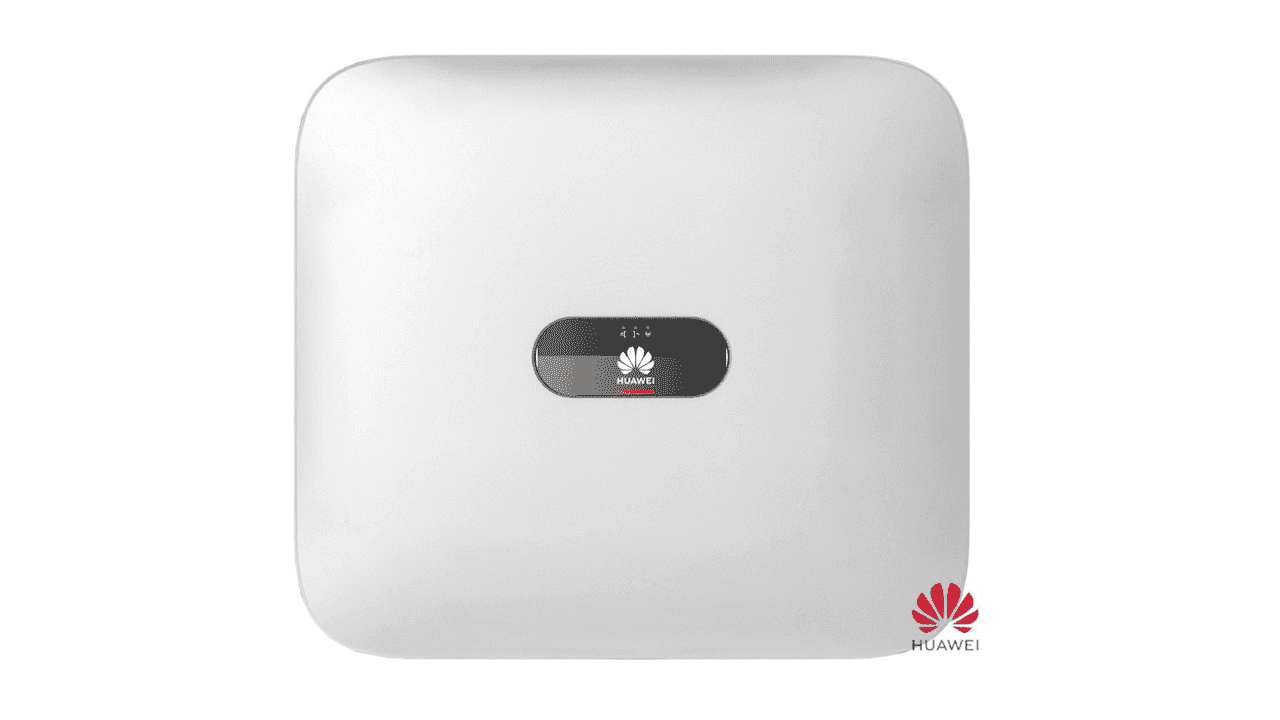

Huawei SUN2000 10KTL 10kW 3phase hybrid inverter M1 range

#1: SUN2000-10KTL-M1

SUN2000 Data Sheet

SUN2000 Installation Manual

SUN2000 9 Warranty

SUN2000 G99 Certificate

*Collections are not permitted due to health & safety regulations*

The Smart Energy Center of Huawei is the perfect solution where three phase power is needed with the added benefit of having a HV battery connected as well.

Product Features

• Wide range on PV input
• 2 x MPPT inputs
• Single inverter with Three Phase output
• High voltage battery input
• Type II AC and DC surge protection
• Arc Fault detection8
• Anti-islanding protection
• Integrated PID recovery
• Compatible with Huawei Smart ESS battery 5KWh to 30KWh
• IP65

2019 Inter Solar Award Winner



Supplier Part No: 01074311-001
Weight: 17 kg
Rated Power: 10,000 W
Min PPT Voltage: 140 V
Max PPT Voltage: 980 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 140 V
Max Input Voltage: 1,100 V
Max DC Power: 15,000 W
Max AC Power (5 Minutes): 11,000 W
Surge AC Power (1 Second): 11,001 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 2
Euro Efficiency: 98.1 %
Transformer: HF
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
