Pylon Low Voltage Solar Battery Communication Hub Solar Battery Storage

Pylon Low Voltage Solar Battery Communication Hub Solar Battery Storage

Please view our battery storage information page for sizing and selecting the right battery storage system for you

#2: PYLON-LV-HUB Storage Systems - Communication Module
#4: LVHUBA1C0MX115R1

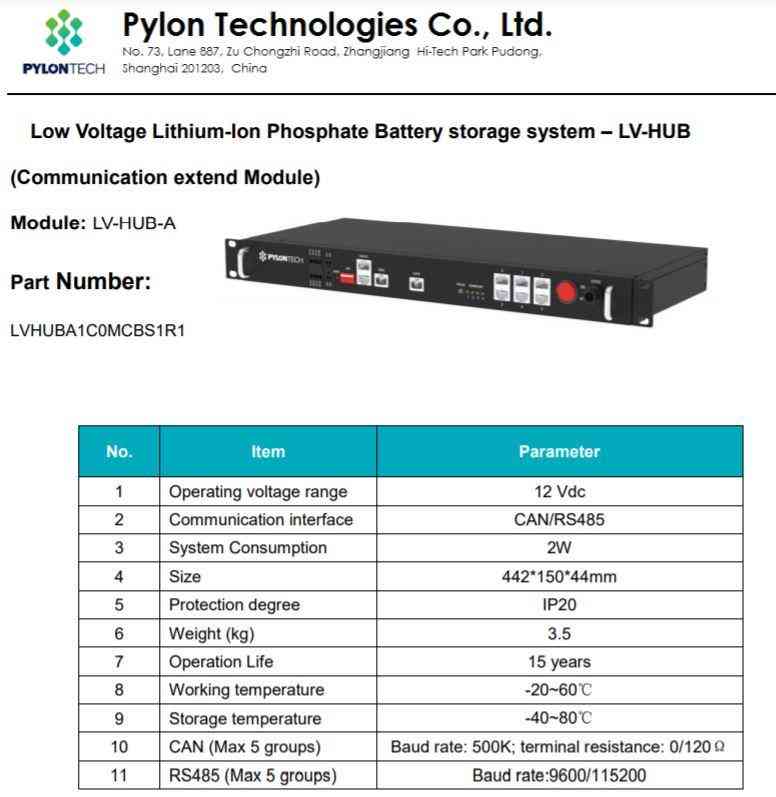

Pylon Low Voltage Datasheet

Pylon Low Voltage Installation Manual

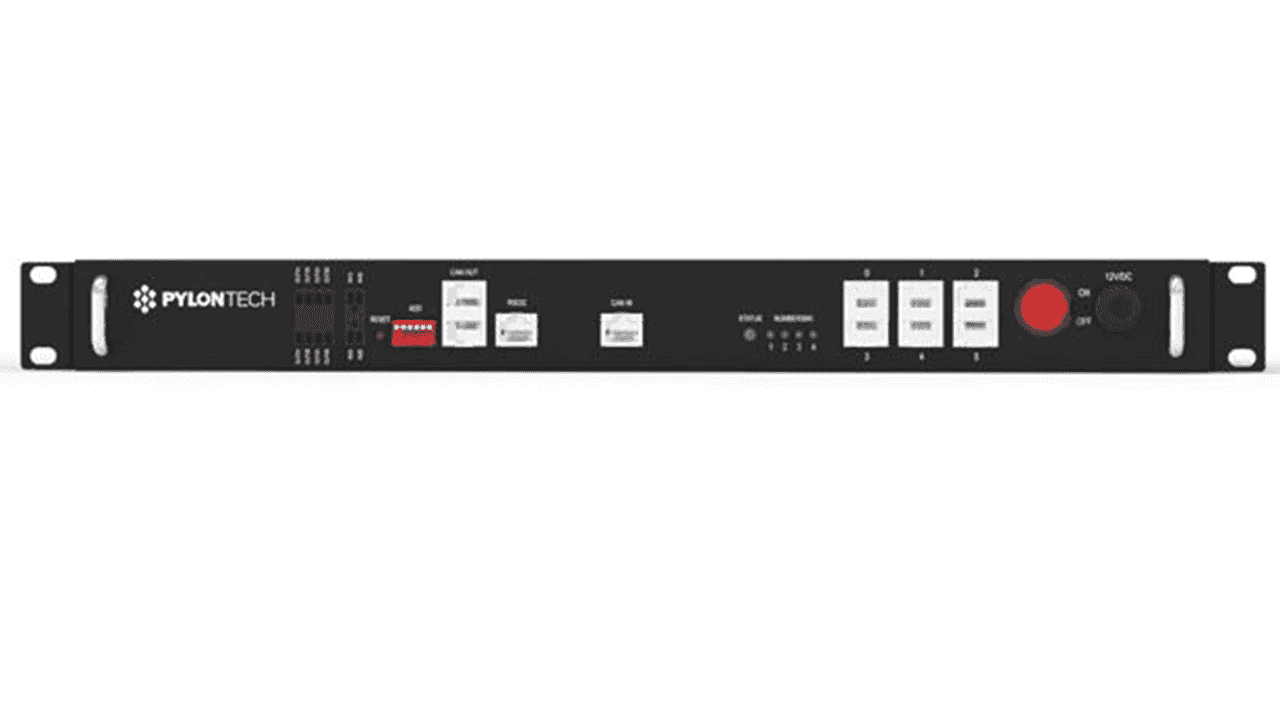

LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection.

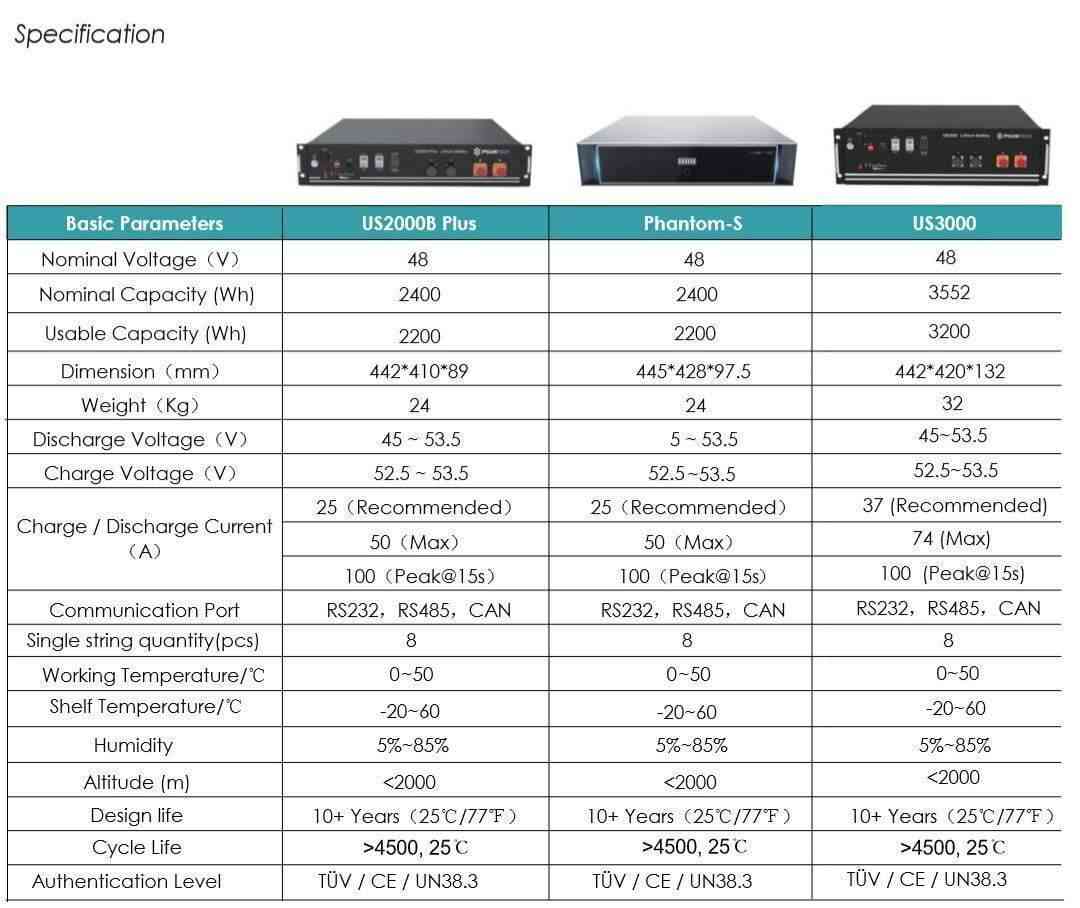

The LV-Hub can manage up to 5 groups of 8 x Pylon US2000B Plus or 8 x Pylon US3000B battery modules for up to 140kWh's of storage.

The LV-Hub is required when 9 or more solar batteries are used with a system that requires communication.

NOTE: For warranty purposes, the LV-Hub is considered a component of the solar battery system and is therefore covered by the battery warranty terms.
