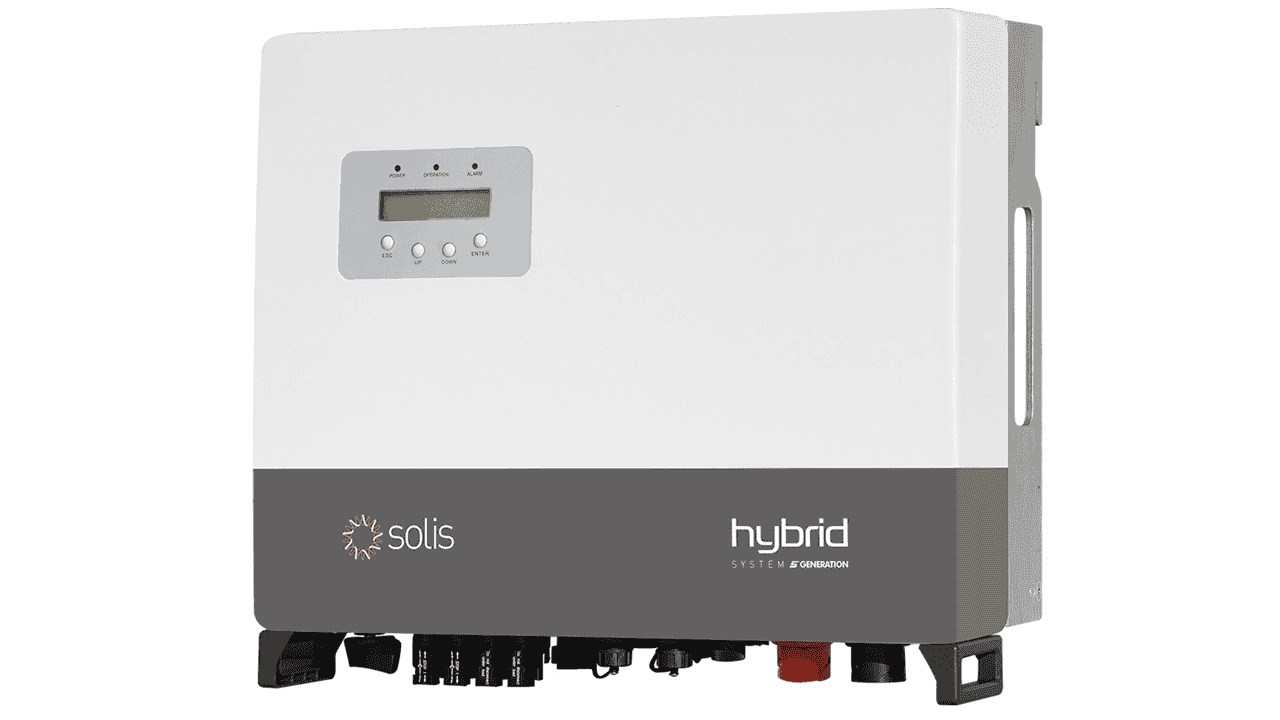

Solis 8kW 3phase High Voltage Hybrid 5G Inverter

Compatible with Pylontech Force-H2 High Voltage batteries:

Pylontech Force-H2 7.10Kw

Pylontech Force-H2 10.66Kw

Pylontech Force-H2 14.21Kw

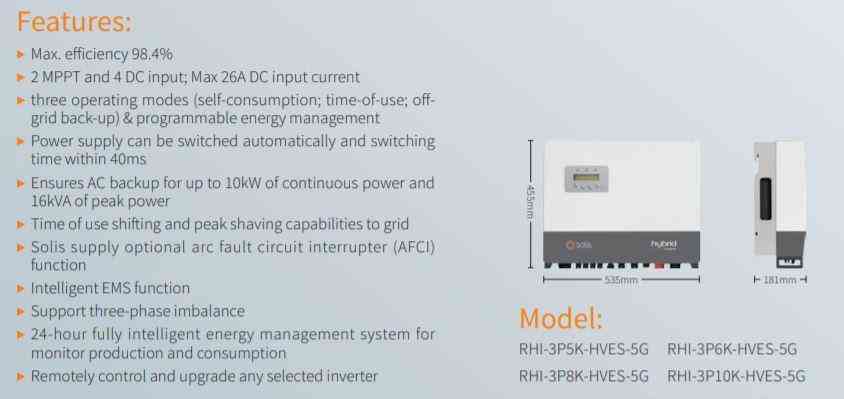

 Product features

• 2 x MPPT and 4 DC input at max of 26A
• 3 x operation modes Self-consumption; time of use; off-grid backup
• 4 models range from 5KW to 10 KW output as well as backup
• Supporting Li-ion high voltage batteries ranging from 160 to 600VDC
• Time of use shifting peak shaving capabilities to grid
• Intelligent EMS function
• Supporting three-phase imbalance
• 24-hour monitor and management system
• Remotely control and upgrade any selected inverter

Supplier Part No: Solis-RHI-3P8K-HVES-5G-DC

Weight: 25.1 kg

Rated Power: 8,000 W

Min PPT Voltage: 160 V

Max PPT Voltage: 850 V

DC Startup Voltage: 160 V

DC Shutdown Voltage: 160 V

Max Input Voltage: 1,000 V

Max DC Power: 12,800 W

Max AC Power: 8,000 W

Surge AC Power (15 Seconds): 16,000 W

Max DC Current: 39 A

Max DC Inputs: 6

Has DC Fuses: 0

Connector: MC4

Included Connectors: 6

Euro Efficiency: 97.7 %

Transformer: HF

MPPT Quantity: 2

Has Integrated DC Switch: Yes

Warranty: 5 years
