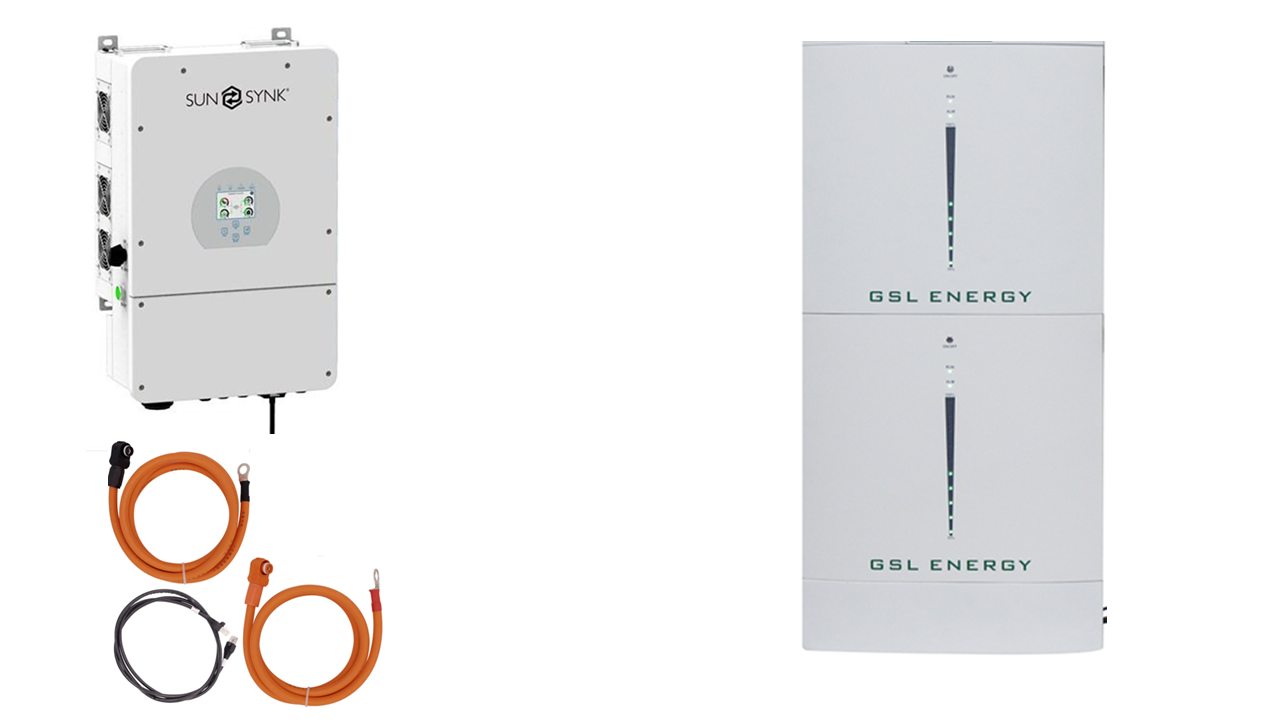

Sunsynk ECCO 3.6Kw On & Off grid Hybrid solar & wind Inverter with GSL 20.48kwh battery kit
#1: SUN-3.6-ECCO-GSL-20.48 Storage Systems - Hybrid Inverter
Sunsynk 3.6Kw Data Sheet
Sunsynk 3.6Kw Installation Manual
Sunsynk 3.6Kw Warranty
Sunsynk 3.6Kw G99 Certificate
The SunSynk 3.6kW AC ECCO 7kWp Inverter is the next generation of super hybrid inverter with a 7000W MPPT and a rated AC output of 3.68 resulting in a system that can generate sufficient energy in Winter months to offset usage and charge a connected battery. The inverter boasts additional features such as;
Dual MPPT design
Compatible with Lithium-ion batteries and Lead Acid batteries
Up to 50kWh battery pack
5yr warranty as standard
IP65 rated
Anti-islanding protection
Fully programmable power export
Automatic switching from Grid-Tied to Off-Grid mode
Up to 16 units with the same firmware can be paralleled
Rated Power: 3,600 W
Min PPT Voltage: 125 V
Max PPT Voltage: 500 V
DC Startup Voltage: 150 V
DC Shutdown Voltage: 125 V
Max Input Voltage: 500 V
Max DC Power: 7,000 W
Max AC Power (5 Minutes): 3,960 W
Surge AC Power (1 Second): 5,400 W
Max DC Current: 22 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 99.9 %
Transformer: None
MPPT Quantity: 2
Has Integrated DC Switch: Yes
GSL 10.24kwh battery
Product Performance
1. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
2. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
3. Compatible to mains voltage or generator power, auto restart while AC is recovering.
4. Users can flexibly match battery capacity, standard battery packages or external batteries.
5. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
6. Integrated design, Easy transportation and installation.
7. Overload/Over temperature/short circuit protection.
9. Our products are CE/ ROSH/ VDE/ MSDS/ UN38.3/ IEC approved, meeting various certification requirements for different countries.
Product Features
- Safety:
LiFePO4 LFP Battery, stable and safe.
Module, pack, system, triple protection.
- Simple:
Modulat design, single person can carry and install it.
Plug and play, 30 min quick installation.
Space saving: 0.15 sqm foot print.

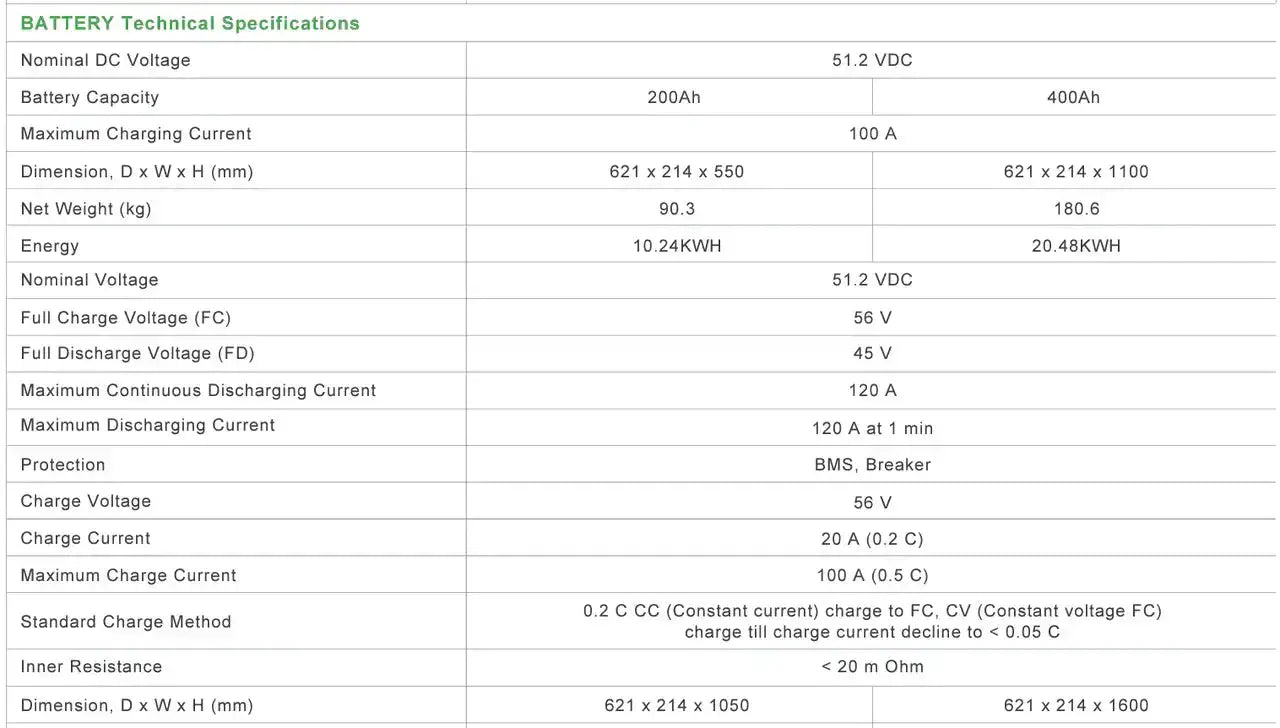

Dimensions per battery: 621 x 214 x 550
Net weight per battery: 93kg
Max charging current: 100A
Max continuous charging current: 120A
Battery capacity: 200AH
