#1:FE-HV-EC-A-4-2.9-11.6
Fox ECS2900 Datasheet
Fox ECS2900 Manual
Fox ECS2900 Warranty
Compatible with Fox HV chargers only available on our Fox HV main page

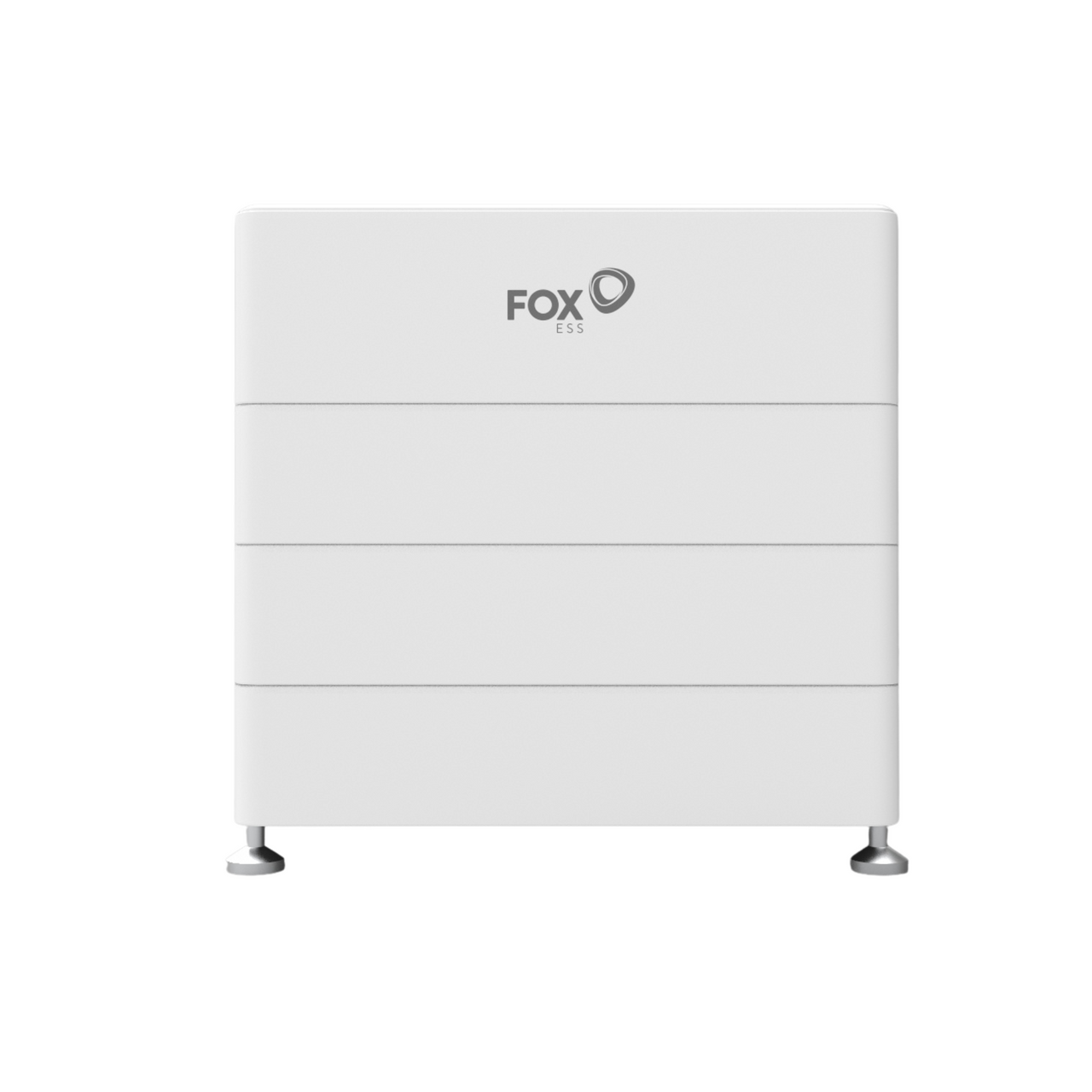

Maximise your energy independence with the Fox ECS 2.88kWh High Voltage Battery Pack. Designed for flexibility and high performance, this modular system allows you to scale your energy storage up to 20.16kWh, making it ideal for residential and commercial solar applications.
Modular & Scalable: Start with a 2.88kWh master battery and expand with up to 3 additional 2.88kWh slave units, reaching a maximum of 20.16kWh.
High-Performance Lithium Ion: 90% Depth of Discharge for optimal energy usage and efficiency.
Easy Installation: Plug-and-play design saves time for installers and simplifies deployment.
Flexible Communication: Integrated CAN/RS485 protocols for seamless connection with hybrid inverters and energy management systems.
Wide Operating Conditions: Designed to operate reliably across varied temperatures.
High Voltage System: Supports safe, high-current applications with continuous discharge capability.
Battery Type: Lithium Ion
Nominal Energy: 2,880Wh per module
Depth of Discharge: 90%
Voltage: 52V
Continuous Discharge Rate (Normal Use): 1,440W
Maximum Discharge Rate (5 Minutes): 2,880W
Surge Discharge Rate (15 Seconds): 3,000W
Maximum Charge Rate (5 Minutes): 2,880W
Weight: 32.4 kg
1 x FE-HV-ECM-2900-4A2C Fox ECS 2.88kWh HV Battery (Master) – V2.0 Connector A
3 x FE-HV-ECS-2900-4A2C Fox ECS 2.88kWh HV Battery (Slave) – V2.0 Connector A
Why Choose Fox ECS Battery Pack?
Perfect for energy-conscious homes and commercial setups, the Fox ECS modular batteries offer easy scalability, high efficiency, and robust performance. Whether you’re upgrading an existing solar system or building a new energy storage setup, this high-voltage system ensures reliable power and long-term flexibility.
