#1:FE-HV-EC-A-3-2.9-8.7
Fox ECS2900 Datasheet
Fox ECS2900 Manual
Fox ECS2900 Warranty
Compatible with Fox HV chargers only available on our Fox HV main page

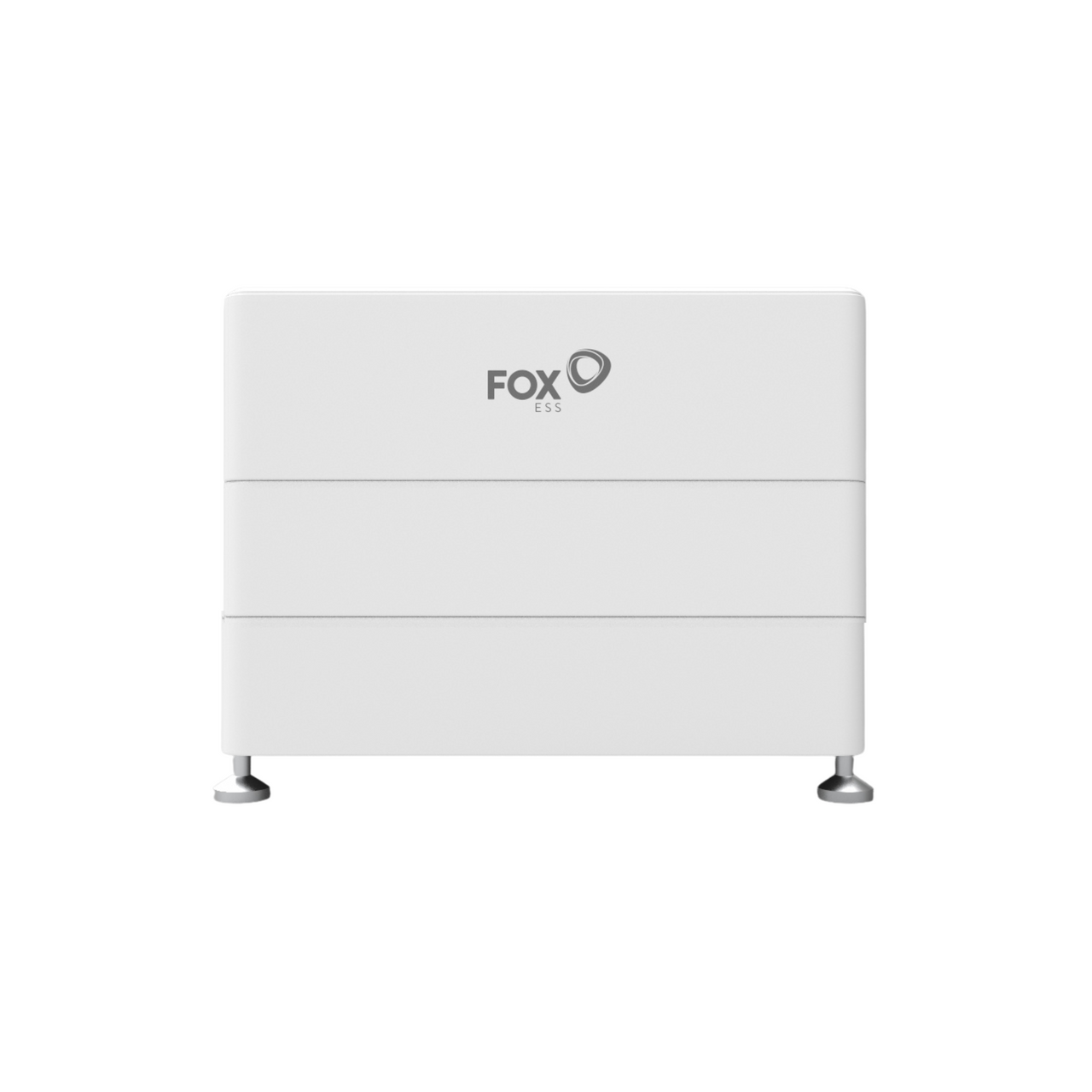

The Fox ECS 2.88kWh HV Battery Stack is a high-performance, modular energy storage solution designed for residential and small commercial solar installations. Its scalable design allows you to expand your system as your energy needs grow, providing flexibility, reliability, and efficiency.
This kit includes:
1 x Fox ECS 2.88kWh HV Battery (Master) – V2.0 Connector A (FE-HV-ECM-2900-4A2C)
2 x Fox ECS 2.88kWh HV Battery (Slave) – V2.0 Connector A (FE-HV-ECS-2900-4A2C)
High Performance: Reliable, scalable energy storage for solar systems
Modular Design: Easily add additional batteries to expand capacity up to 20.16kWh
Plug and Play Installation: Saves valuable time for installers
Depth of Discharge: 90% for maximum usable energy
Wide Temperature Tolerance: Ensures performance in diverse climates
Communication Options: CAN/RS485 supported for integration and monitoring
High Voltage System: Optimized for efficient energy storage and discharge
Battery Type: Lithium Ion
Nominal Energy: 2,880 Wh per module
Voltage: 52 V
Continuous Discharge Rate (Normal Use): 1,440 W
Maximum Discharge Rate (5 Minutes): 2,880 W
Surge Discharge Rate (15 Seconds): 3,000 W
Maximum Charge Rate (5 Minutes): 2,880 W
Weight: 32.4 kg per module
Scalable Capacity: 2.88kWh per module, up to 20.16kWh with additional modules
Minimum Modules Required: 2 (1 Master + 1 Slave)
Maximum Modules per Stack: 7 (1 Master + 6 Slaves)
Professional Installation Required: Must be installed by a qualified electrician
Compatibility: Fully compatible with other ECS series batteries
✅ The Fox ECS 2.88kWh HV Battery Stack is perfect for homeowners and small businesses looking to expand their solar energy storage with a flexible, plug-and-play solution.
