Fox Energy Cube HV ECM2900, 11.52kWh 1x Master 4x Slave
Please note these are V2 batteries and only compatible with other V2 Cube batteries
#1: FE-HV-EC-5-2.9-14.5
Fox Cube Data Sheet
Fox Cube User Manual
Fox Cube Warranty
Suitable for charging from the grid such as Economy 7 & Octopus Go. For detailed explanation of how to maximize Economy 7 essential information to work out which battery storage options is best for you please visit - Understanding Economy 7
Compatible with Fox HV chargers only available on our Fox HV main page
*Collections are not permitted due to health & safety regulations*

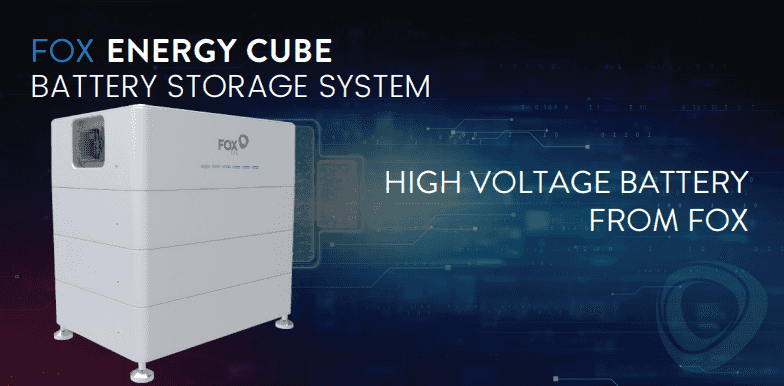

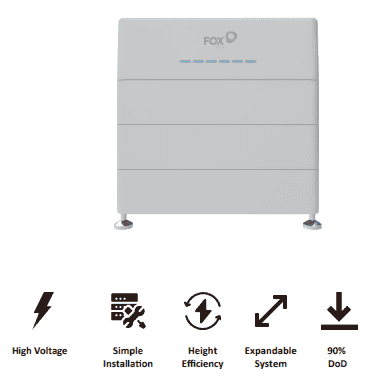

Energy cube is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
-
2.88kWh Capacity
- Scalable to 20.16kWh
- 90% Depth of Discharge
- Wide Temperature Tolerence
- Easy Installation
- CAN/RS485 Communication
- High Voltage
The quick & easy install feature allows for more ECM2900 battery modules to be added post installation.
Weight: 164.3 kg
Battery Type: Lithium Ion
Nominal Energy: 14400 Wh
Depth of discharge: 90.00 %
Voltage: 288 V
Continuous Discharge Rate (Normal Use): 14400 W
Maximum Discharge Rate (5 Minutes): 14400 W
Surge Discharge Rate (15 Seconds): 18720 W
Maximum Charge Rate (5 Minutes): 14400 W
