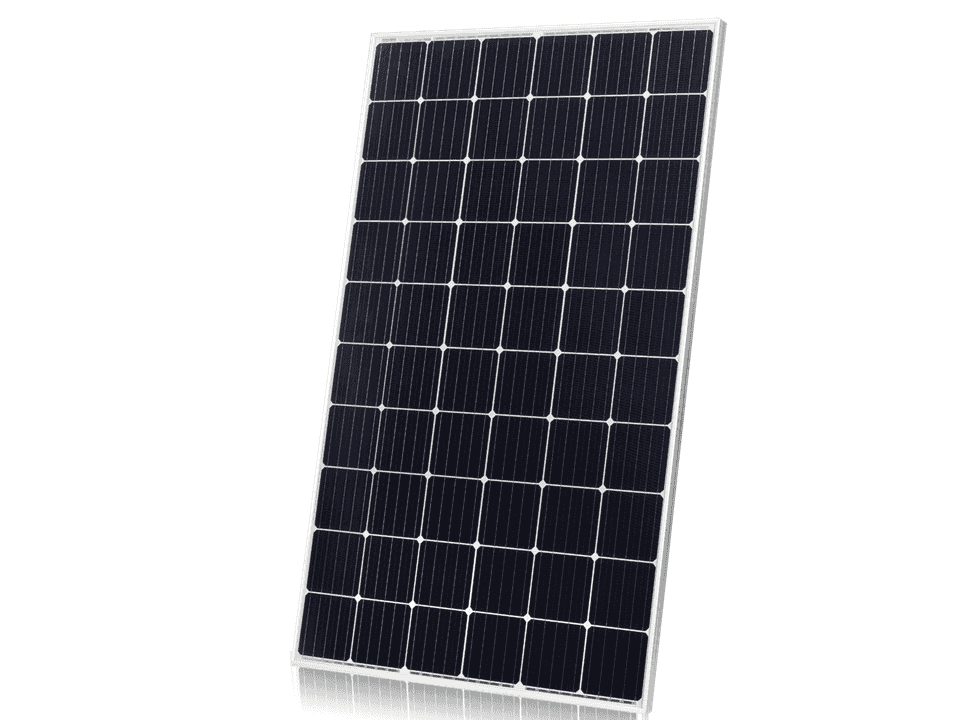

380W Canadian Solar Super High Power Mono PERC HiKU with MC4-EVO2 Solar panel

380W Canadian Solar  Super High Power Mono PERC HiKU with MC4-EVO2
#1: CS3L-380MS-MC4-F30 Panels - Monocrystalline

 Canadian Solar 380W Data Sheet

 Canadian Solar 380W Manual

 Canadian Solar 380W Warranty

 Canadian Solar 380W MCS Certificate

Please check minimum order quantity prior to ordering as this varies depending on the specific panel.

Minimum order for this panel: 3 panels.

For orders with no minimum please visit our Single Panels page.

Other panels have a minimum order of 3 - 5 panels.

Automatic discount for 14+: 4%/panel
Automatic discount for 22+: 5%/panel
Automatic discount for 36+: 6%/panel

Automatic discount for 72+: 7%/panel

Automatic discount for 144+: 8%/panel

Please note: volume discount is not in addition to trade discounts.

*Collections are not permitted due to health & safety regulations*

- Rating: 380W
- Efficiency: 20.5%
- Width: 1,048mm
- Height: 1,765mm

HiKu CS3L MS Series

Super High Efficiency PERC Module (CS3L-350|355|360|365|370MS)

With proprietary mono wafer and cell technologies Canadian Solar have developed an extraordinary module rage. Combining the best technology and design, it also reduces LCOE and installation costs.

The Super High HiKu mono modules with dimensions of 1765 x 1048 x 35mm, have the following unique features:

MORE RELIABLE (THANKS TO HALF CUT CELL TECHNOLOGY):

- Lower internal current, lower hot spot temperature
- Cell crack risk limited to smaller area of the cell
- Innovative symmetrical module design means better shading tolerance
- Heavy snow load up to 5400Pa and increased wind load up to 3600Pa

Supplier Part No: CS3L-380MS-MC4-F30

Weight: 20.5 kg

Rated Power: 380 W

MCS Reference: BABT8767-36

Length: 1,765 mm

Width: 1,048 mm

Depth: 35 mm

VMPP: 34.5 V

IMPP: 11.02 A

Isc: 11.68 A

Voc: 41.2 V

Temp. Coefficient (Mpp): -0.35 %

Clamp position on panel: Long and short side

Connector Type: EVO2

Efficiency: 20.5 %
